LISTA DEI COMPONENTI

7

6-2

Command THC

(

Robotizzato)

Manuale di istruzioni

Modulo di controllo THC

Numero indice

Codice articolo

Descrizione

Quantità

053018

THC Control Module

1

1

002261

Enclosure, THC Control Module

1

129067

Heatsink SA, THC Control Module

1

2

004705

Heatsink, THC

3

005186

Module, Power Entry, Fused Filter

1

4

008971

Fuse, T,3.15 Amp H 250V 5 mm x 20 mm

2

5

229070

Power Source, 130W (see Fig. 6-2)

1

6

041511

PCB Assy, Motor Driver (see Fig. 6-2)

1

7

128407

PCB Assy, Control (see Fig. 6-2)

1

081061

Firmware, Real-Time Microprocessor

1

081062

Firmware, Interface Microprocessor

1

8

123254

Cable, THC 50/C Ribbon (not shown)

1

9

129066

Harness Wiring THC (not shown)

1

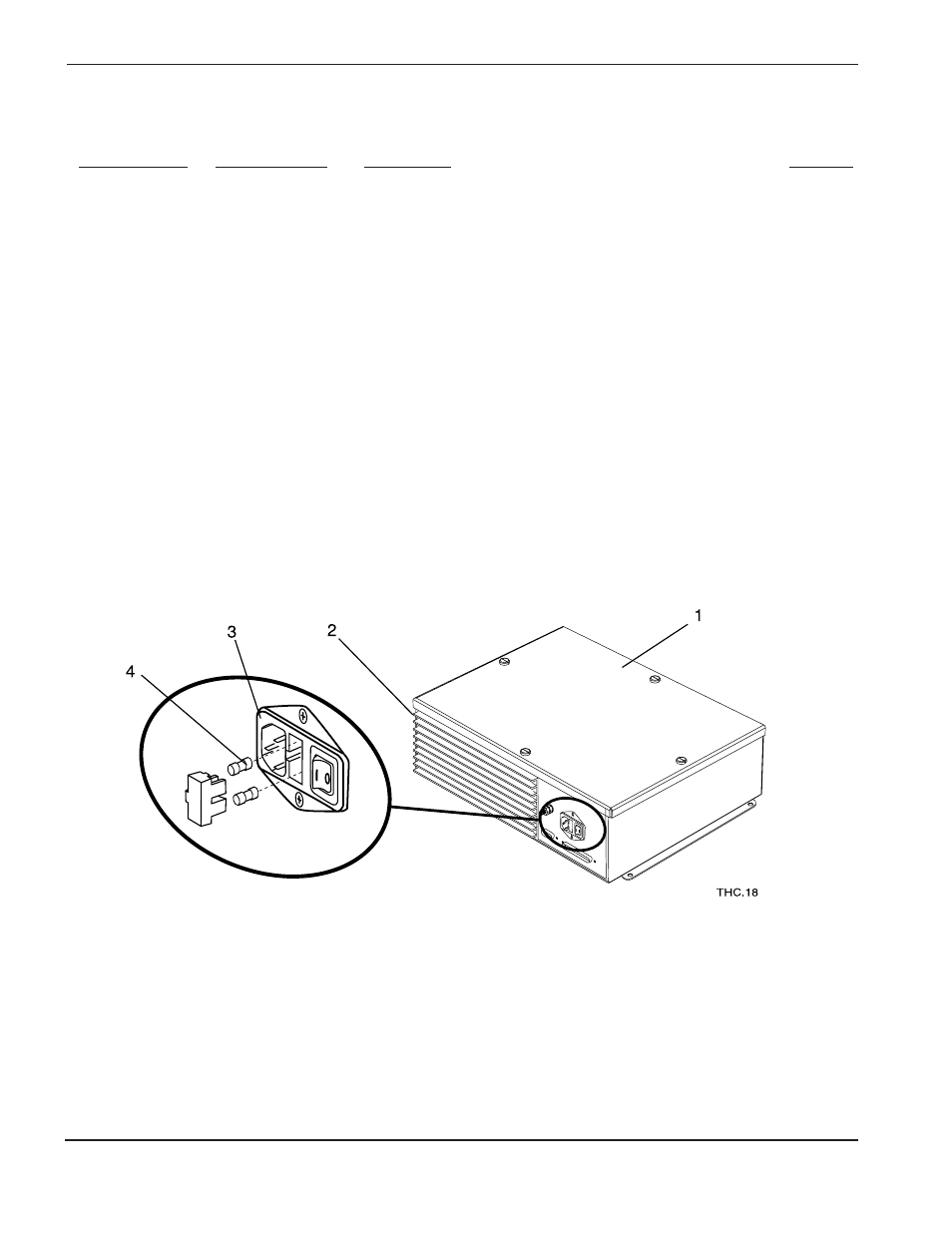

Figura 6-1

Esterno del modulo di controllo THC
