1
2

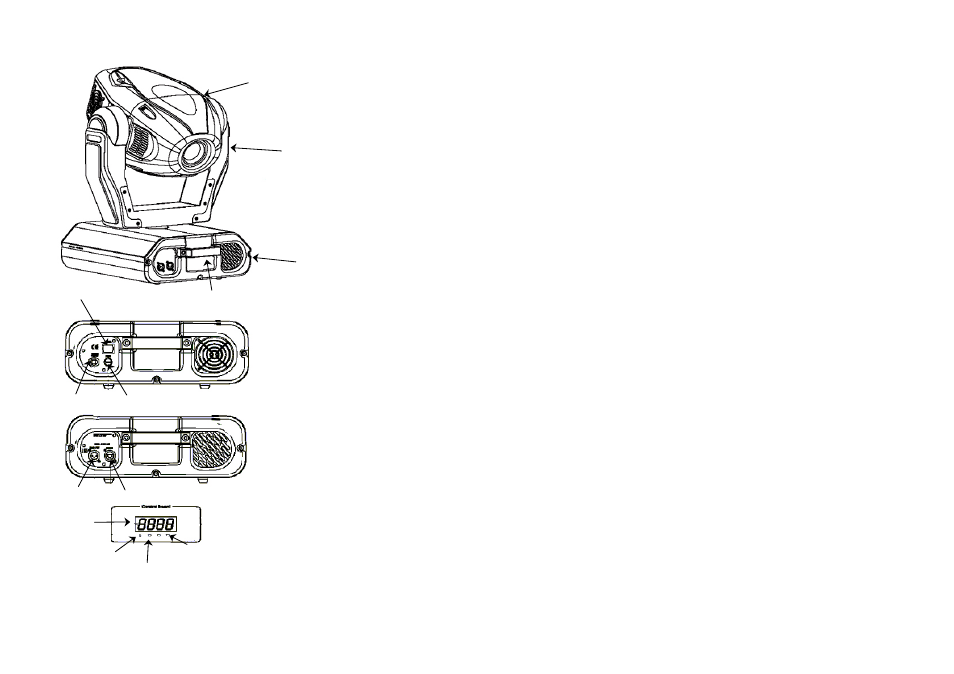

1 - testa del proiettore
2 - bracci
3 - base
4 - maniglia
3
5
4
5 - pulsante accensione
6 - portafusibile
7 - cavo potenza
7
6
8 - DMX input
9 - DMX output
8 9
10
11
12
13
10 - display
11 - enter
12 - mode
13 - Up/down
4
CLEANING AND MAINTENANCE
CAUTION: Disconnect from mains before starting maintenance operation.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth.
Never use alcohol or solvents.
CAUTION: the lenses has to be replaced when it is obviously damaged, so that its
function is impaired, e.g. due to cracks or deep scratches.
The objective lens will require weekly cleaning as smoke-fluid tends to building up
residues, reducing the light-output very quickly. The cooling-fans should be cleaned
monthly. The interior of the fixture should be cleaned at least annually using a vacuum-
cleaner or an air-jet. The dichroic colour-filters, the gobo-wheel and the internal lenses
should be cleaned monthly.
To ensure a proper function of the gobo-wheel, we recommend lubrication in six month
intervals. The quantity of oil must not be excessive in order to avoid that oil runs out
when the gobo-wheel rotates.
Maintenance and service operations are only to be carried out by authorized dealers.
REPLACING THE FUSE
Only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
PROCEDURE:
1. Unscrew the fuse holder on the rear panel with a fitting screw driver from the
housing
2. Remove the old fuse from the fuse holder.
3. Install the new fuse in the fuse holder.
4. Replace the fuse holder in the housing and fix it.
Should you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be replaced by
authorized dealers.
Should you have further questions, please contact your dealer.
