APPENDICE B
10/15/98
HD3070
(consolle del gas manuale) Manuale di istruzioni
b-5
Elenco parti
Parte
Articolo
numero
Descrizione
Codice
Q.tà
078049
Assembly, timer-counter
1
1
001391
Panel, front
1
2
027274
Counter, self powered LCD
CT3
1
3
027275
Meter, elapsed time, self powered LCD
CT2
1
4
027274
Counter, self powered LCD
CT1
1
5
005161
Switch, pushbutton, SPDT
PB3
1
6
005161
Switch, pushbutton, SPDT
PB1
1
7
001513
Panel, rear
1
8
008175
Receptacle, CPC 13-9 standard sex
5X1
1
8
008176
Pin, 24-20 AWG TYPE III + CRP
4
001068
Enclosure, timer-counter (not shown)
1

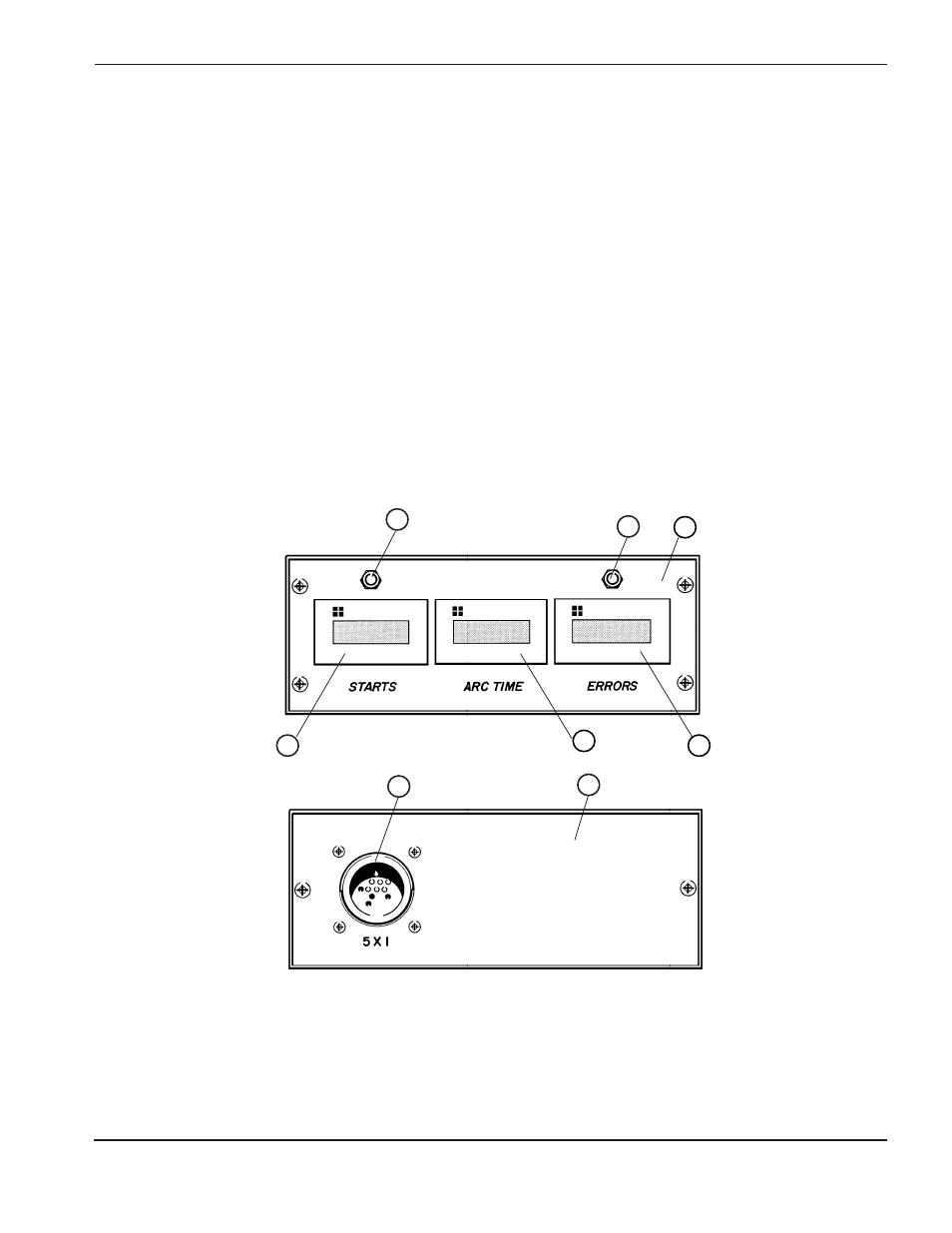

Figura b-4
Ubicazioni dei componenti del timer-contatore
1
2
3
4
5
6
7
8
