Navigation at the menu level
Activate display
backlighting Press any key
The display backlighting is activated.
There is an option under 'Display Settings' in the SETUP menu to set the display back-
lighting so that it is on all the time or off all the time.
Automatic deacti-
vation of display
backlighting /
choose 'NOW'
menu item If no key is pressed for 2 minutes,
-
the display backlighting switches off automatically and the inverter goes to the 'NOW'
menu item (assuming the display backlighting is set to automatic).
- The selection of the 'NOW' menu item can happen from any position on the menu level
with the exception of the item 'Standby' on the Setup menu.
- The amount of energy currently fed in is displayed.
Open menu level
The menu items
-
NOW displays real-time values
- LOG data recorded today, during the current calendar year and since the inverter was
first commissioned
- GRAPH Day characteristic displays a plot showing the power output during the day.
The time axis is scaled automatically. Press the 'Back' key to close the display
- SETUP Setup menu
- INFO Information about the device and the software
1

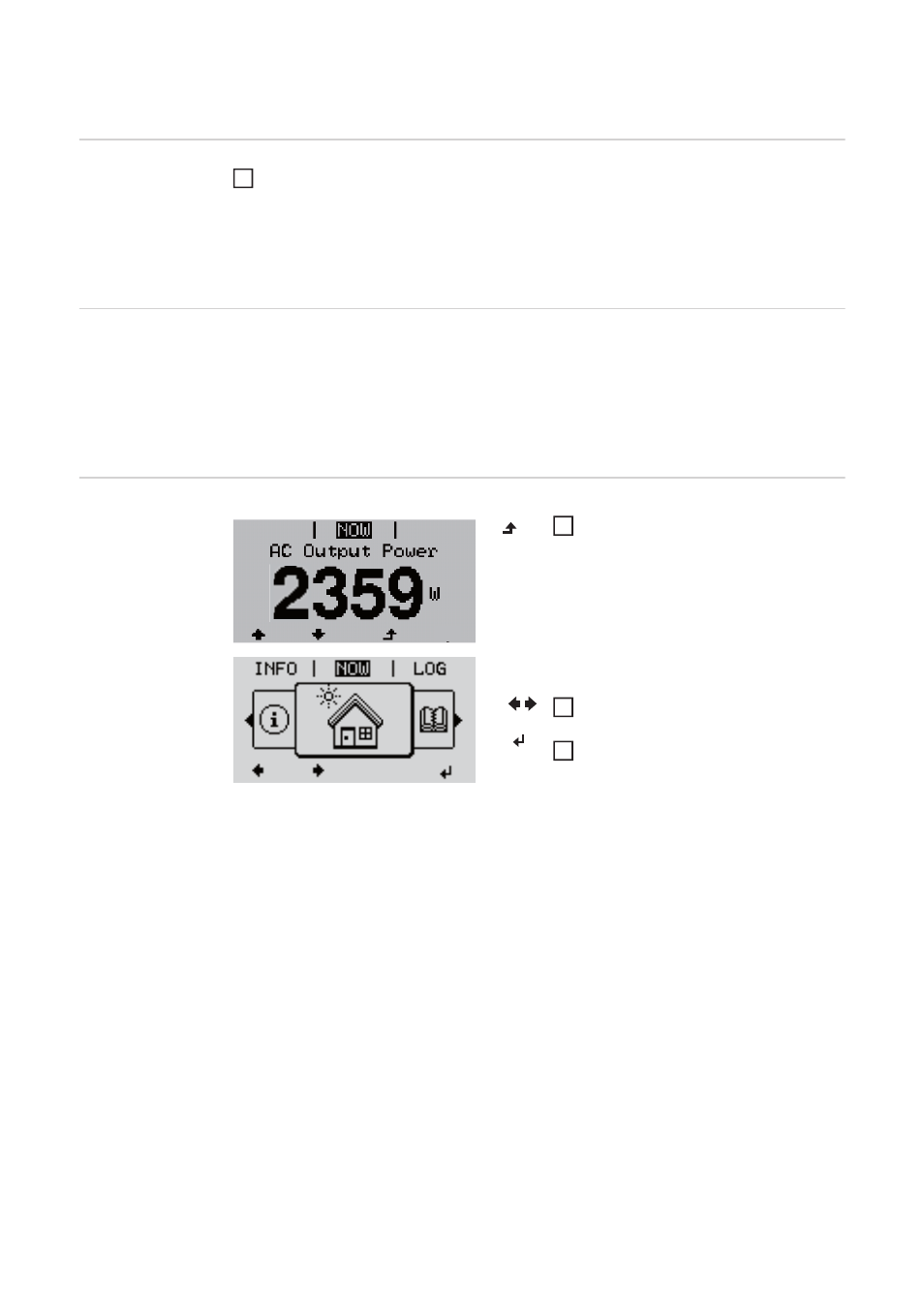

Press the 'Menu' key
The display switches to the menu level.
Use the 'Left' or 'Right' keys to select
the desired menu item
Press the 'Enter' key to select the de-
sired menu item
1
2
3
