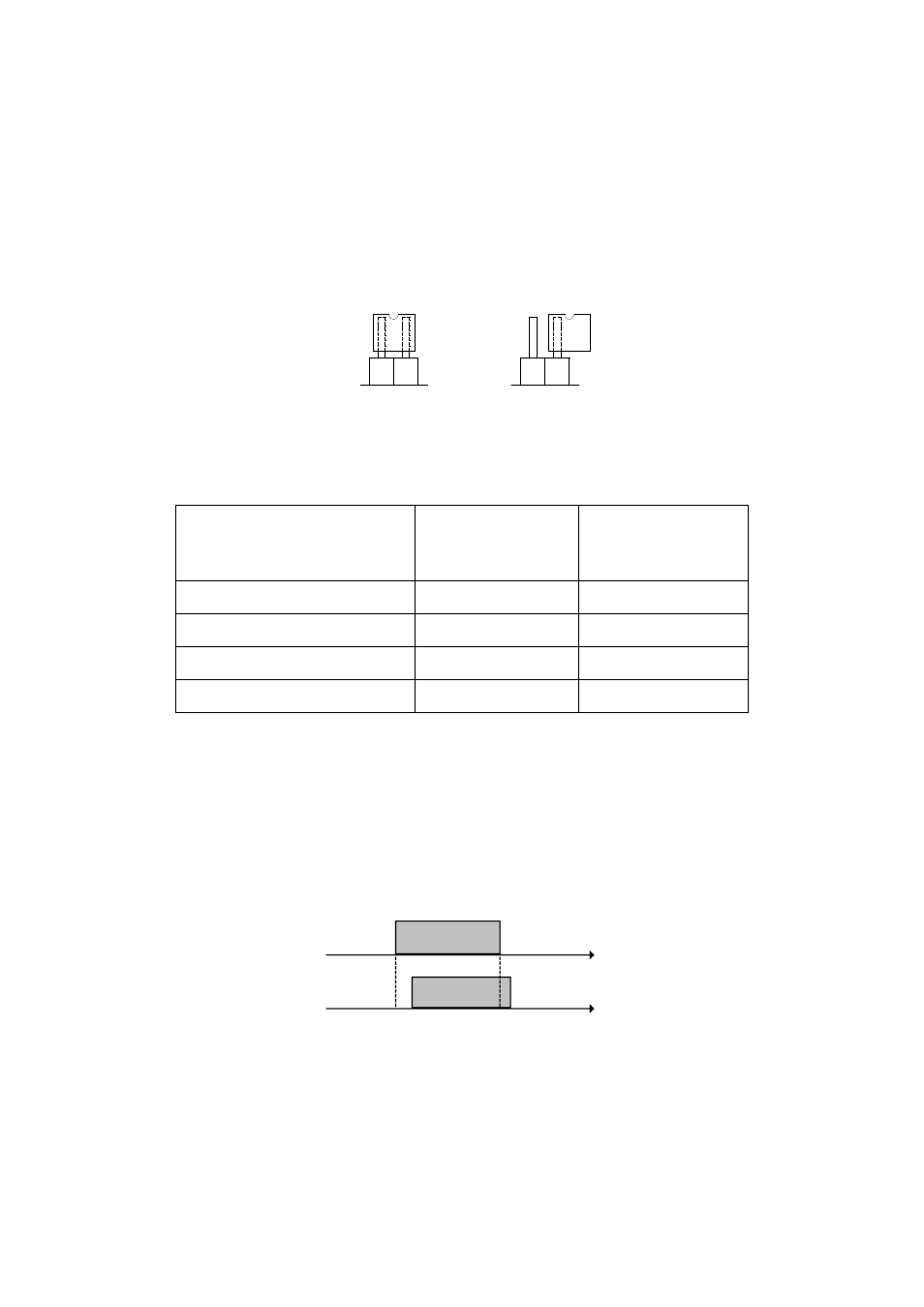

CONFIGURATION OF DELAY TIMES ON THE CONTACTS PORT
Another configuration inserts a relay switching delay of approximately 8s from the
activation of the command signal. The delay may be useful for filtering brief unwanted
signals such as sudden mains blackouts, switching to bypass due to distorting loads,
etc. The default configuration and the association between the signals and jumpers are
shown in Table 2. The delay is active when the jumper is closed.
Command
Associated
Jumper
Default
Configuration
Battery Working
JP1 Closed
Battery Low
JP2 Open
Bypass
JP3 Open
Alarm
JP4 Open
Table 2
N.B. The activation of the delay effects both the closing and opening of the relay, as
shown in the figure.
NON MONTARE CLOSED OPEN
2-pin Jumper (JP1…JP4): graphic example of various setting possibilities
Command
Relay contact
T T1
