cut a hole in the
non-combustible
barrier only for
the hose
front of the
compartment
emoved for clarity
non-combustible
barrier
necessary under
the barbecue

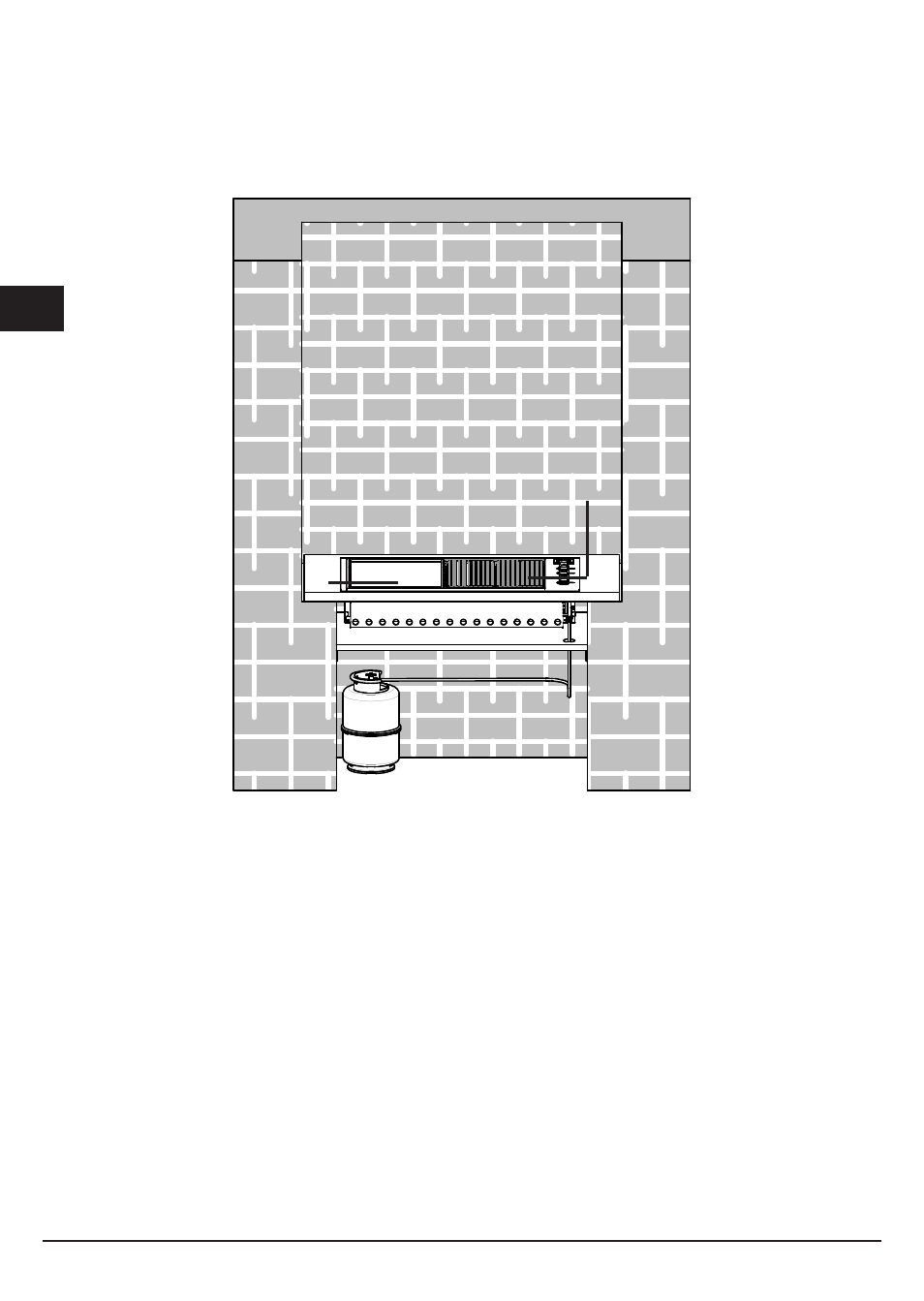

The LPG cylinder may be connected inside the object-holder compartment of barbecue
only if it has the dimensions shown in the guidelines. The safe use of a cylinder inside the
object-holder compartment of the barbecue depends on several factors:
A) The base of the cylinder must be properly inserted between the plates and be horizontal
on the base panel.
Dimensions of the cylinder
Max height 465 mm
Width 289 mm - (rectangular section) or 318 mm (circular section) maximum B) Capacity of
the cylinder max 6 kg
There are several models of cylinders with approved dimensions (2).
WARNING: if the LPG cylinder purchased does not have the required dimensions, do not
attempt to connect it inside the object-holder compartment. Fix the cylinder to the bracket
or rest it on the floor. Failure to follow these instructions could damage the hose and cause
fire or explosion, with serious injury or death and property damage.
