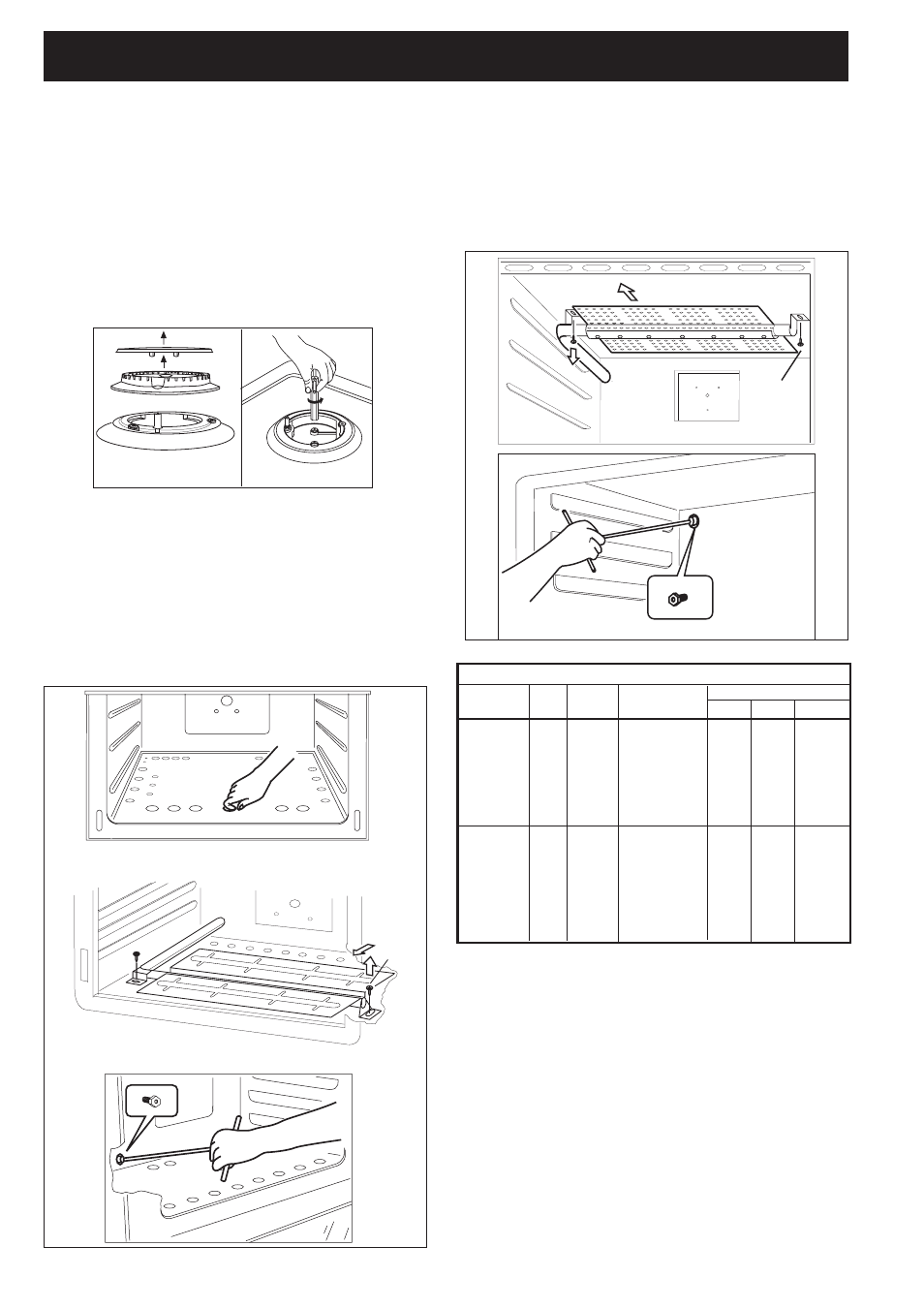

GAS ADJUSTMENT
I
f the appliance is foreseen to operate with a type of gas dif-
ferent from the suitable supply gas, proceed as follows:
change the injectors, adjust the minimum flow of the bur-
ners, change the push-on connector.
In order to change the work-top injectors, it is necessary to
act as follows: remove the grids, remove burners and fla-
me-spreaders (see fig.A), change the injector (see fig.B)
and replace it with another one suitable for the new type of
gas (see table D). Re-assemble everything in the opposite
direction, paying attention to place the flame-spreader in
the right way on the burner.
Oven burner
To change the oven injector, it is necessary to act as fol-
lows: open the oven door, remove the lower side of the
oven (see fig.C), unscrew screw C and disassemble the
oven burner (see fig.D). Change the injector (see fig.E) and
replace it with another one suitable for the new gas type
(see table D).
Re-assemble everything in the opposite direction, paying
attention to place the burner in the right way on its rear slot.
Grill burner
To change the grill injector, it is necessary to act as fol-
lows: open the oven door, unscrew screw C and disas-
semble the grill burner (see fig.F). Change the injector
(see fig.G) and replace it with another one suitable for
the new gas type (see table D). Re-assemble everything
in the opposite direction, paying attention to place the
burner in the right way on its rear slot.
TAB. D
Kind of gas mbar Nozzle Burner Power Watt Consum.
mm Position-type max. min. max.
123 Rapide 2800 680 267 l/h
NATURAL 20 97 Semi rapide 1650 450 157 l/h
77 Auxiliary 1000 400 95 l/h
145 Triple crown 4 0 00 l/h
150 Oven 4300 1000 410 l/h
135 Grill 3300 298 l/h
G.P.L. 30 83 Rapid 2800 680 204 g/h
BUTANO 28 65 Semi rapide 1650 450 120 g/h
PROPANO 37 50 Auxiliary 1000 400 73 g/h
Triple crown 0 1 00 g/h
100 Oven 4300 1000 313 g/h
90 Grill 3300 241 g/h
