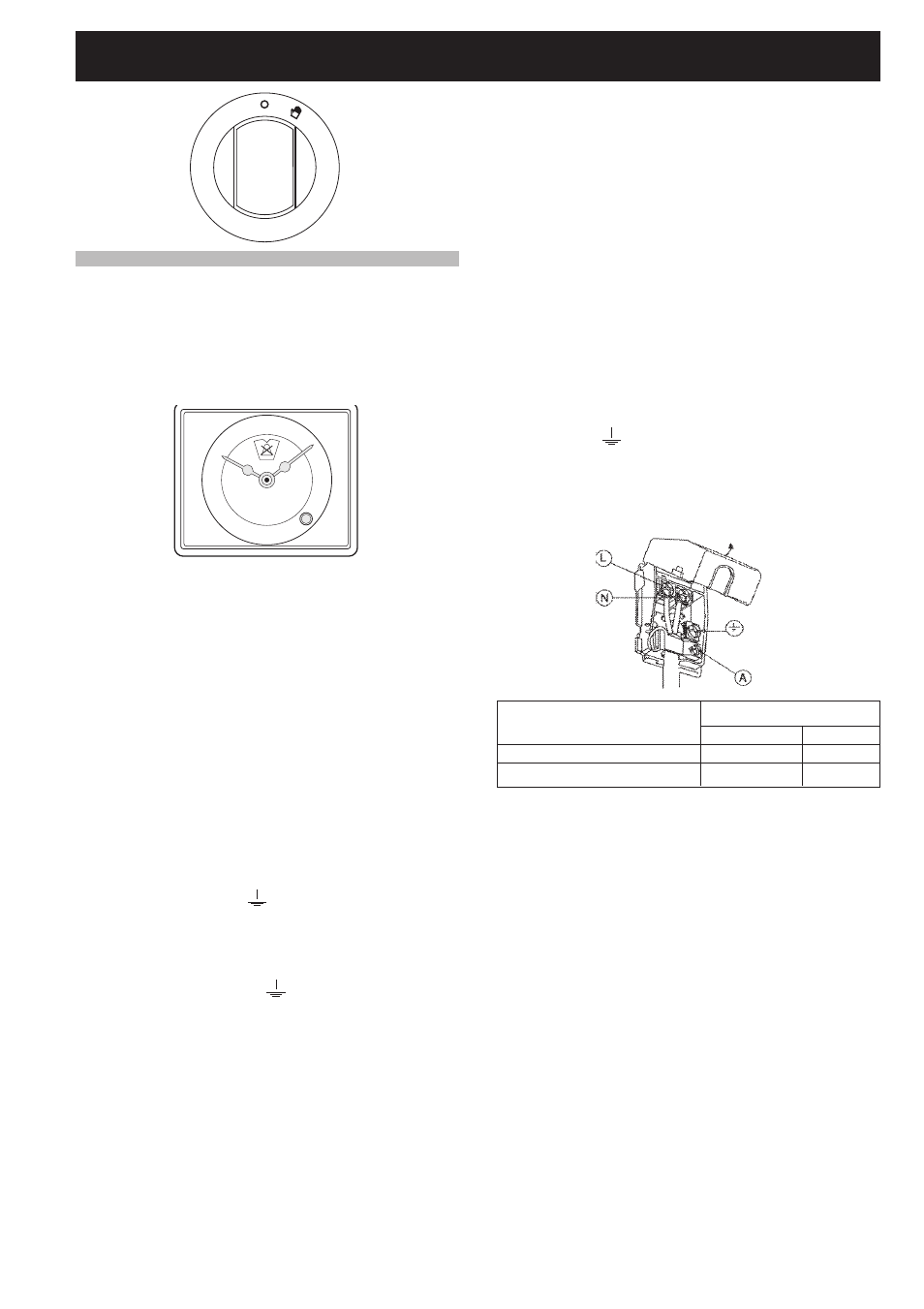

Fig. 9
PCI “Campani” TR 259 Analogic
Setting the clock
Press the control knob and turn clockwise.
Alarm programme adjustement
Turn the knob clockwise without pressing it in. At the
end of the programmed time an alarm will sound. To
cancel it, turn the knob to the bell.
ELECTRICAL CONNECTION
Connection of the applianec to the power mains should
be done by a licensed electrician familiar with local sa-
fety regulations.
This appliance must be earthed by law. Before
connecting the appliance to the electrical supply,
check that the earth system in your house is wor-
king correctly.
Check that unit voltage and power, marked on the ra-
ting plate applied on the appliance, are correct for the
supply. It is necessary that the feeding network is pro-
tected by a powerful switch able to disconnect comple-
tely the network with a contacts separaton of at least 3
mm. Be sure that the arth wire green/yellow is not
interrupted by the switch.
Important: the wires in the mains lead are so coloured:
- green/yellow = earth
- blue
= neutral “N”
- brown = live “L”
The wire coloured green/yellow must be connected to
the terminal in the plug which is marked with letter ‘E’
or by the earth symbol or coloured green or
green/yellow. The wire coloured blue must be connec-
ted to the terminal which is marked with letter “N” or co-
loured black. The wire coloured brown must be con-
nected to the terminal which is marked with letter “L” or
coloured red.The supply cable must not come into con-
tact with any component the temperature of which ex-
ceeds the ambient temperature by 50°C. If a plug is
used for connection, the plug to be connected to the
supply cable and the socket to which it is connected
must be of the same type (conforming to the stan-
dards). Easy acces to the plug or the switch is ensured
once the appliance is installed. Ensure that there is suf-
ficient cable allowed for any subsequent removal of the
unit. If the plug is non-rewireable, pay attention to
the following points: the plug must never be cut by
the supply cord. There is shock haward when this plug
is inserted in a socket-outlet elsewhere in the house.
Never use the plug without the fuse cover fitted. Refer-
ring to the pertinent spare parts, apply to the applian-
ce’s supplier. The manufacturer declines all respon-
sibility for any damage to persons or things cau-
sed by failure to observe the rules indicated above.
REPLACEMENT OF THE CABLE
In case the cable is damaged, replace it in accordance
with the following instructions:
- open the box of the supply board as described on the
picture below;
- unscrew screw “A” fixing the cable;
- replace the cable with one of the same lenght and in
accordance with the features described on the table;
switch the appliance off, and close the gas tap
- the ‘green-yellow” earth wire must be connected to
the terminal “ “ and it must be about 10 mm longer
thean the live wires;
- the “blue” neutral wire must be connected to the ter-
minal marked with letter “N”;
- the live wire must be connected to the terminal mar-
ked with letter “L”.
CARE AND MAINTENANCE
Before cleaning the appliance, disconnect the gas
general tap and unplug the appliance or discon-
nect power at the main circuit breaker of the elec-
trical system.
Do not clean the appliance surfaces when still hot.
IMPORTANT
Periodically check the external gas connection ho-
le and replace it when it shows any sign of deterio-
ration. Do not attempt to repair the gas hose under
any cincumstances.
ENAMELLED SURFACES
Clean with a damp sponge using soap and water.
Grease can be easily removed using hot water or a
specific cleansing agent for enamelled surfaces. Do not
use abrasive cleansers. Do not leave any acid or alka-
line substances (lemon juice, vinegar, salt, etc.) on the
enamel. Clean the parts in stainless steel with specific
cleansers for stainless steel surfaces.
These detergents must be applied using a soft cloth.
