6
EN
TTL 4-A / TTL C4-A - TTP 4-A / TTP C4-A - TTW 4-A / TTW C4-A
The TTx 4-A and TTx C4-A modules deliver top quality sound for demanding events indoors or outdoors, and for small-to-medium sized areas� Their
design provide the audio engineer with tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint�
Offering all the advantages of line array technology, such as high directivity, long range and uniform level distribution, they are the preferred sound
set-up for high quality suspended systems both in vertical and horizontal arrangement�
Each model offers a different coverage depending on the horn mounted on the speaker�

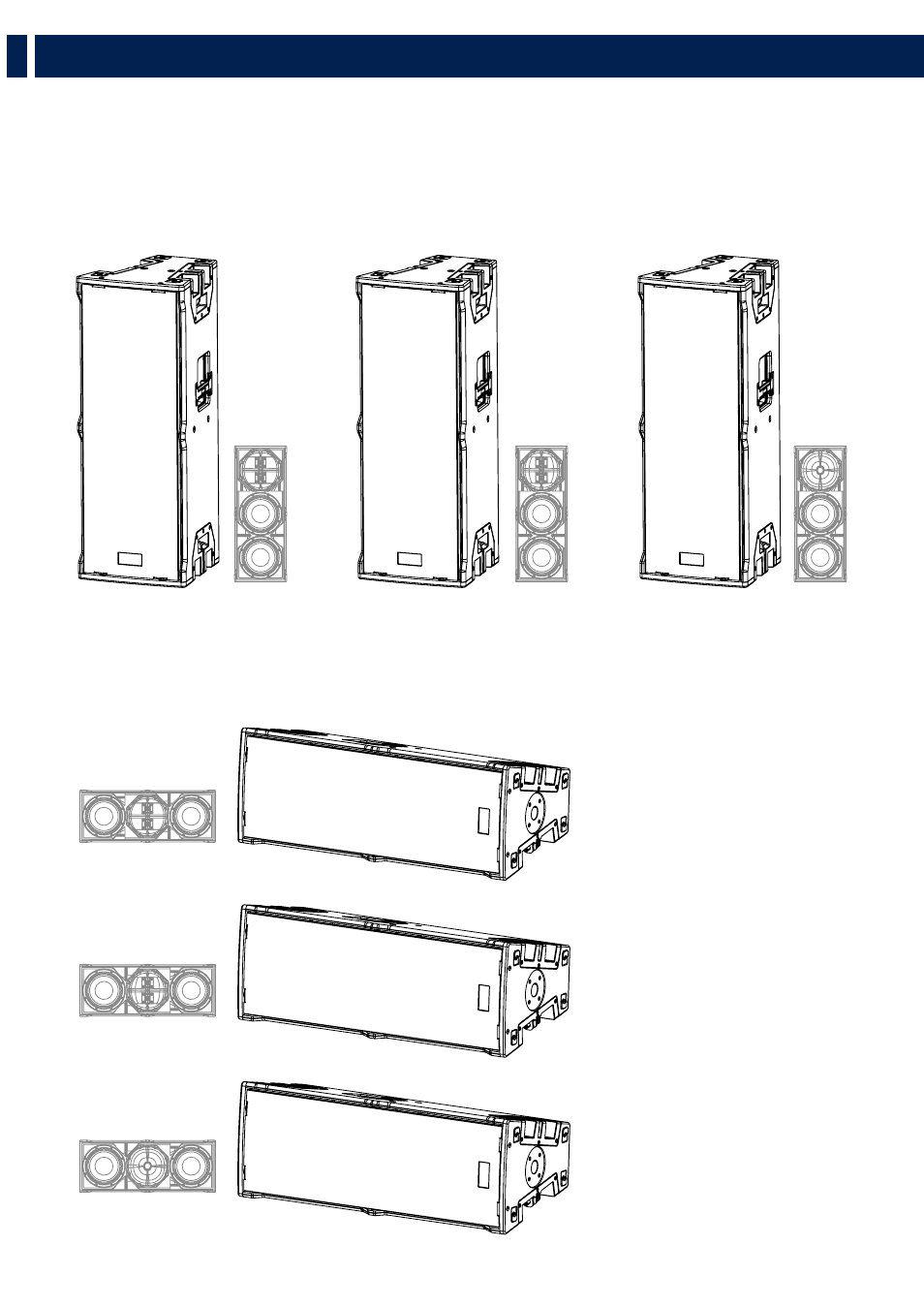

2. DESCRIPTION
TTL 4-A
Single or coupled vertical use
Horizontal coverage angle: 100°
Vertical coverage angle: 25°
TTW 4-A
Single vertical use
Horizontal coverage angle: 100°
Vertical coverage angle: 50°
TTP 4-A
Single or coupled vertical use
Horizontal coverage angle: 60°
Vertical coverage angle: 25°
TTL C4-A
Vertical or horizontal array use
Horizontal coverage angle: 100°
Vertical coverage angle: 25°
TTP C4-A
Vertical or horizontal array use
Horizontal coverage angle: 60°
Vertical coverage angle: 25°
TTW C4-A
Vertical or horizontal array use
Horizontal coverage angle: 100°
Vertical coverage angle: 50°
