PART 2 | 9. SUSPENDED CONFIGURATIONS
TTL C4-A, TTP C4-A, TTW C4-A
LIFTING BRACKET HORIZ. H-PLATE TT4
With the accessory LIFTING BRACKET HORIZ� H-PLATE TT4 it is possibile to suspend 2 or 3 TTL C4-A or TTP C4-A linked vertically side by side�

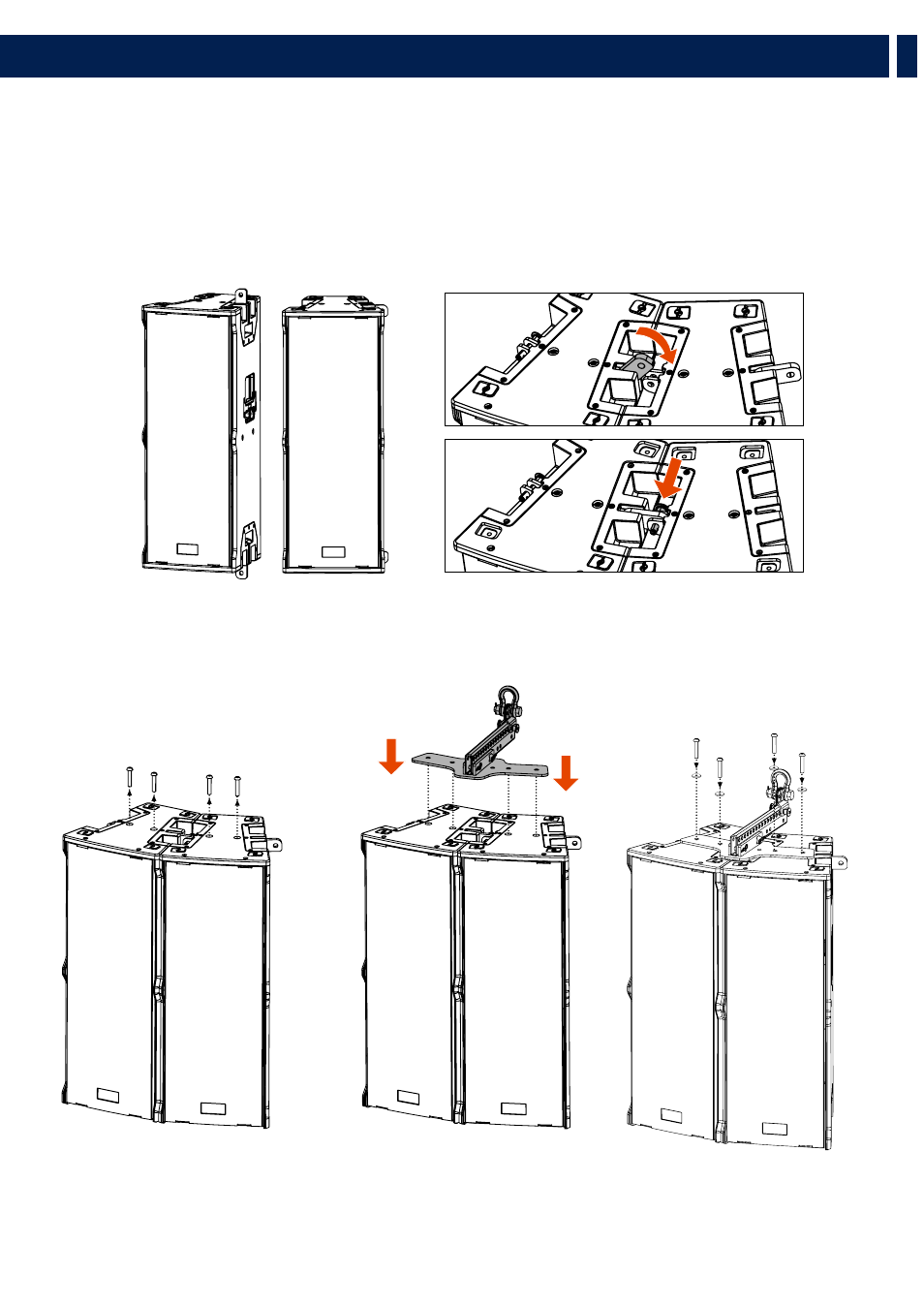

LINKING 2 SPEAKERS FOR VERTICAL SUSPENSION
Place two TTL C4-A or TTP C4-A side by side and link them together by lowering the two lateral brackets (upper and lower) and securing them
with the quick lock pin�
Unscrew the two M10 bolts on top of each speaker (four total) and place the H-PLATE on top�
Then fix the H-PLATE with 4xM10 screws and washers�
