TTL 4-A, TTP 4-A, TTW 4-A
PART 1 | 7. SUSPENDED CONFIGURATIONS
WALL MOUNTING

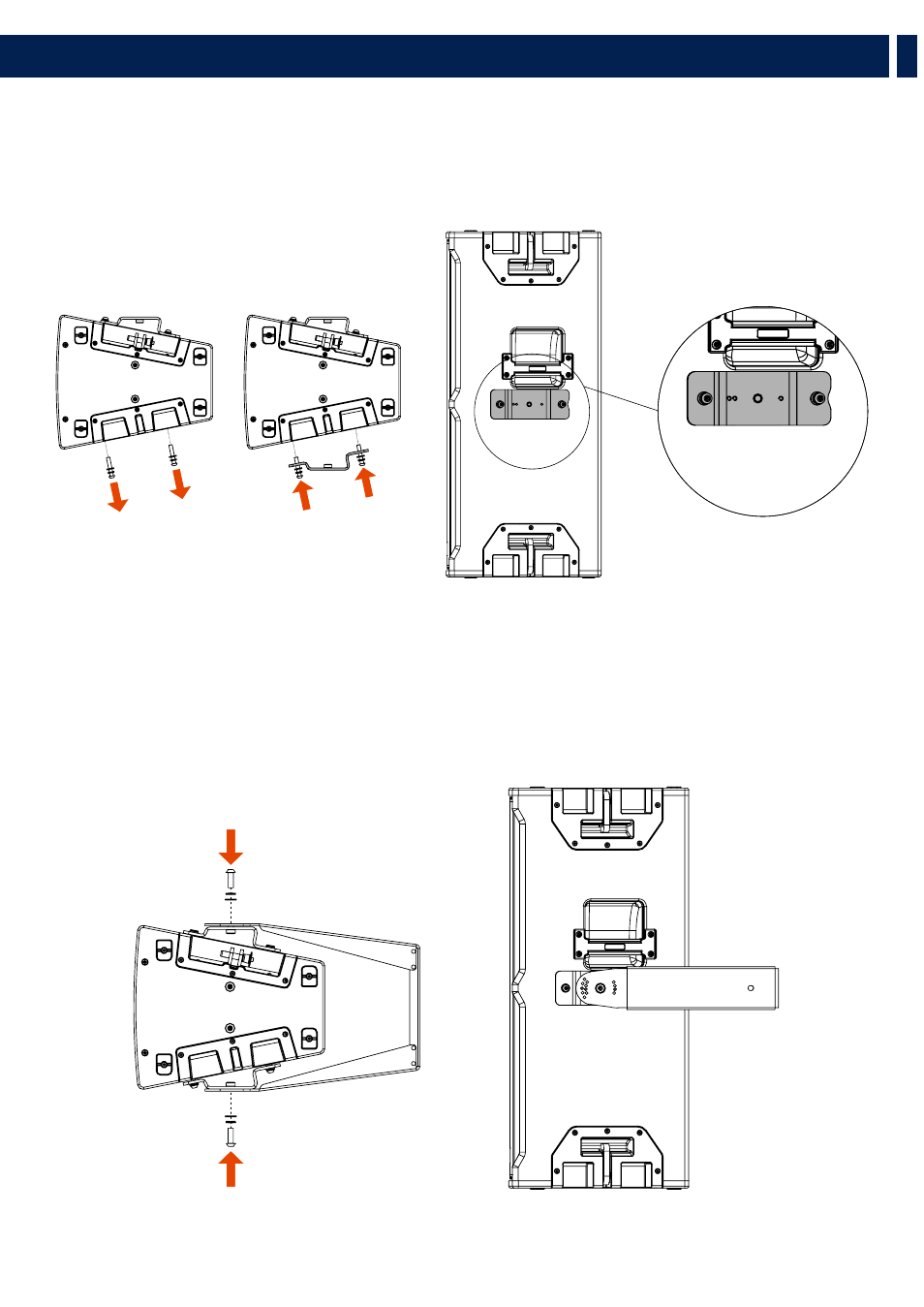

This configuration is suggested for TTL 4-A, TTP 4-A and TTW 4-A. The speakers can be mounted on a wall with the vertical bracket V-BR TT 4�
Unscrew the four M8 lateral screws from the speaker, position the bracket and screw it to the speaker with the same M8 screws as shown in the
image (place the bracket exactly as shown in the image)� Use the flat washers and the serrated washers provided to install the vertical bracket�
Place the V-BR bracket on the speaker and secure it using the M10 screws (Use the flat washers and the serrated washers provided)�
Do not completely clamp the screws to allow the speaker inclination�
