5. INSTALLATION
1. Input connections
• MICROPHONE/ MICROPHONE STANDS CONNECTIONS:
use only shielded cable with any kind of microphone used.
Revert to (fig.1 ref.4) set Input level. For microphone with Phantom power set PHANTOM switch on position
ON (fig.2 ref.4).
• LINE INPUT CONNECTIONS(CD, AM/FM TUNER, etc..)
use shielded cable for long distance
Revert to (fig.1 rif.4) set GAIN level and set PHANTOM switch on position ON (fig.2 ref.4).

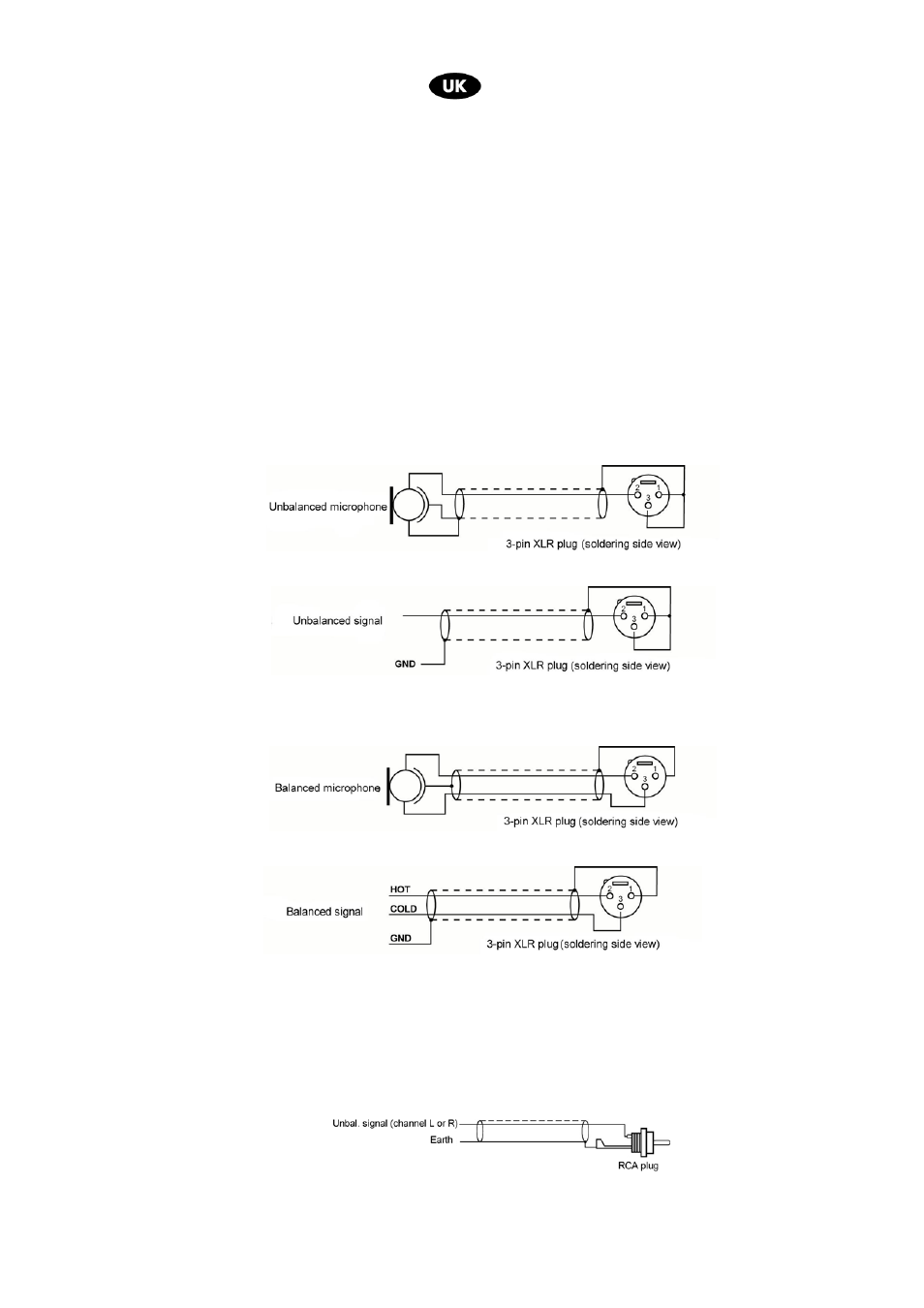

For different connections purposes, apply to the following schemes:
Unbalanced connection :
Balanced connection:
• AUX INPUT CONNECTIONS (CD player , AM/FM TUNER etc..)
I use shielded cable for long distance).
Revert to (fig.2 ref.5)
RCA connections
