4. REAR PANEL FUNCTIONS AND CONTROLS

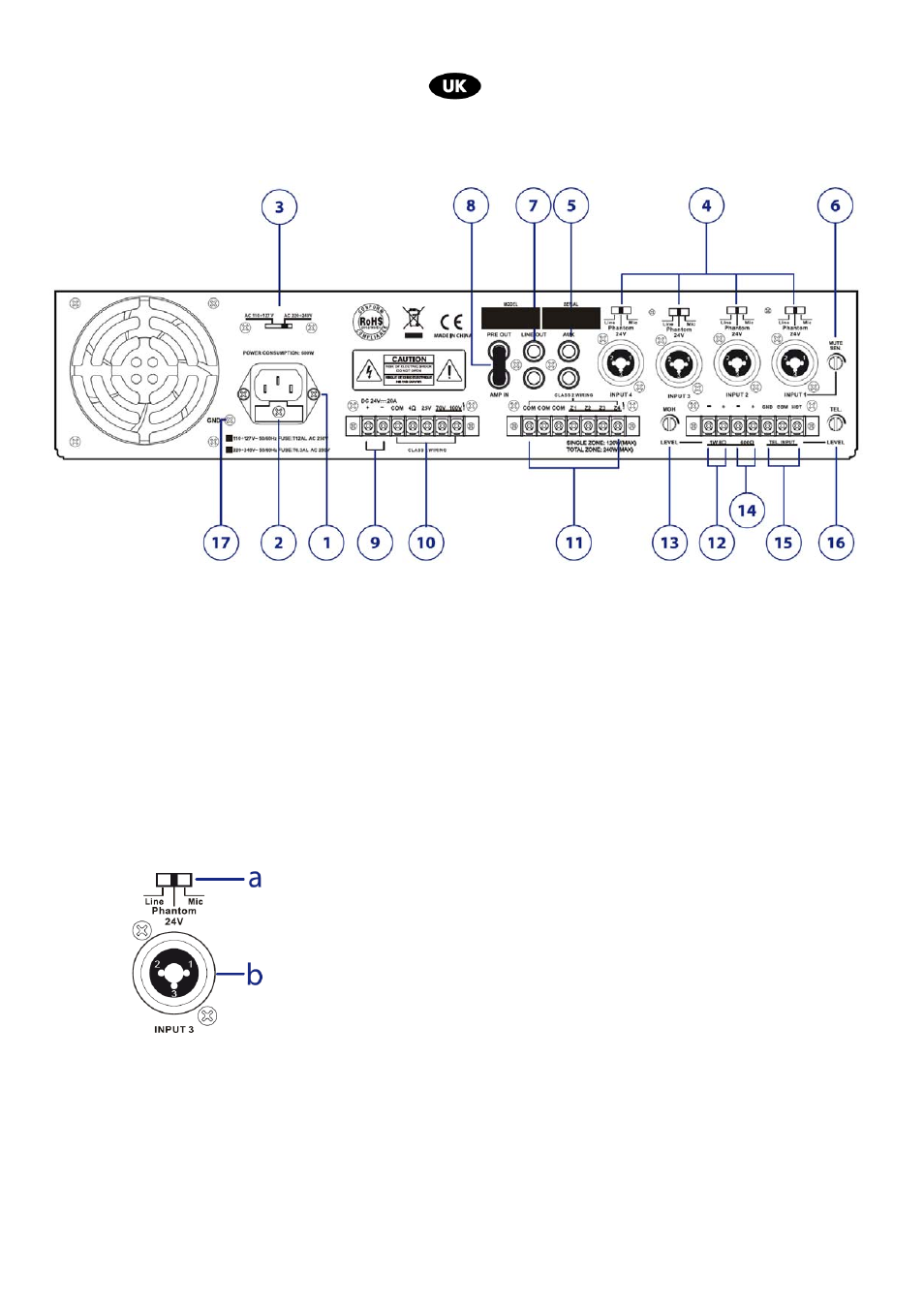

fig. 2
1. MAINS SOCKET
Connect the unit to a 230 V AC 50/60 Hz outlet or 117 V AC 50/60 Hz
Note: if you use a 117 V AC 50/60 Hz power supply, switch the selector to the 117 V DC position
2. FUSE
Fuse housing.
110÷127 V~ 50/60Hz Fusibile: T 12 AL AC 250V
220÷240 V~ 50/60Hz Fusibile: T 6.3 AL AC 250V
3. Mains Selector (230/117 V AC 50/60 Hz)
4. INPUT 1 ÷ INPUT 4
a) Input sensitivity selectors
b) Balanced COMBO type MIC/LINE input (female XLR + 6,3 mm
Jack)
fig.3
INPUT1, INPUT2, INPUT3, and INPUT4 are balanced/unbalanced, useful for low impedance (30-600
Ω)
dynamic microphones, or 24V phantom condenser microphones, or audio sources with line level output (i.e.
AM/FM tuner, cassette deck, CD player, etc.).
