23

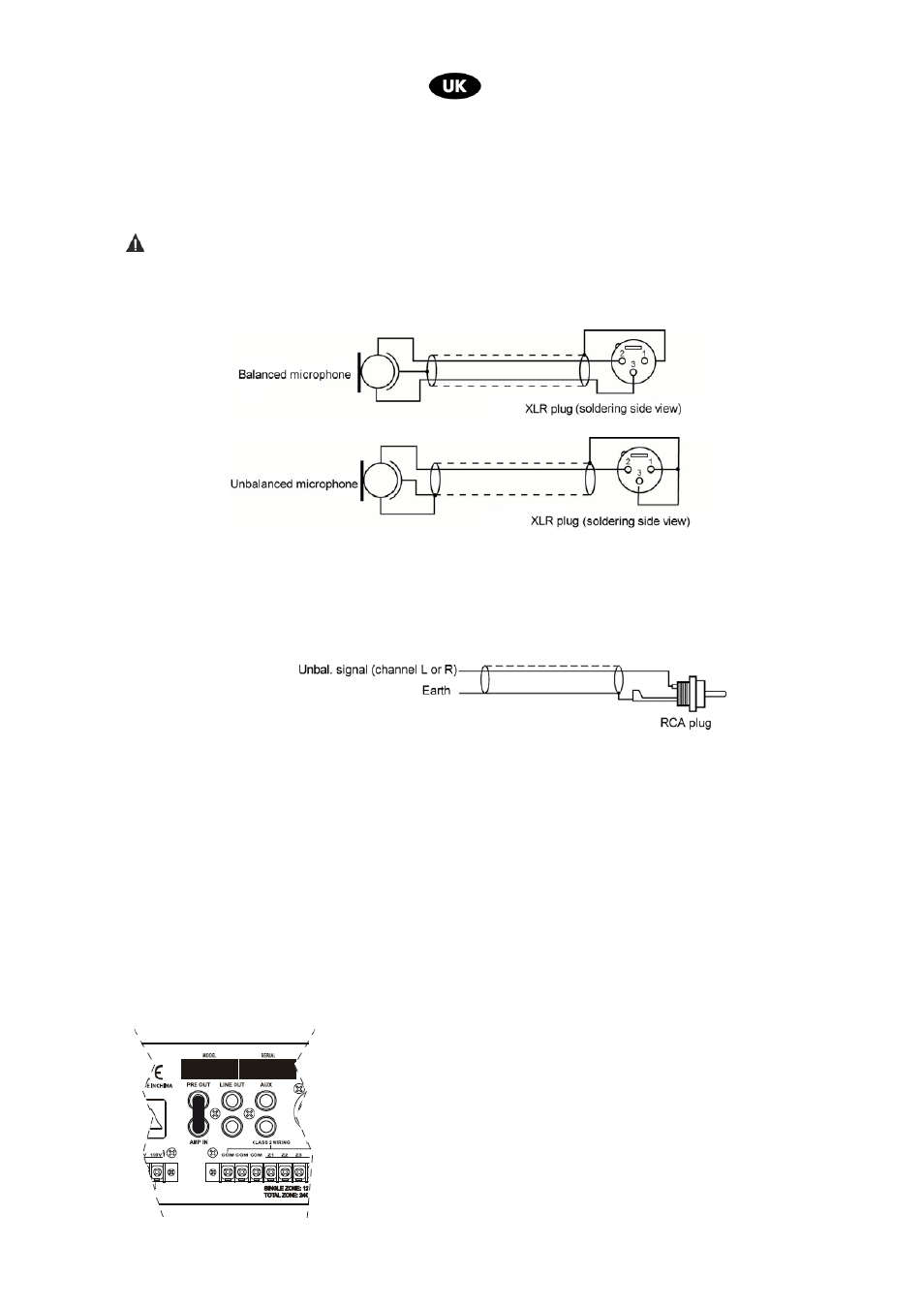

To choose the source type to be connected, please use selectors (fig. 3 ref. a):
LINE position for AM/FM tuners, CD players etc.,
MIC position for dynamic microphones
PHANTOM position for condenser microphones.
Attention
d. Never connect unbalanced microphones when PHANTOM power is active, this power could be damaged.
e. Turn off PHANTOM power before connecting or disconnecting the microphones connectors.
f. Be sure that PHANTOM power is not active when you use microphones that don’t need external power. Phantom power applied
to XLR pin 2 and 3 could damage the microphones.
5. AUX Input (INPUT 5)
R (right) and L (left) sockets allow to input right and left channels using RCA connectors. It’s possible to
use this input for an external audio source
6. MUTE SEN
The MUTE SEN (Priority) function allows the signal on INPUT1 or TEL INPUT to attenuate all other input
levels. The amount of attenuation can be adjusted by the MUTE SEN trimmer.
Note:
When the trimmer is set to maximum (to the right), a signal input on INPUT1 or TEL INPUT automatically
mutes all other inputs.
When the trimmer is set to minimum (to the left) the Priority function is bypassed and all channels are active.
7. LINE OUT
Unbalanced line Output
8. Input AMP IN – OUTPUT PRE OUT
Standard configuration MAIN IN input is connected to
PRE OUT output throughout a bridge.
