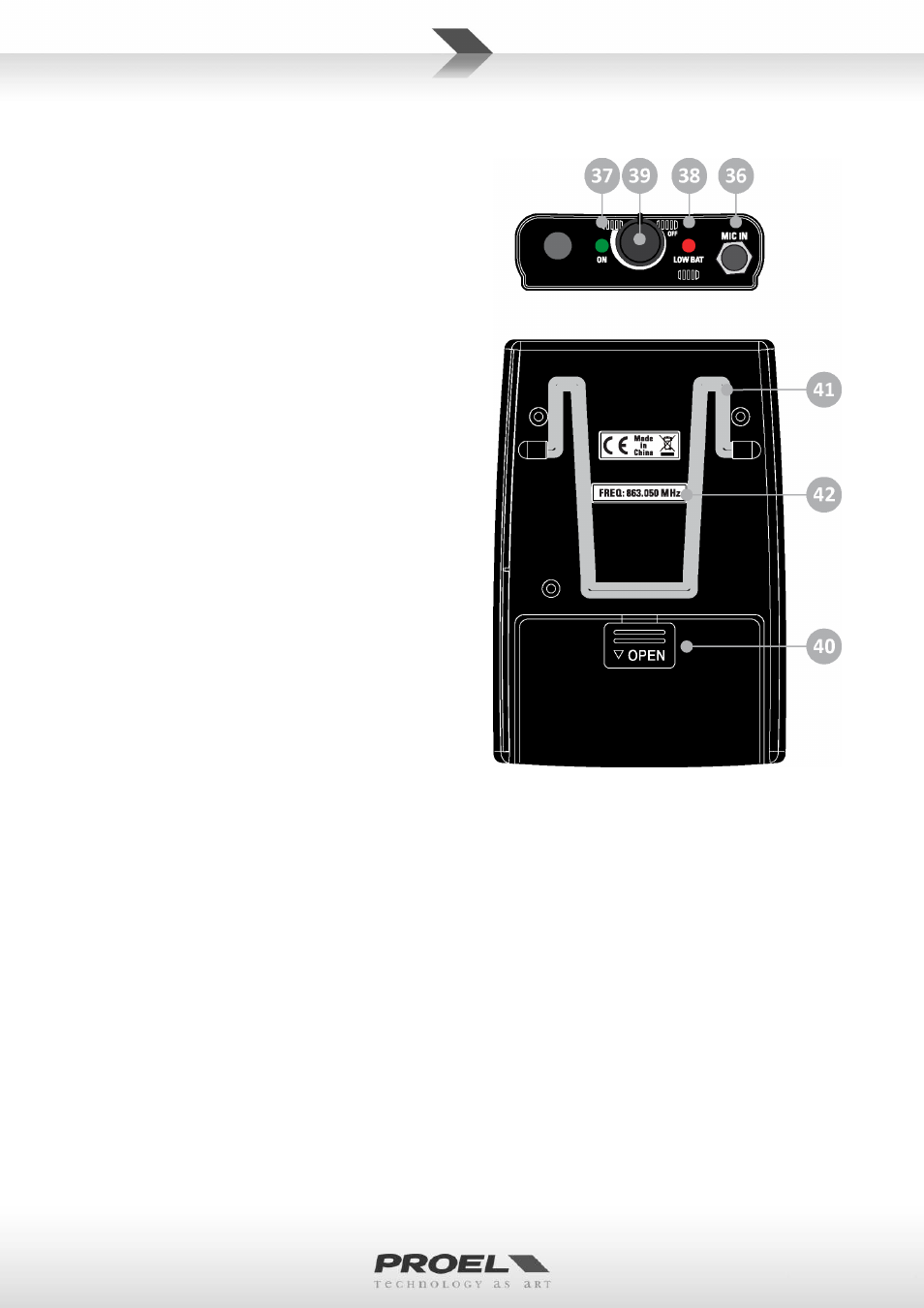

FR1B is the UHF wireless bodypack transmitter.
36. AUDIO INPUT
3,5mm mini jack input socket to connect the
supplied headset microphone.
37. ON
GREEN LED that shows the “ON” status of the
bodypack.
38. LOW BAT
RED LED that shows the battery status: the LED
will light if the batteries are near to be exhaust,
to indicate that they must be replaced as soon
as possible.
39. ON/OFF and LEVEL CONTROL
This potentiometer is used for switching ON the
bodypack and for adjusting the level of the
microphone.
40. BATTERY COMPARTMENT
Sliding down the lower part of the bodypack you
can access to the battery compartment.
To operate the microphone needs 2 type AA
alkaline batteries.
NOTE: the microphone is able to operate also
with 2 Ni‐MH rechargeable batteries, but in this
case the operating time is less.
41. CLIP
Clip for hooking the bodypack to the belt.
42. FREQUENCY
On the back side of bodypack a sticker shows
the operating frequency of the transmitter.
