24. 12‐24V DC INPUT
This is the input where to connect an external DC source to supply the FREE10 and/or charge the FREE10
internal battery.
25. CHARGE
This LED indicates the battery charging status as follows:
‐ fixed GREEN: the internal battery is fully charged.
‐ fixed RED: the internal battery is being charged.
‐ flashing GREEN/RED: the internal circuit is testing the battery.
‐ OFF: the internal battery is disconnected or not present.
26. LOW
This RED LED indicates when the FREE10 has been turned on but the battery needs to be re‐charged.
27. HIGH
This GREEN LED indicates when the FREE10 has been turned on and the battery is in good status.
WIRELESS MICROPHONE OPERATIONS
The FR1 Wireless Microphones system provided with the FREE10 is a UHF, quartz controlled, fixed frequency
device that provides a reliable, high‐quality signal transmission.
The FR1 Wireless Microphone system features 3 units: FR1R receiver, FR1H handheld transmitter and FR1B
body pack transmitter.
The FREE10 is provided as standards with one handheld wireless microphone (FR1R + FR1H at 864.300 MHz).
An additional wireless handheld microphone (FR1R + FR1H at 863.675 MHz) or bodypack (FR1R + FR1B at
864.975 MHz) can be installed as optional, allowing the simultaneous use of 2 devices without interference
between them.

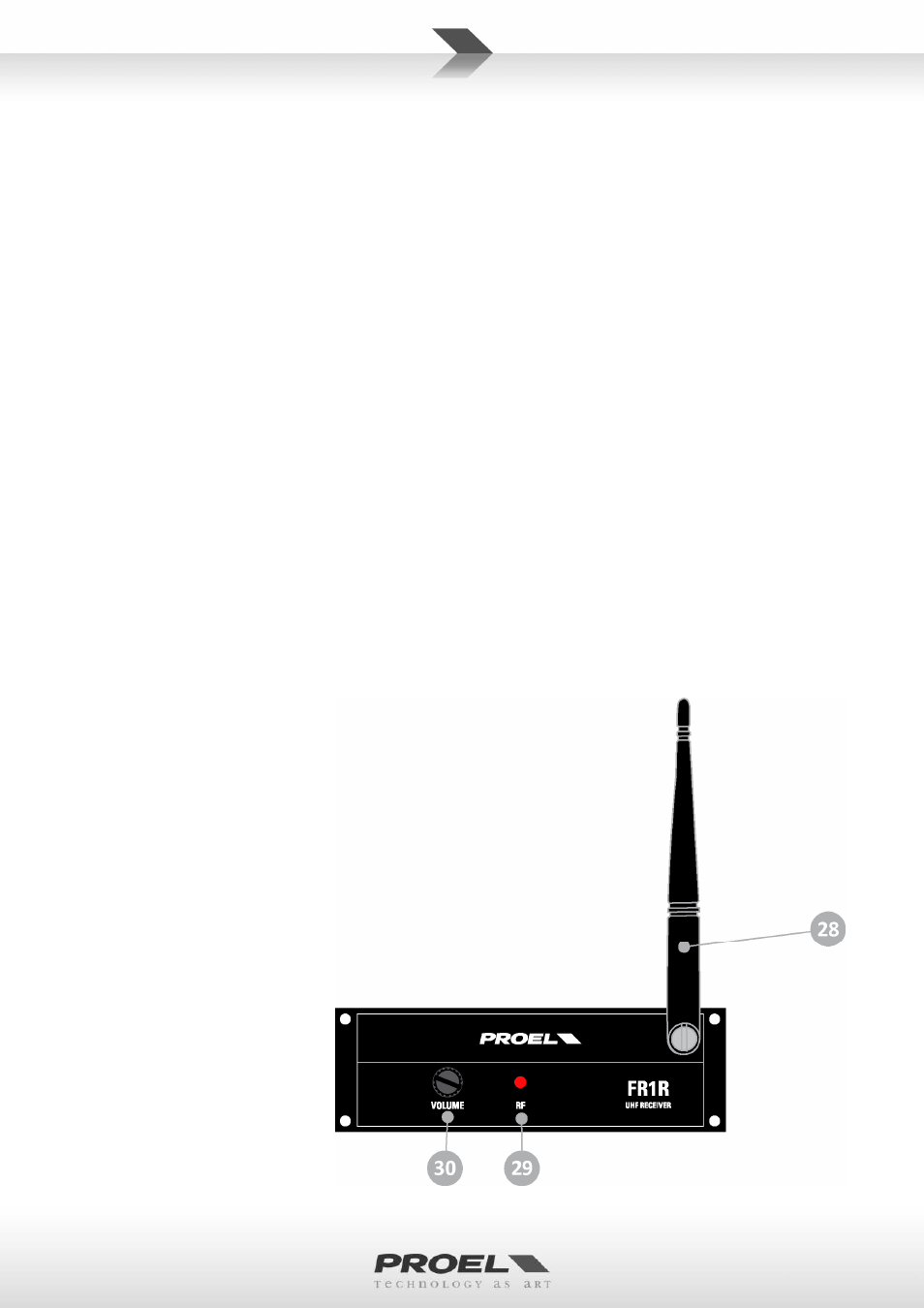

FR1R is the UHF wireless
microphone receiver.
28. ANTENNA
In order to obtain a good
transmission, raise up the
receiving antenna during
use and place the
receiver away from other
metal objects and no
more than 30m from the
transmitter.
29. RF
RED LED: indicates that
the transmitter is sending
a radio signal to the
receiver.
30. VOLUME
Volume potentiometer.
