Advanced Contact Technology
www.multi-contact.com 9 / 12
24
25
26
27
A
Variante B:
Montaggio a muro
Variant B:
Wall mount
Inserire RobiFix-B-MTB in Robi-
Fix-S-MTB comprimendoli sino
all’arresto (ill 22)
Connect RobiFix-B-MTB and
RobiFix-S-MTB together until they
perfectly engage (ill 22)

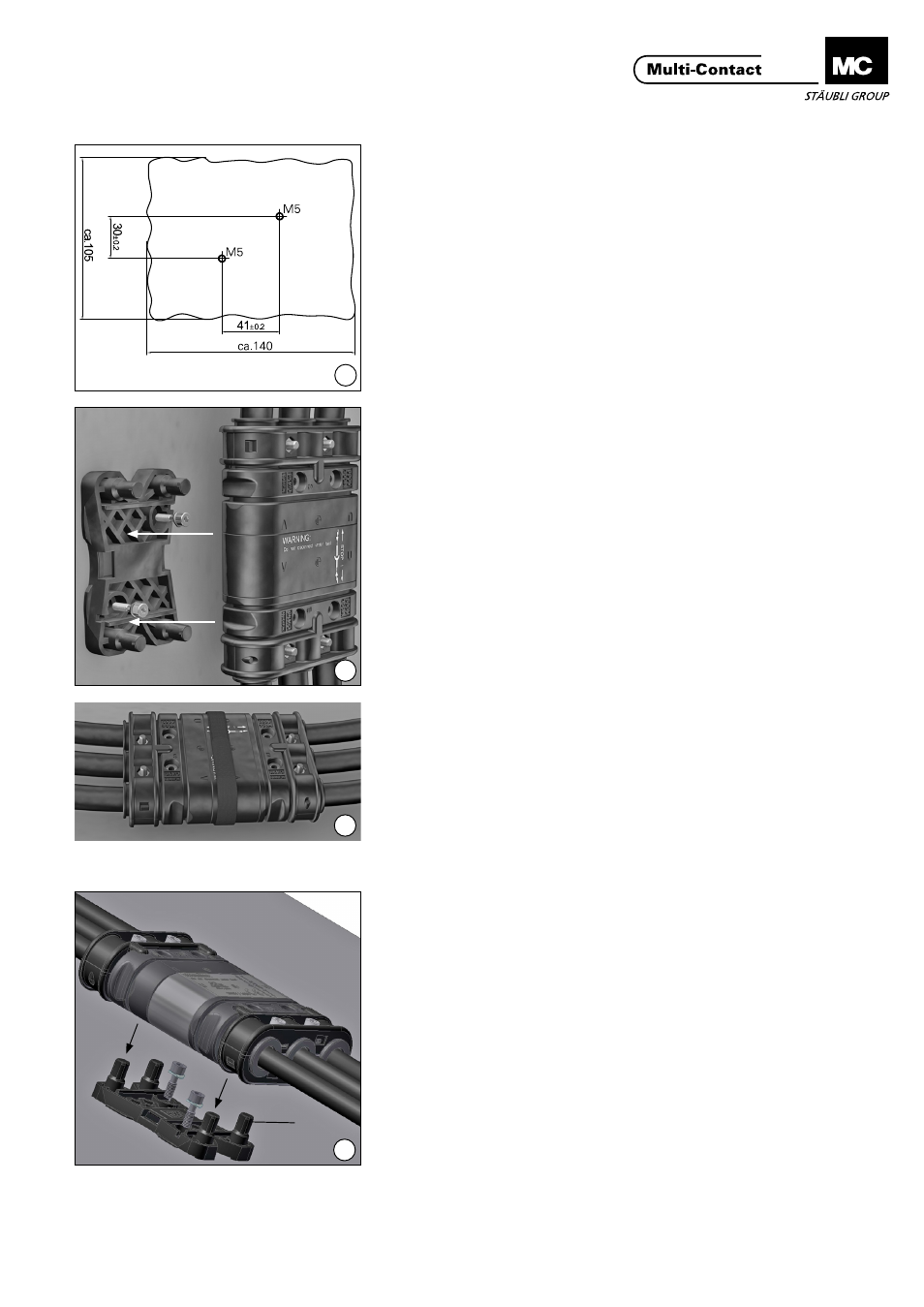

(ill. 24)
Trapanare i fori di fissaggio secondo il
piano di foratura
(ill. 24)
Drill mounting holes according to drill-
ing plan
(ill. 25)
Avvitare RobiFix-LOCK con le 2 viti
sulla superficie piana. Applicare
RobiFix
(ill 25)
Mount RobiFix-LOCK with both
screws onto a flat surface.
Clip RobiFix on the LOCK
(ill. 26)
Successivamente, se necessario (forze
laterali), applicare il nastro velcro per
una maggiore sicurezza
Smontaggio:
Staccare il nastro velcro e separare
RobiFix da RobiFix-LOCK
(ill. 26)
Then if required (lateral forces) attach
the enclosed Velcro strip for additional
safety
Disassembly:
Detach the Velcro and separate Robi-
Fix from the LOCK
Variante C:
(RobiFix-TwinPower)
Variant C:
(RobiFix-TwinPower)
(ill. 27)
A tale scopo l’elemento RobiFix-Twin-
Power-E (A) viene avvitato con 2 viti
sulla superficie piana (stesso piano di
foratura come da ill 24)
Inserire RobiFix-B…MTB in Robi-
Fix-S…MTB comprimendoli sino
all’arresto e applicandoli successiva-
mente a mano sull’elemento Robi-
Fix-Twin-Power-E (A)
(ill. 27)
Mount RobiFix-TwinPower-E (A) onto a
flat surface with two screws (following
the same drilling plan as shown in ill
24)
Mate RobiFix-B…-MTB and RobiFix-
S…-MTB together until they perfectly
engage Then clip them onto RobiFix-
TwinPower-E (A)
