11. EXTERNAL SETTING AND PARTICULAR OPERATING MODALITY.

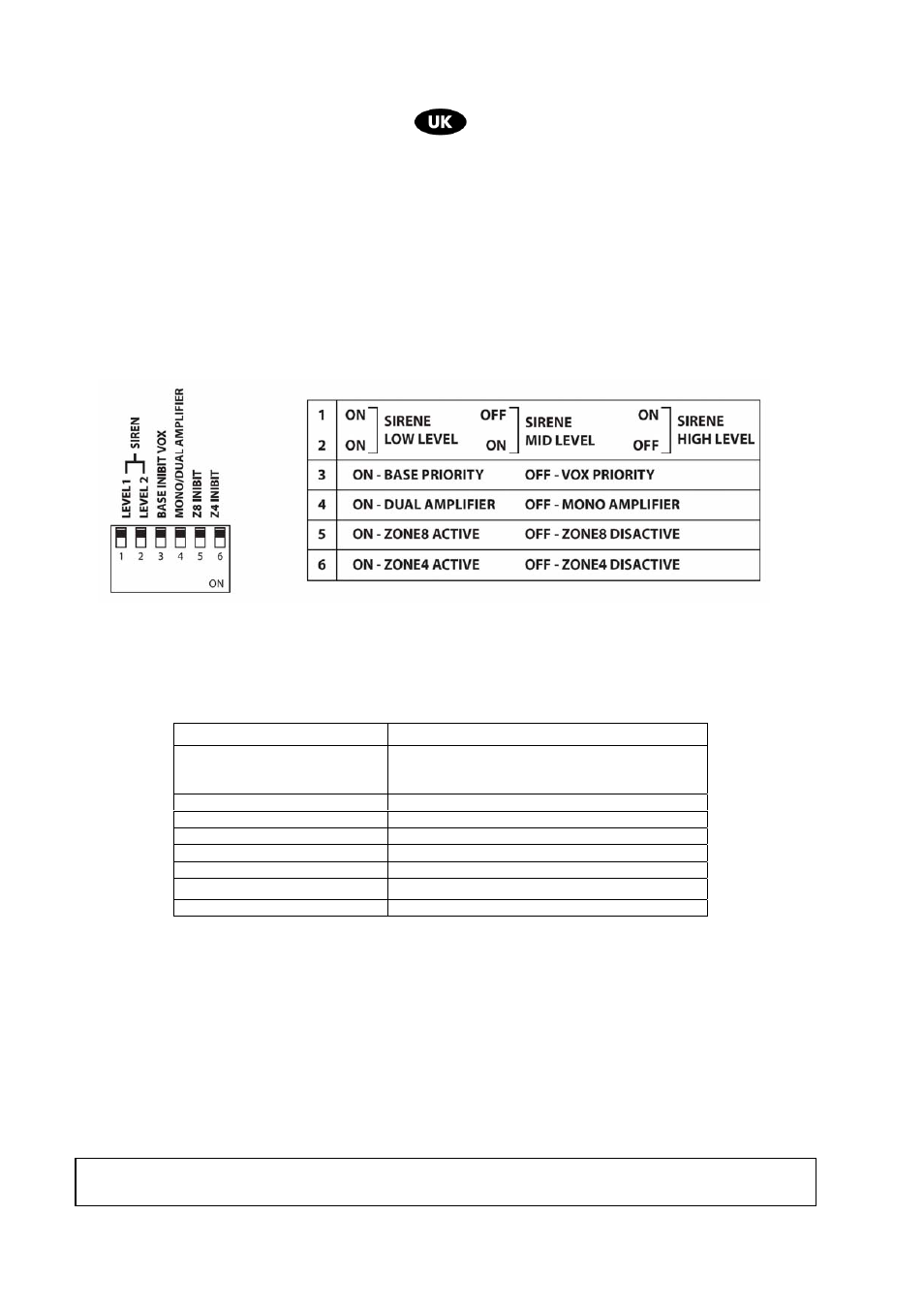

11.1 A Dip-switch with 6 benches is available on the ZONE8 unit rear panel. Such micro-switches are to be
used for the following operating modality and functions:
1 & 2 - Siren tone emission level.
3 - VOX input and microphone call stations priority level selection.
4 - Operating modality for one single or doubly amplification purposes.
5 - Microphone call deactivation on VOX input for zone N°8 .
6 - Microphone call deactivation on VOX input for zone N° 4.
12. TECHNICAL CHARACTERISTICS
The product is in compliance with Directive 89/336/EEC (Electromagnetic Compatibility)
and following amendments 92/31/EEC and 93/68/EEC- as the following standards:
EN 50082-1:1997, EN 55013:1990, EN 55020:1994
it is also in compliance with Directive 73/23/EEC (Low Voltage)
and following amendments 93/68/EEC, as the following standard:
EN 60065:1998
MODEL ZONE8
Auxiliary inputs AUX1-AUX2-
TUNER-TAPE :
CD : -18dB (100mV)
-6dB (480mV)
S/N Ratio: > 80dB
Frequency response: 20-20KHz
VOX inputs: -8dB (300mV)
MIX OUT output 1,2V – 600ohm
MUSIC OUT output 1,2V – 600ohm
Override command 24VDC – 100V
Power supply 230VCA/24VDC Emergency
Proel SpA company pursues a policy of continuous research and development. Proel SpA company reserves the right to modify
product circuitry and appearance at any moment, without prior notice. REV: 00 / 22-07
