19

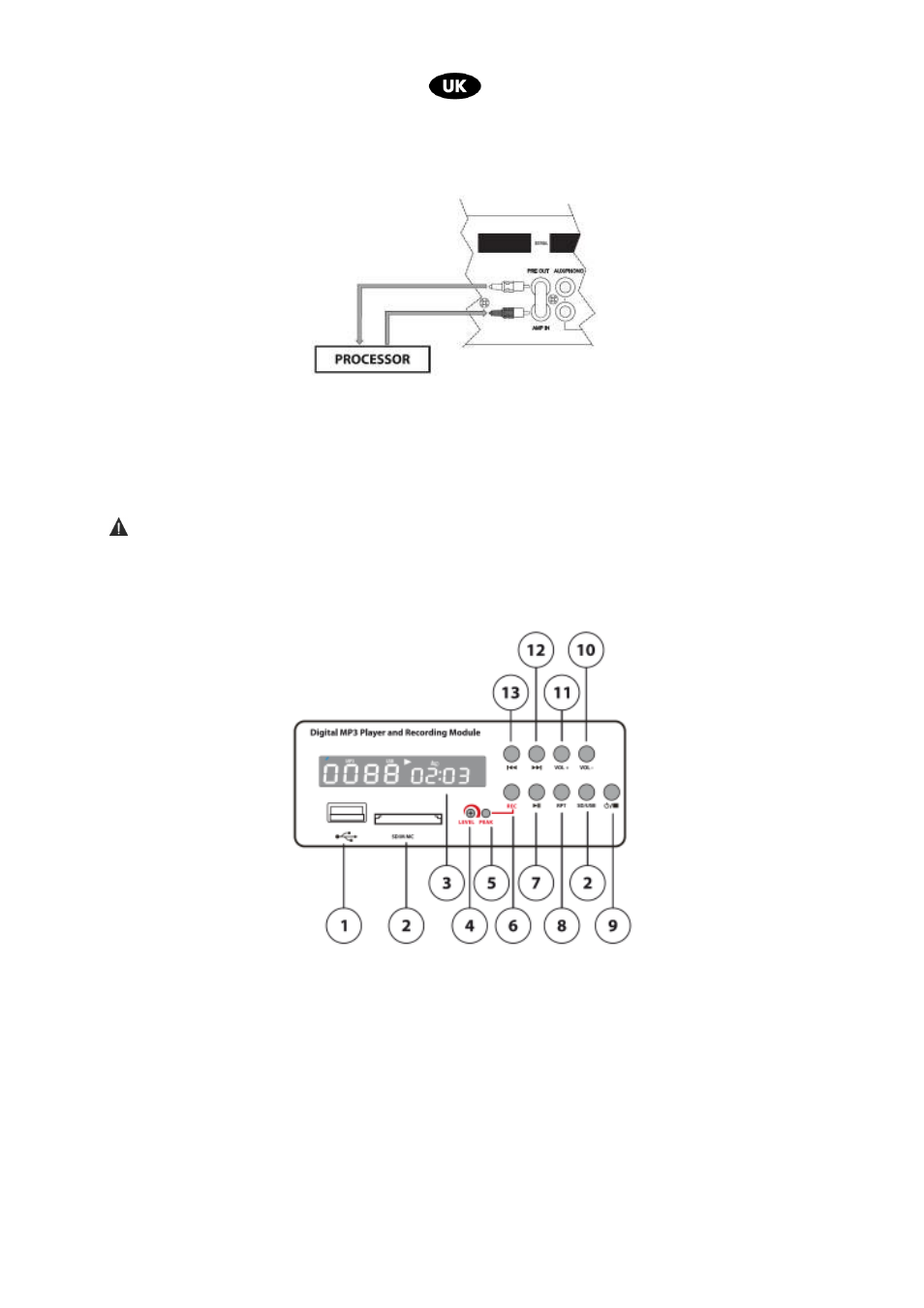

6. INSERT
The AMP IN input is connected with the PRE OUT output by a jumper. The signal requiring amplification
can nonetheless be optimized by interposing an external unit (i.e. equalizer, processor, etc.) between the
two terminals. Refer to the illustration below for the connection.
7. OUTPUT TERMINALS
Connect the speaker lines to the COM terminal and to the desired constant voltage terminal (100 V / 70 V /
100 V). See paragraph 6.2
8. GND Screw
Allows grounding of the mechanical parts of the unit in case the mains cable has no ground pole. (fig.2 ref.8).
Warning
The connection must be carried out by qualified professionals.
5. PLAYING AND RECORDING MODULE
fig. 3
1. USB Interface
2. SD/MMC Interface
3. DISPLAY
4. LEVEL
Sets the recording level
5. PEAK
This LED lights up when the peak level is reached.
To ensure a good recording quality, the peak LED should not be constantly lit.
