4. BASS
Low Tone Control
5. AUX/PHONO
PHONO/AUX rear input volume control
6. MIC1 – MIC2
Volume Controls of MIC1 & MIC2 inputs
Note: MIC1 has priority over all the other inputs
7. MIC1 - MIC 2 INPUT
6,3 mm mono jack
8. Power LED
9. MP3 Reader/Recorder Module

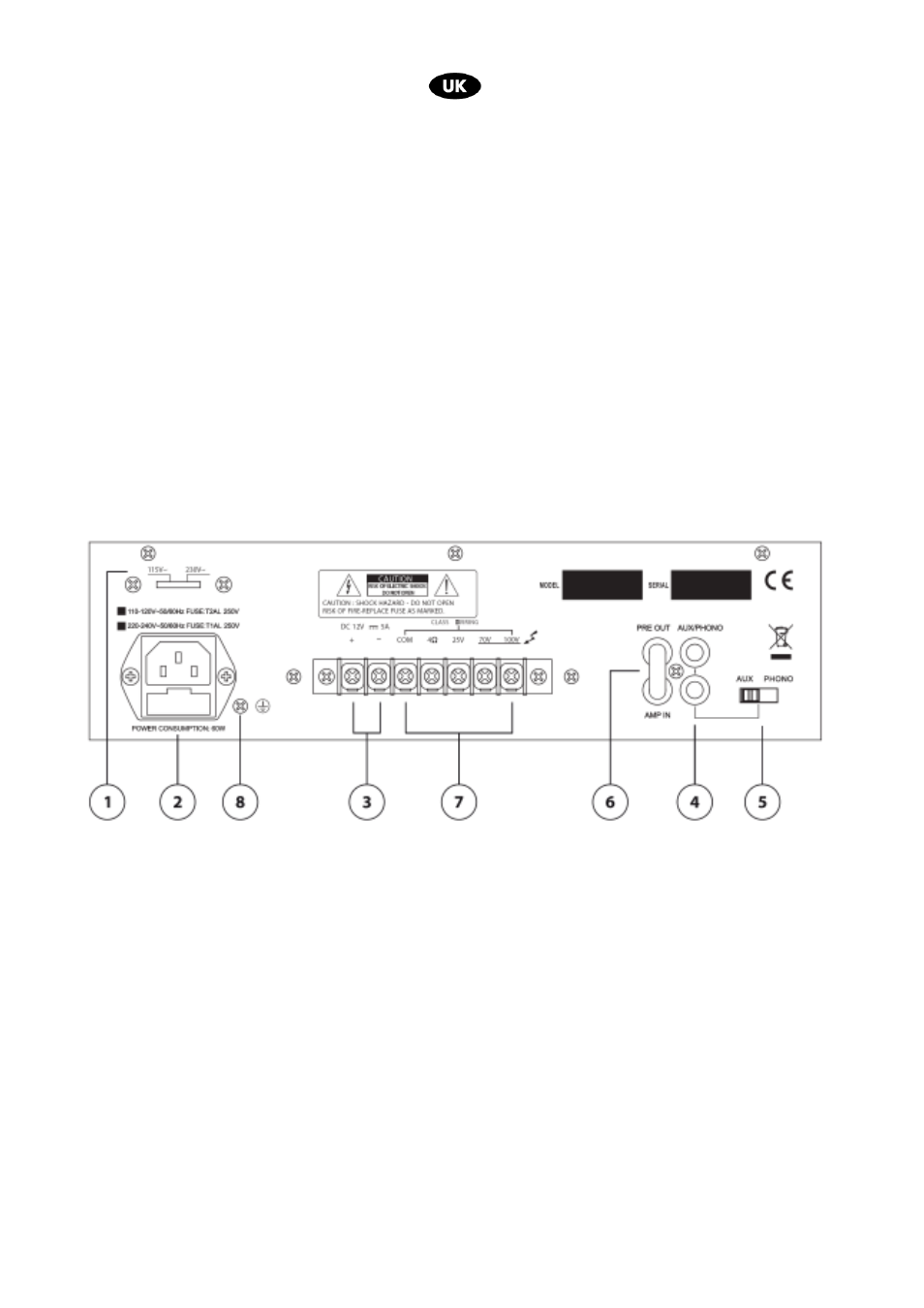

4. REAR PANEL FUNCTIONS AND CONTROLS
fig. 2
1. POWER SUPPLY SELECTOR
2. MAINS SOCKET
Connect the unit to a 230 V AC 50/60 Hz outlet or 117 V AC 50/60 Hz
Note: if you use a 117 V AC 50/60 Hz power supply, switch the selector to the 117 V DC position
T 1A 250V fuse housing.
3. 12 V DC POWER CONNECTORS
These two connectors allow the unit to be powered by direct current through an external power source such
as a generator or a 12 V DC battery.
If you opt for direct current powering, please insert a 5 A 12 V fuse in the V DC supply line, the main switch
will be bypassed.
4. AUX/PHONO IN
Auxiliary input (RCA)
Connect this input to an external audio source (CD player, MP3, DVD reader, etc.)
5. SELECTOR
Switches between AUX and PHONO
