The TT 515-A horn can be rotated to reverse the coverage angle and obtain a directivity of 70° H x 100° V..

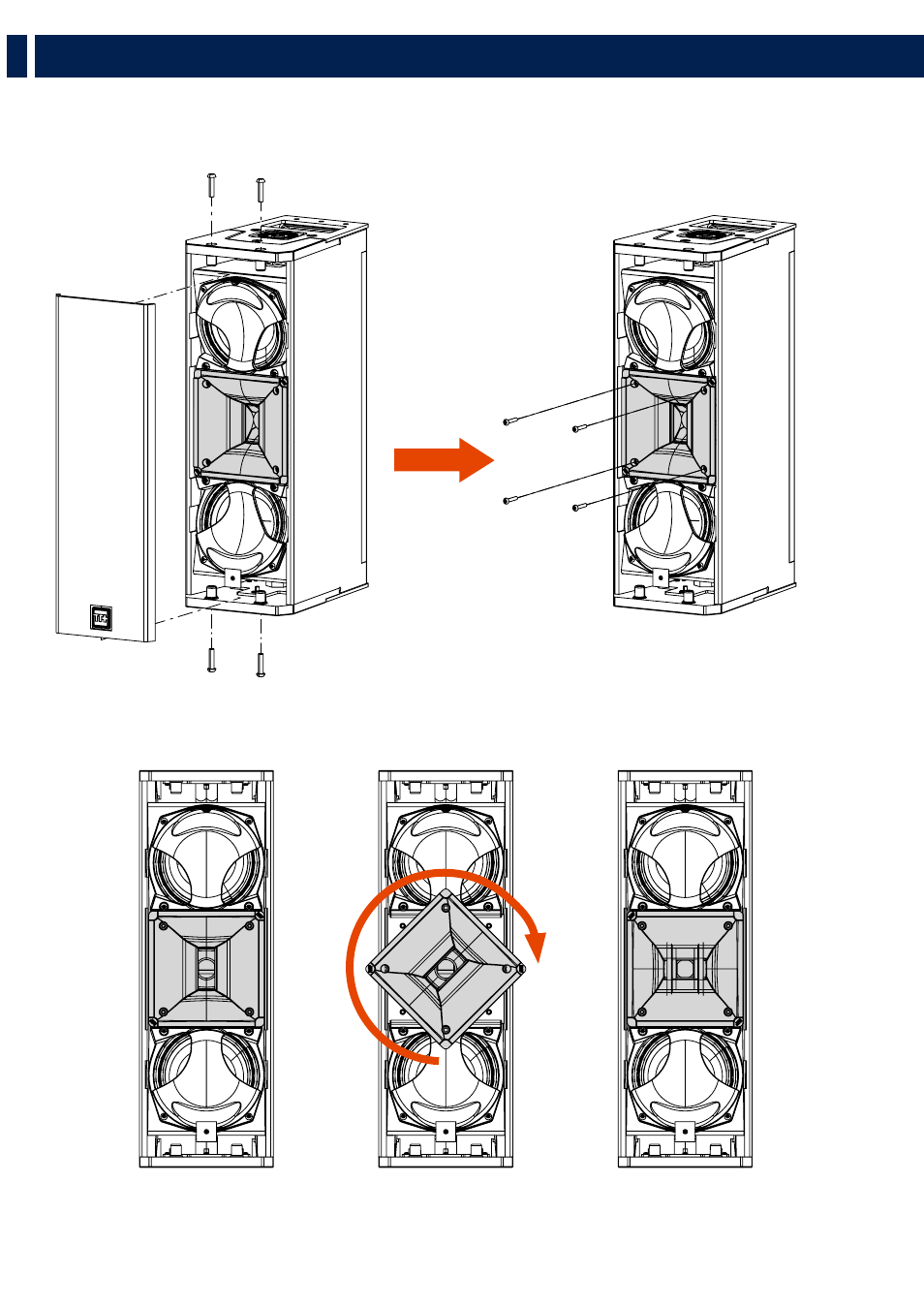

First of all remove the front grille by unscrewing the four screws on top and bottom of the speaker. Then unscrew the four screws on the horn.
Rotate the horn and screw it back with the same screws removed earlier. Place back the grille on its position and screw it to the cabinet.
4. ROTATION OF THE HORN
Directivity:
100° H x 70° V
Directivity:
70° H x 100° V
HORN
ROTATION
