CONNECTIONS

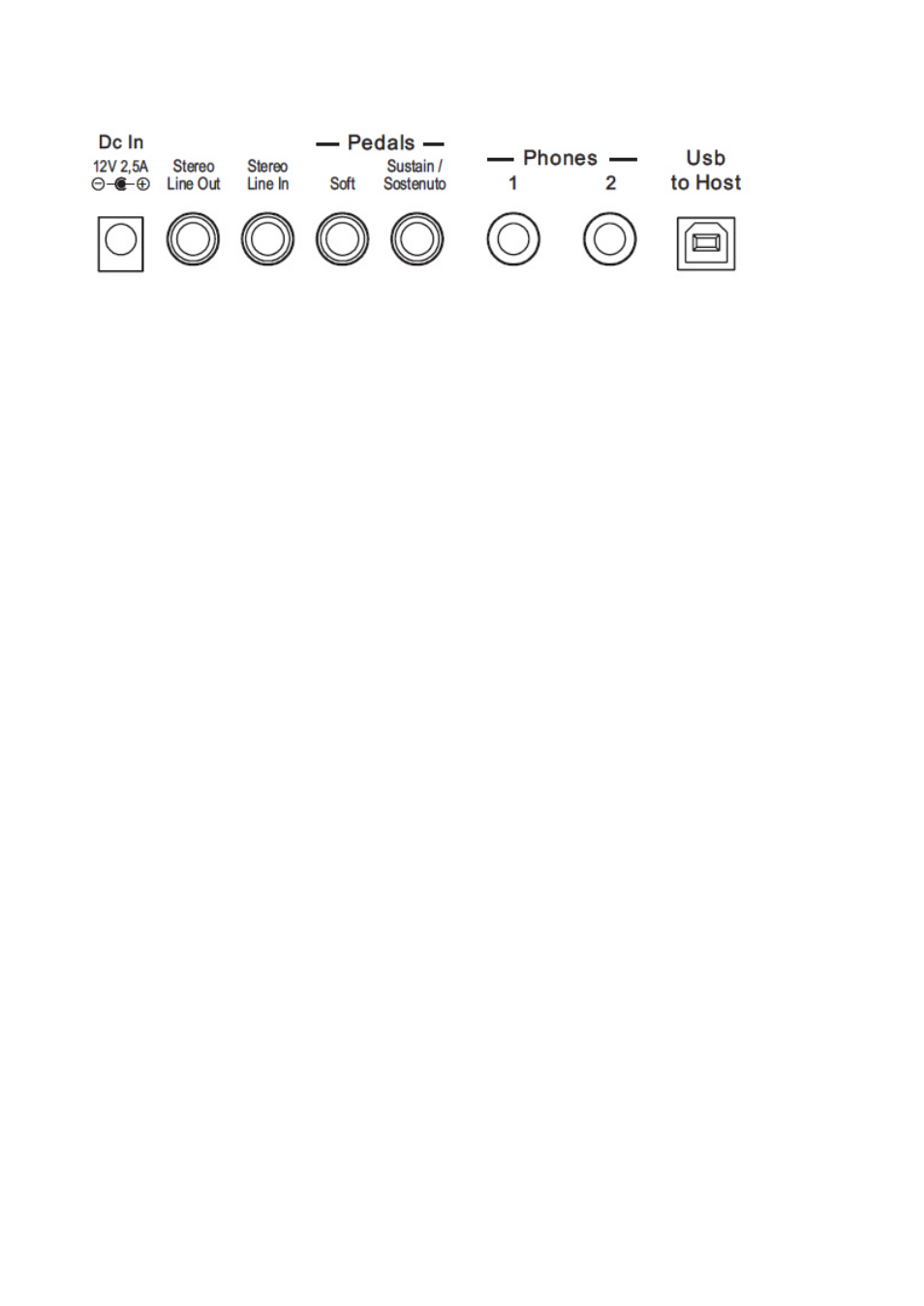

USB TO HOST
It is possible to connect the instrument to a computer using the USB port located in the back panel
of the instrument and control the Midi parameters.
PEDALS Soft – Sostenuto/Sustain
These two jack plugs are used to connect the pedals available with the instrument.
STAGE STARTER – it is supplied with a Sustain Pedal. Connect it to the Pedal Input Sustain/Sostenuto to
obtain the Sustain effect when used.
CDP 1 – It is supplied with a complete set of 3 pedals. Insert the mono jack to the Pedal Input Soft and the
stereo jack in the Pedal Input Sustain/Sostenuto.
NOTE – The STAGE STARTER can also use a set of 3 pedals (optional). Same connection as in CDP 1.
STEREO LINE IN
There is a Stereo In socket that is used to send the Left and Right audio signal of an external
instrument via the internal amplifier of the Piano (an Mp3 player for example).
STEREO LINE OUT
There is a Stereo Line Out socket that is used to send the audio signal out an external amplifier,
mixer console or recording equipment.
PHONES 1/2
Two headphone set can be plugged in for private practice. They disconnect the speaker system and
allow you to play without disturbing the others being disturbed by outside noise.
DC IN
Connect the power adapter (12V) in the DC IN socket.
