Per i vostri ordini Ordering information
1) Disponibili altre sezioni (dépliant G Roboticline). 1) Different cross-sections available
(Flyer G Roboticline)

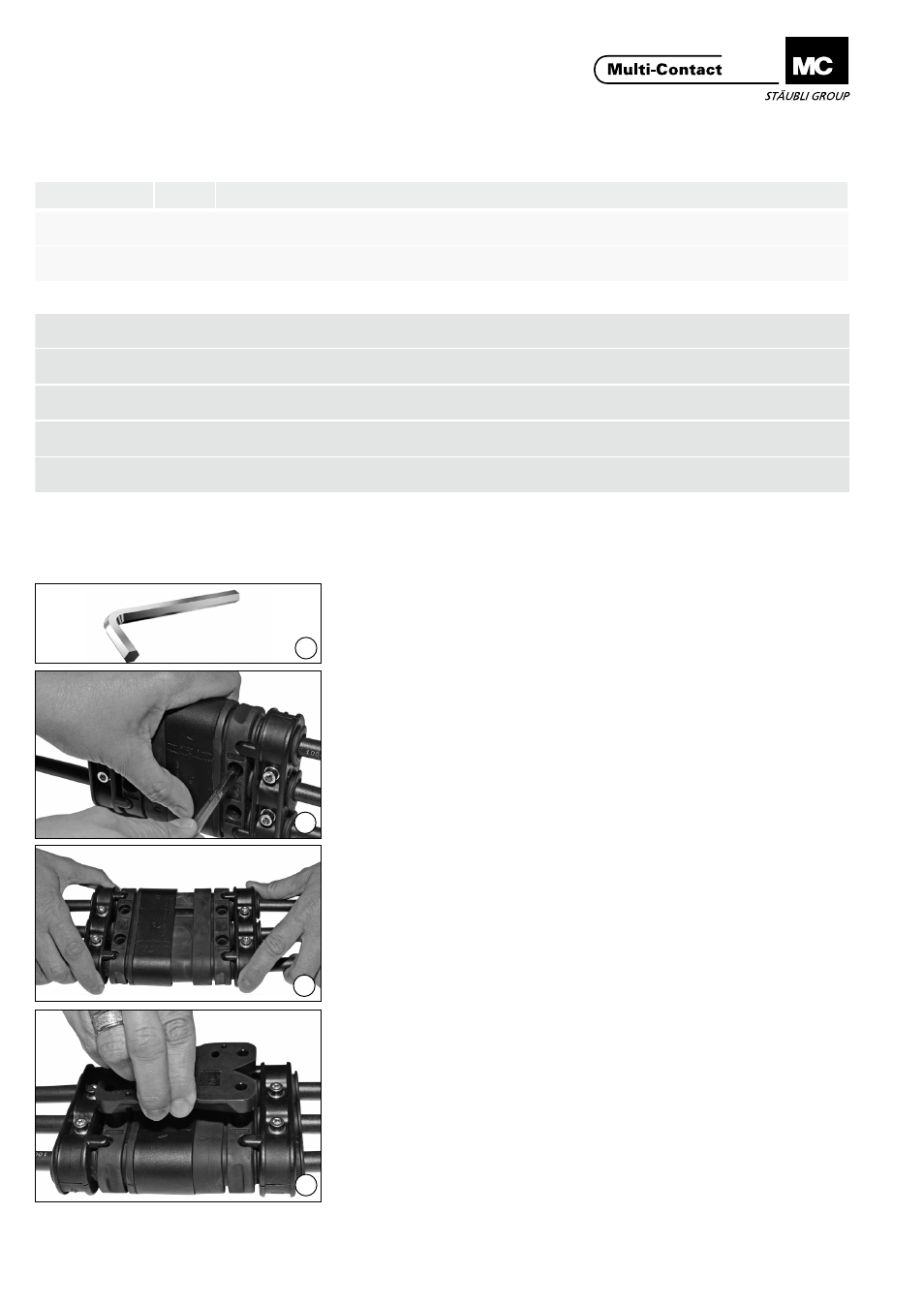

Montaggio RobiFix-Lock Assembly RobiFix-Lock
Utensili necessari Tools necessary
(ill. 20)
Chiave esagonale con apertura chiave
6 o simile
(ill. 20)
Hex wrench size 6
(ill. 21)
Rimuovere le viti ed estrarre le bussole
di montaggio con l’utensile Conserva-
re ambedue
(ill. 21)
Use tool to remove screws and push
out both mounting sleeves
Store both
Variante A:
Montaggio volante
Variant A:
Flying assembly
(ill. 22)
Inserire RobiFix-B-MTB in Robi-
Fix-S-MTB comprimendoli sino
all’arresto
(ill. 16)
Connect RobiFix-B-MTB and
RobiFix-S-MTB together until they
perfectly engage
(ill. 23)
Montare RobiFix-LOCK (senza viti alle-
gate) a mano sul RobiFix connesso
Successivamente, se necessario (forze
laterali), applicare il nastro velcro per
una maggiore sicurezza
(ill. 23)
Mount RobiFix-LOCK (without
enclosed screws) by hand onto the
connected RobiFix
Then if required (lateral forces) attach
the enclosed Velcro strip for additional
safety
Tipo
Type
N. ordine
Order No.
Descrizione
Designation
RobiFix-B35-MTB 30.4005 Guscio presa completo (incl. pressacavo, inserti di montaggio)
Socket contact carrier complete (incl. cable strain relief and contacts)
RobiFix-S35-MTB 30.4010 Guscio spina completo (incl. pressacavo, inserti di montaggio)
Pin contact carrier complete (incl. cable strain relief and contacts)
Pezzi di ricambio Individual parts
RobiFix-B-L 30.4006
Guscio presa senza contatti (incl. pressacavo)
Socket contact carrier empty (incl. cable strain relief)
RobiFix-S-L 30.4016
Guscio spina senza contatti (incl. pressacavo)
Pin contact carrier empty (incl. cable strain relief)
RobiFix-ZE 30.4031
Pressacavo
Cable strain relief
BP8/35 30.0101
Presa Ø 8 mm, 35 mm 2 1)
Socket Ø 8 mm, 35 mm 2 1)
SP8/35 30.0501
Spina Ø 8 mm, 35 mm 2 1)
Pin Ø 8 mm, 35 mm 2 1)
