Advanced Contact Technology

www.multi-contact.com

7 / 8

13

(ill. 12)

Svitare la vite senza testa (8) con la

chiaveabrugolaSW2(m).Svitare

l’anello di serraggio anteriore (4) con

l’anello di montaggio (L) usando il cac-

ciavite (n) come leva� Alloggiare l’anel-

lo di supporto (k) al posto dell’anello

di serraggio (4)� L’anello di supporto

(k)haduesuperficidisupportoIeII.

LasuperficieIservepersmontarela

parte anteriore del guscio lato machio,

lasuperficieIIpersmontarelaparte

anteriore del guscio lato femmina�

(ill. 12)

Unscrew the setscrew using a hex key

wrenchA/F2(m).Unscrewthesecur-

ing ring (4) by means of the assembly

ring (L), turning with the screwdriver

(n) as a lever� Fit the supporting ring

(k) in the place of the securing ring

(4).Thesupportringhas2supporting

surfaces, I and II�

Surface I is for dismantling the front

part of the pin housing, and surface

II for dismantling the front part of the

socket housing�

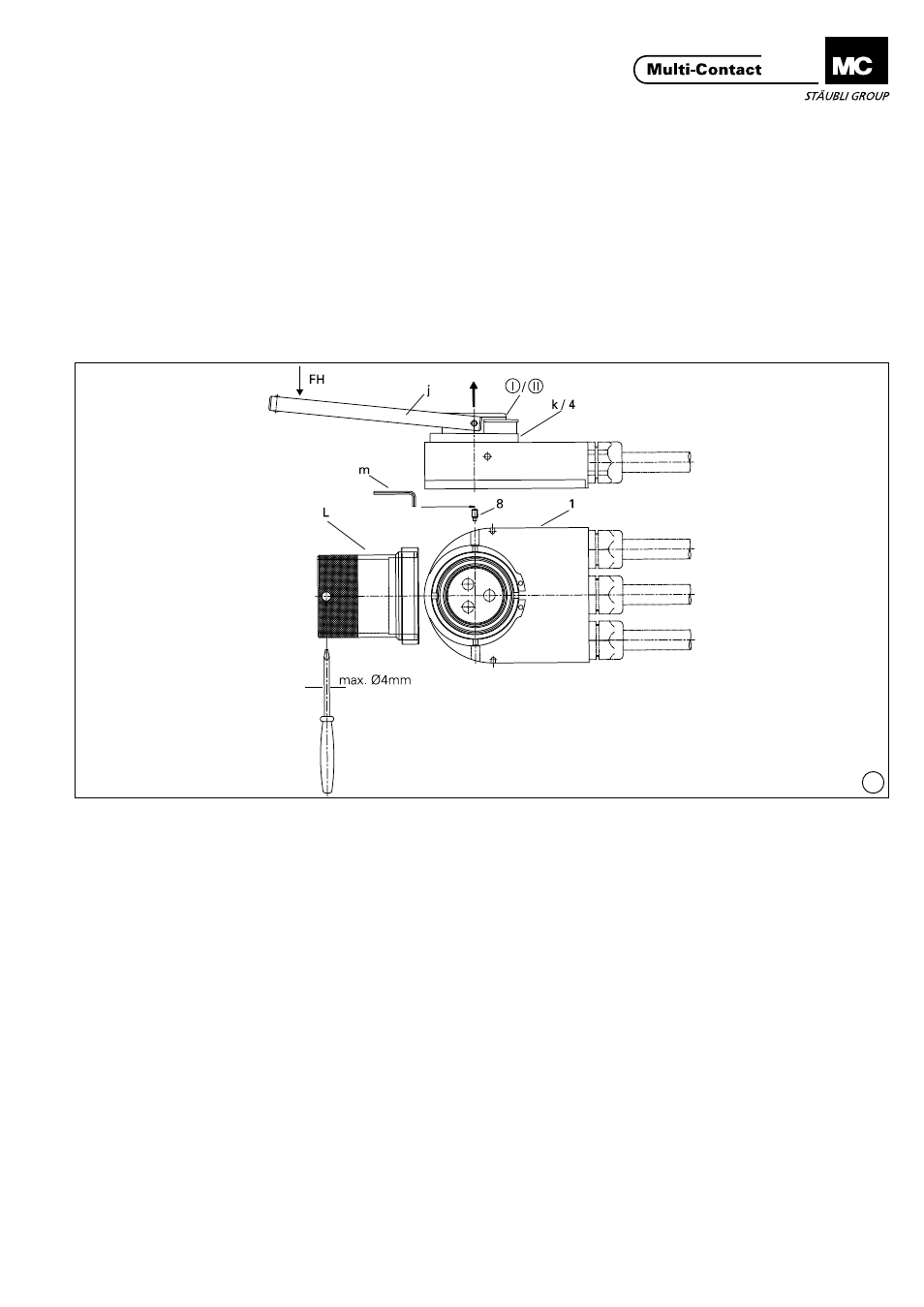

(ill. 13)

Inserire l’attrezzo per l’estrazione (j)

nei fori presentinella parte anteriore

del portaspine (I) o portaboccole (II)�

Tenendo premuti i due bracci dell’at-

trezzo, fare pressione nella direzione

FH così che, facendo leva, le parti

anteriori del portaspine (I) e del porta-

boccole (II) vengano estratti�

Montare la nuova parte anteriore del

portaspine (I) o portaboccole (II) nella

posizione corretta (piccola scanala-

tura allineata con il perno di guida)

facendo pressione manualmente�

Fare attenzione che la parte anteriore

del portaspine e del portaboccole sia

posizionata correttamente nella parte

più bassa del porta contatti (1, vedere

il segno)�

Avvitare di nuovo l’anello di serraggio

(4) nella sua posizione con l’anello

di montaggio (L), poi avvitare la vite

senzatesta(8)perfissarel’anellodi

serragio(4)conchiaveabrugolaSW2

(m)�

(ill. 13)

Then insert the extraction tool (j) into

the holes provided in the front part of

the pin (I) or socket (II) housing� Press

together the arms of the assembly

tool and at the same time press in

direction FH so as to lever out the pin

(I) or socket (II) housing front part�

Fit by hand the new pin (I) or socket

(II) housing front part in the correct

position (slot in line with guide pin)�

Check carefully that the pin or socket

housingfrontpartisfittedintothe

correct housing bottom part (1, see

marking)� Screw the securing ring (4)

back in place with the assembly ring

(L), then screw in the setscrew (8) to

fixthesecuringring(4)usingahex

keywrenchA/F2(m).
