Proel MLX3642 - Manuale (Pagina 11)

11

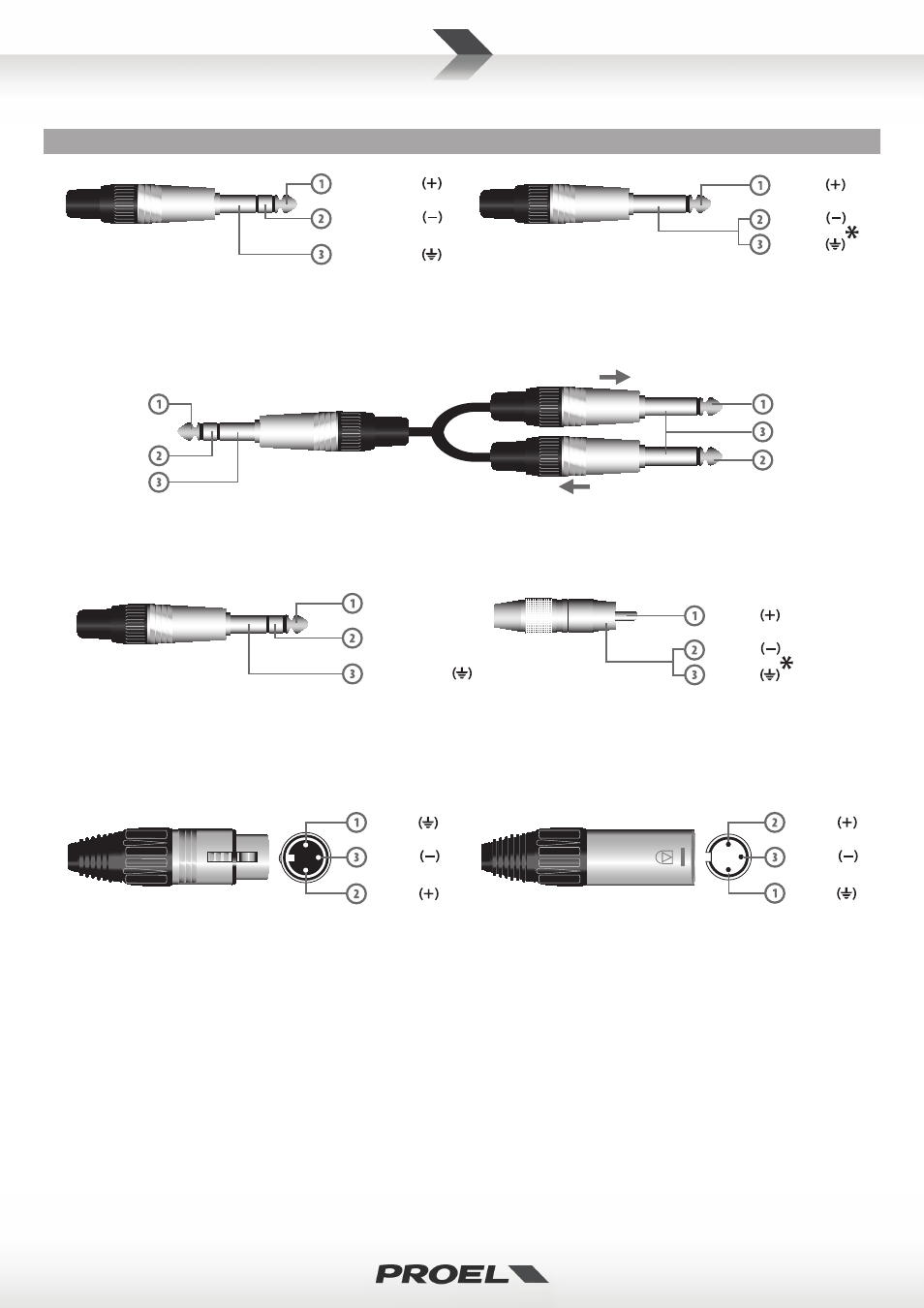

CONNECTIONS CONNESSIONI
SEND
RETURN
INSERT
Jack stereo INSERT
Stereo Jack
LINE IN, OUT vari
Jack (bilanciato) LINE IN, various OUT
Jack (balanced)
(2x) Jack mono (2x) Mono Jack
PHONES
Jack stereo PHONES
Stereo Jack
MAIN MIX OUT
XLR bilanciato femmina MAIN MIX OUT
Balanced female XLR
proel code: PFS29 or PFS24 (optional)
Normally open momentary footswitch
Pedale a interruttore momentaneo normalmente aperto
tip - send
ring - return
sleeve - ground
tip - send
tip - return
sleeve - ground
ground
hot
cold
sleeve - ground
tip - hot
ring - cold
MIC INPUT
XLR bilanciato maschio MIC INPUT
Balanced male XLR
ground
hot
cold
tip - left
ring - right
sleeve - ground
2TRK IN, OUT
Jack (sbilanciato) 2TRK IN, OUT
Jack (unbalanced)
ground
hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground to
make cable from balanced to unbalanced
LINE IN, OUT vari
Jack (sbilanciato) LINE IN, various OUT
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
