10.2 C Mode – with one or more amplifiers per zone.
Configuration suitable for big installations.
In this mode, the ZONE8/Z8SLAVE switches selection of the call to the different zones no longer through
100V audio switching but directly switching and distributing the audio signal to the LINE level inputs of the
different power amplifiers, each one to its zone.

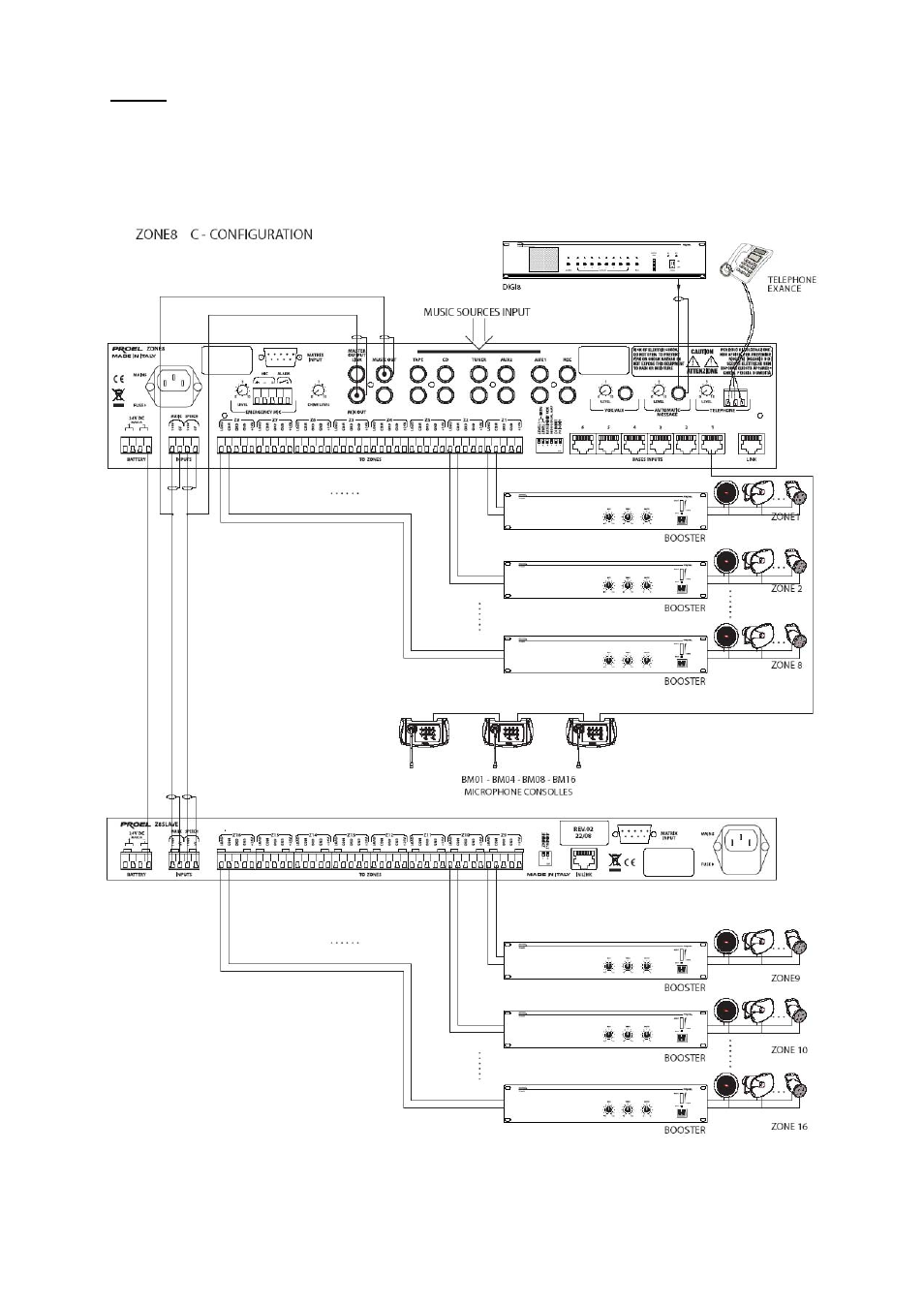

Make all connections as shown in the following diagram.
