Nota
In case 24Vdc power supply is supplied by batteries , please be
kindly informed that the apparatus has not been set to provide to the
batteries recharge .

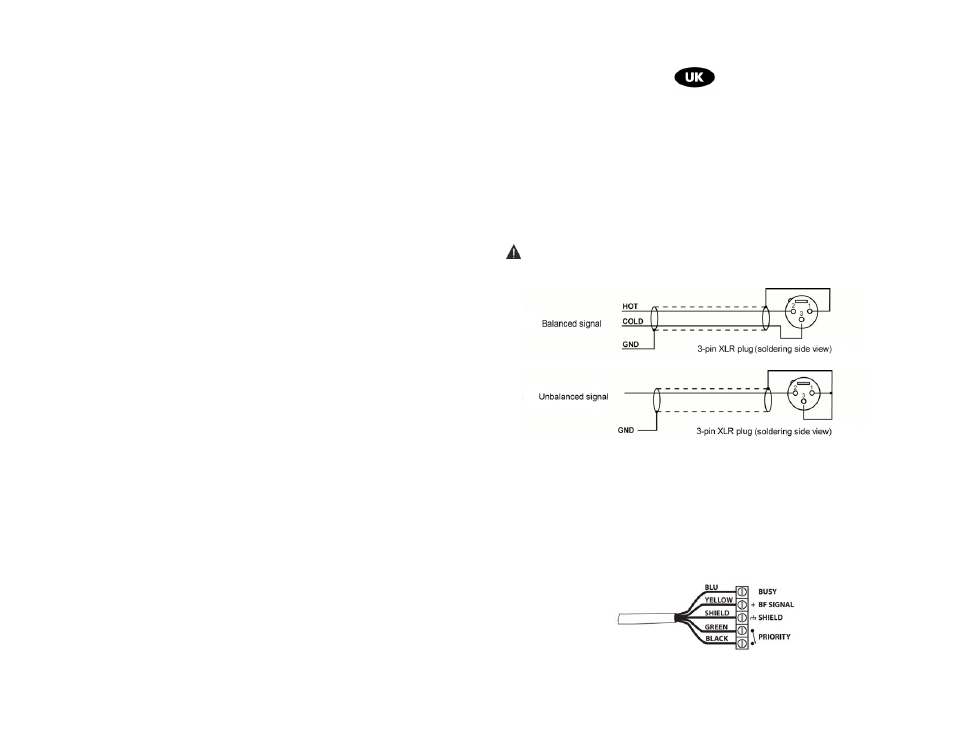

19. BALANCED/UNBALANCED INPUT CONNECTIONS
For Balanced and unbalanced connections, make reference to the
following schemes.
Attention
To prevent electric shock risks, do never touch the outputs when the unit is working .
To access to the speakers terminal screws (fig.2 rif. 10) unscrew to
remove the cover.
20. BM100A STAND MICROPHONE CONNECTIONS
Connect BM100A terminal to terminal screws 14 of fig.2 as follows:
