28
Using output AUDIO OUT (fig.1 ref.11) to pilot an external amplifier or other amplified acoustic cabinet
FREE50V3 connecting with JACK mono/RCA line cable the line output of one LINE with the input of the
second line.
Video Output
The apparatus reproduces DVD format. Connect the CVBS output (VIDEO OUT fig.1 rif.10) to CVBS
Monitor Input and set this in AV mode.
FREE50V3 is recommended to be used lifted up from the ground. For such purposes FREE50V3 ,
thanks to its fixing flange, can be set on the floor tripod -part reference (PA SPSK290BK) .

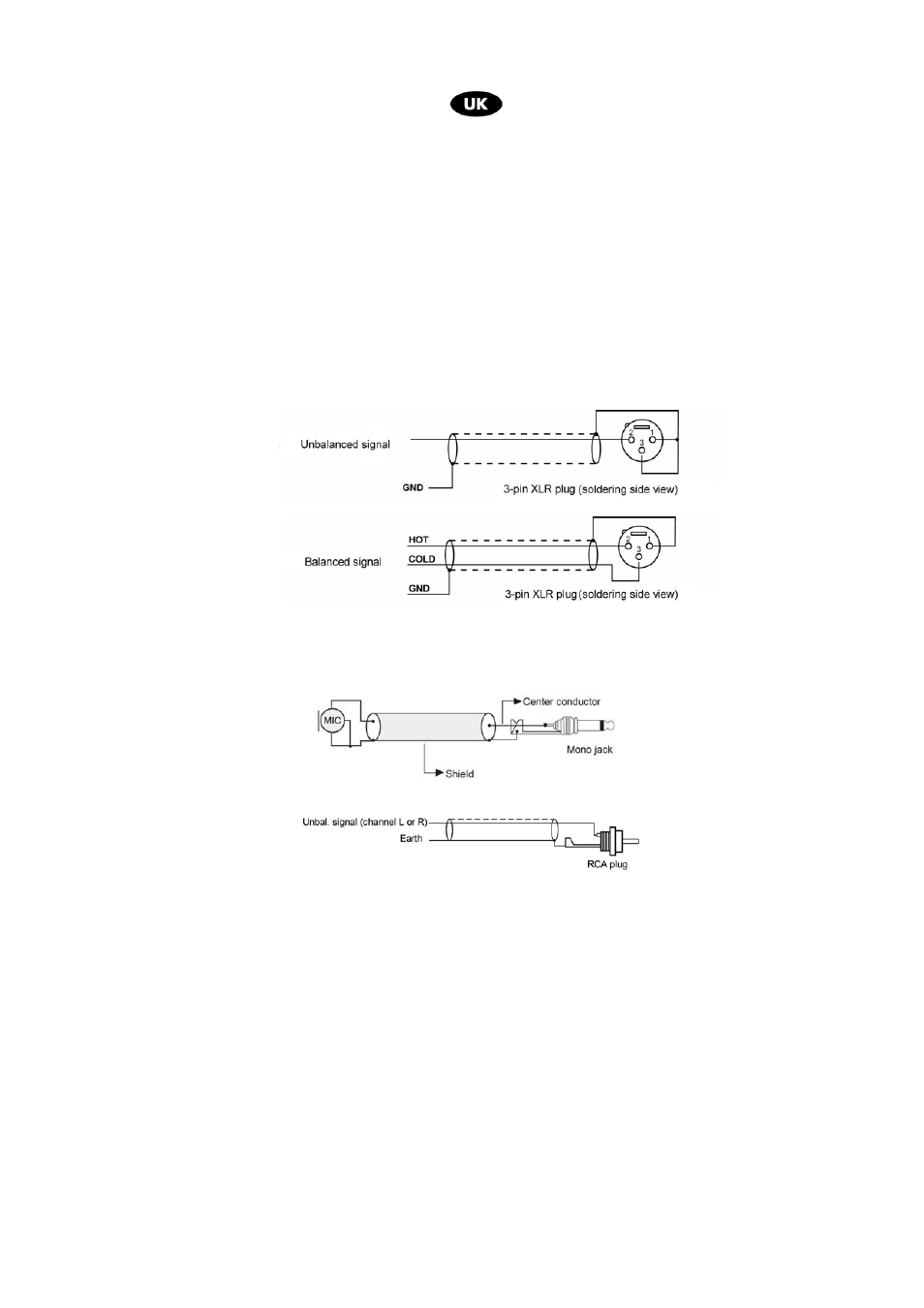

To realize the different possible connections revert to the following schemes:
Unbalanced connection:
Balanced connection:
Jack Mono connection unbalanced:
RCA connection:
