29. LINE VOLTAGE
This switch sets the AC voltage line of your country (usually it is set by factory and isn't necessary to
change it). The 115V setting is for mains line in the range of 105-120V~ and 230V setting is for mains line
in the range of 210-240V~.
WARNING: an incorrect setting of AC LINE VOLTAGE could damage seriously the internal
electronics!
WIRELESS MICROPHONE OPERATIONS
The FR2 Wireless Microphones system provided with the FREE10LT is a UHF PLL controlled system equipped
with IR sync, which provides a reliable and high quality signal transmission.
The FR2 Wireless Microphone system features 3 units: FR2R receiver, FR2H handheld transmitter and FR2B
body pack transmitter.
The FREE10LT is provided as standards with one handheld wireless microphone (FR2R + FR2H). An additional
wireless handheld microphone (FR2R + FR2H) or bodypack (FR2R + FR2B) can be installed as optional,
allowing the simultaneous use of 2 devices without interference between them.
FR2R is the UHF wireless microphone receiver:

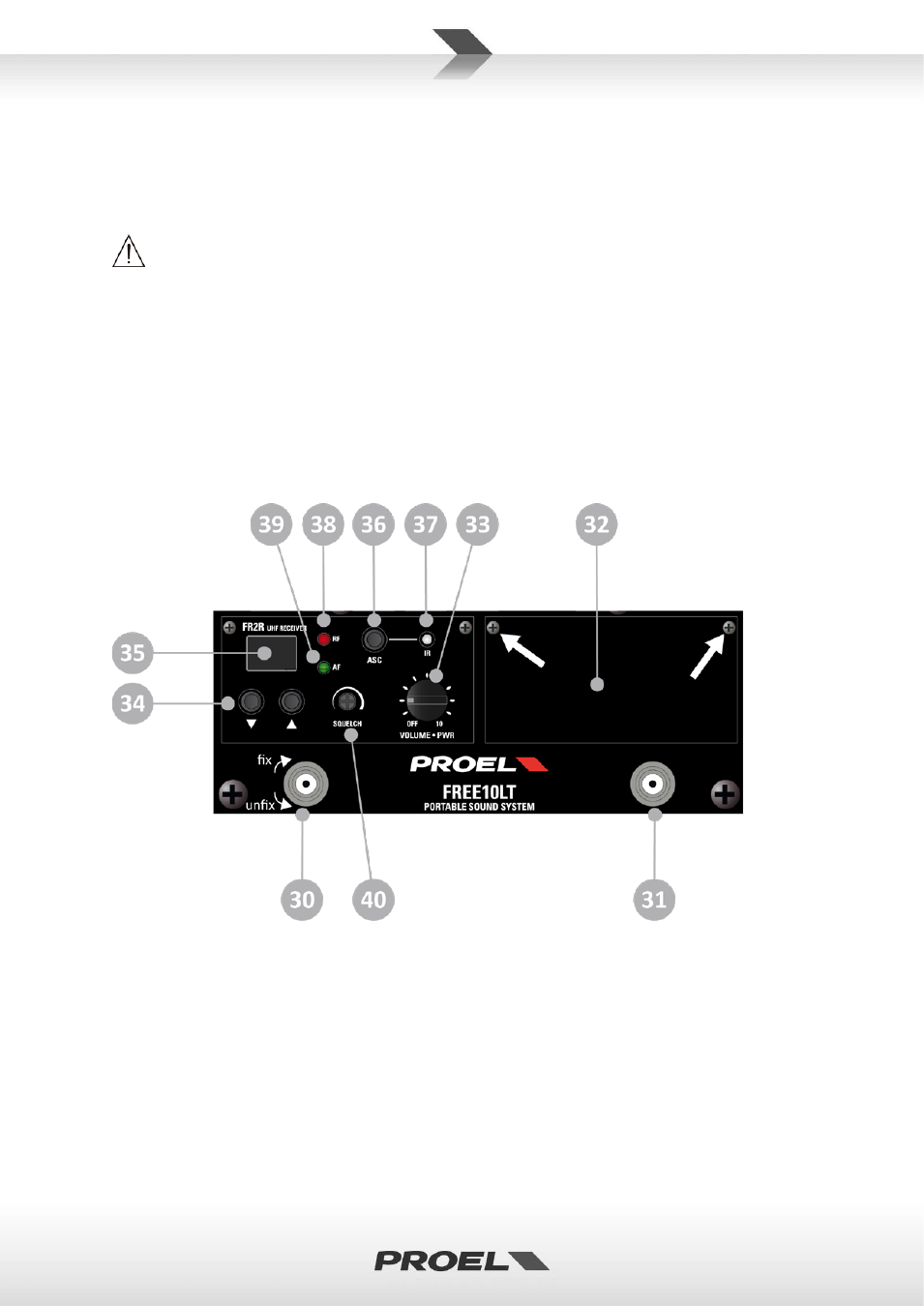

30. ANTENNA (receiver 1)
This is the antenna connector of the first receiver, where you have to connect the antenna supplied with
FREE10LT. In order to obtain a good transmission, raise up the receiving antenna during use and place
the receiver away from other metal objects and no more than 30m from the transmitter.
31. ANTENNA (receiver 2)
This is the antenna connector of the optional second receiver: don’t connect here the antenna if you
have only one wireless receiver.
32. 2 nd RECEIVER OPTIONAL SLOT
This is the slot where you have to install the optional second wireless receiver. The arrows show the
screws to be removed. For detailed instructions see further in this manual.
