14
Thank you for choosing this Proel product and for trusting our brand, which strives to be synonymous with
professionalism, precision, high quality and reliability. All of our products comply with EC regulations regarding audio
equipment for continuous use.
2. DESCRIPTION
This digital paging console with gooseneck microphone is microprocessor controlled and is to be exclusively used with
the digital MATRIX88.
BM8X8 features a high-sensitivity electret condenser microphone with a wide frequency response, 8 zone selection
buttons, an ALL button and a TALK button.
BM8X8 also features a switchable 2-note/4-note chime and is provided with a local 230÷115V~/24V DC power supply.
Matrix and console communicate through a CAT5UTP cable.
This product is CE compliant

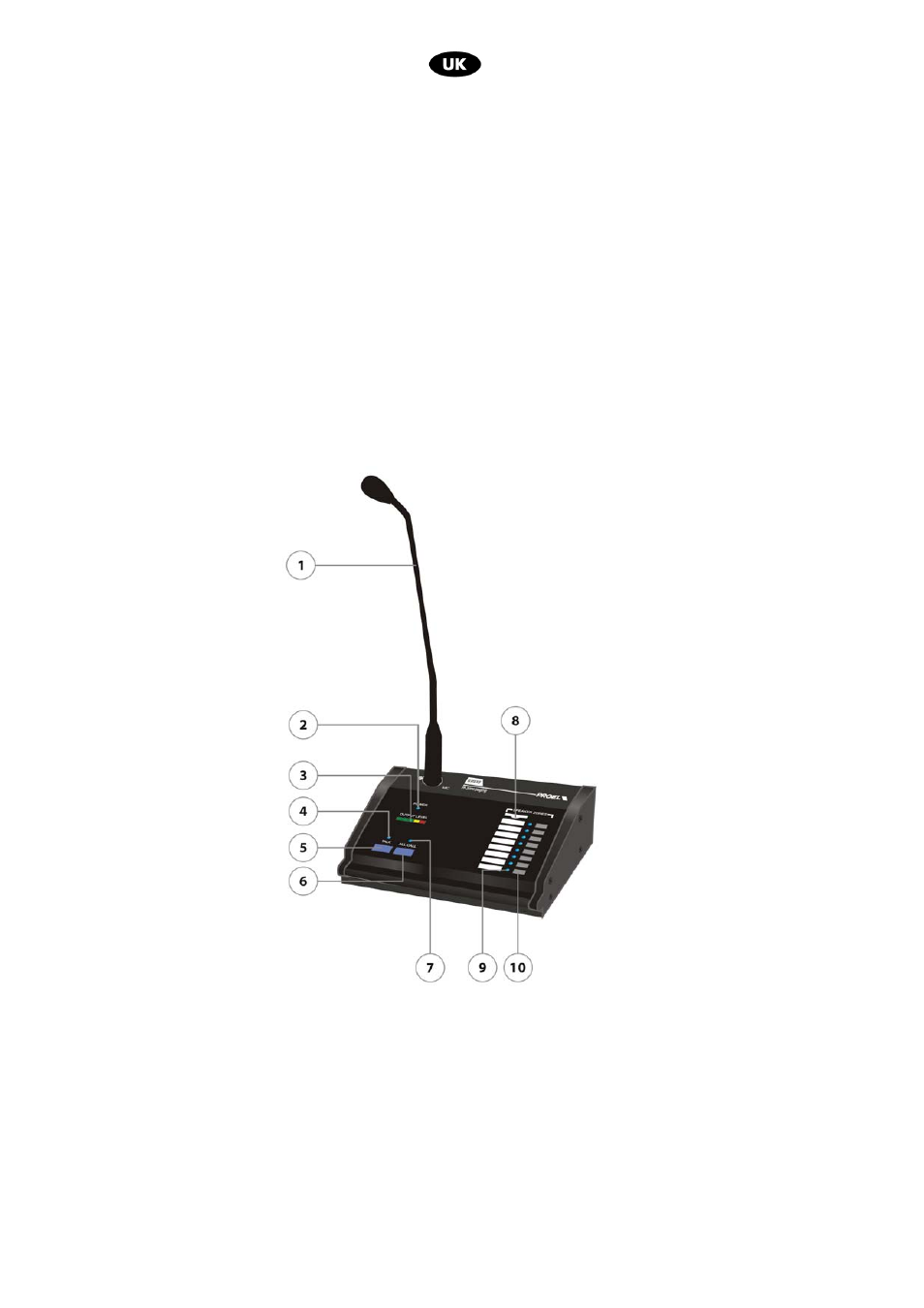

3. FRONT
PANEL
fig.1
1. Goose neck microphone
2. ON/OFF LED
If the blue LED is lit, the console is turned on
3. Output Level Indicator
This 5-position LED indicates the output level status
