1. DESCRIPTION
PA ACDT180 part has been designed for music programs diffusion and microphone announcement for all PA
systems applications. This unit features:
• High design and accuracy aesthetic
• Wide frequency response : 50 Hz – 15KHz ± 3 dB
• Low distortion level and low noise level
• FM/AM digital tuner, 14 FM memories and 7 AM memories, CD/MP3 player. ON/OFF switch for each
section and independent volume control.
• Master Volume control
• LOW / High Tone control
• LED Level indicator
• Four microphone lines balanced inputs with phantom 48V power supply to be selected.
• Two lines inputs to be rear switched .
• MIC1 input with automatic mute function allowing an audio signal insertion and MUTE status for the other
active music sources (CD, Tuner, Tape, AUX)
• Availability of a Further priority key when using BM100 microphone paging stand
• Low impedance Loudspeakers output line (4/8/16 ohm) and high impedance output loudspeakers line
(70/100V)
• Tape output for recording purposes
• Main IN/OUT output for equalizer
• Central telephone input
• Tone chime alarm signal controlled by fire central alarm
• Main power supply Selector (115 – 230 V)
2. FUNCTIONS AND FRONT PANEL CONTROLS

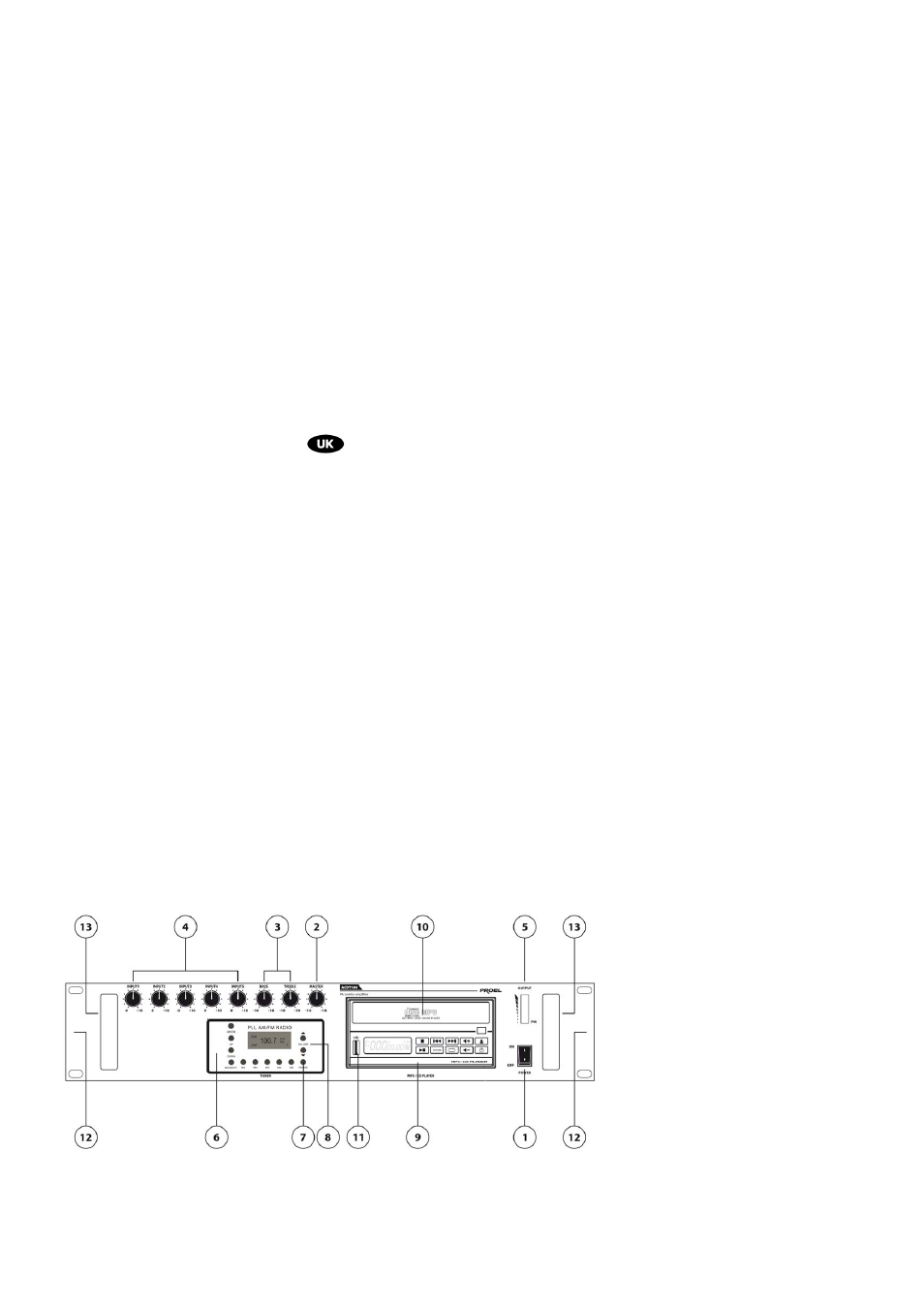

fig.1
1. Main switch power
2. Master volume control
Such key allows the output volume control.
3. Tones control
Tone control are possible for frequency interval between o +/- 10 dB for low and acute frequency band
and ensure the correct reproduced signal equalizing .
4. Inputs level control From 1 up to 5
