6. CONNECTION
Connect the unit to 230 V AC 50/60 Hz mains (117 V AC 50/60 Hz for 117 V version). Use the connection cables
provided to connect the daisy-chained stations to the 4 BASE INPUTs (figure 2, ref. 2) as shown in figure 5, paying
attention not to connect more than 30 stations to each line and no more than 64 stations altogether.
Closed-loop lines can be created with the optional CVMM3 3 m cable, as shown in figure 6. In this way no station will
be isolated in case of interruption one of the lines. The configuration shown in figure 6 cannot allow more than 30
stations on each loop.
In any case, the maximum limit of 64 stations cannot be exceeded.
The system can host more than one PRESIDENT station. They can be inserted at any position on the chain.

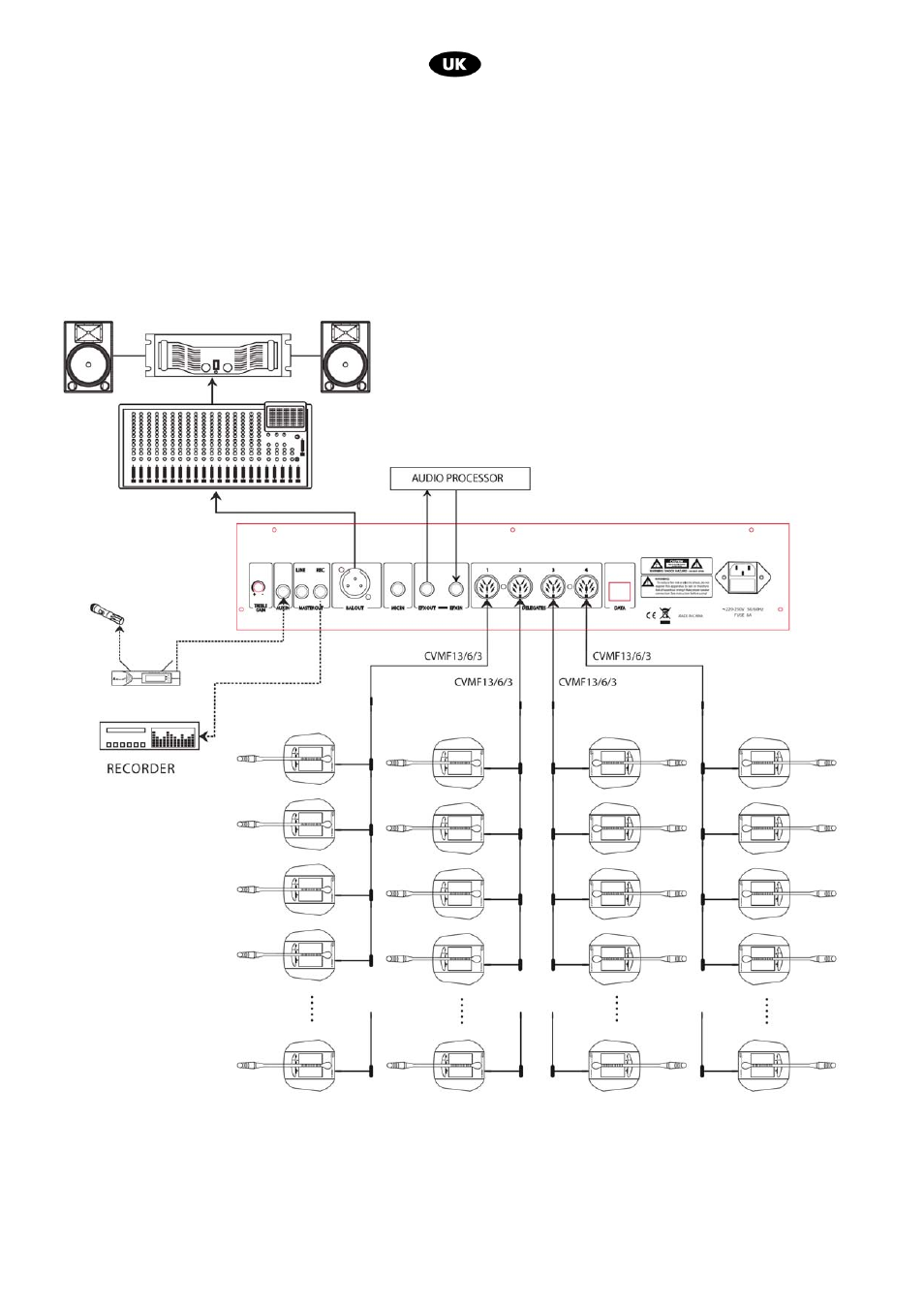

fig.5
