Thank you for choosing this Proel product and for trusting our brand, which strives to be synonymous with professionalism,
precision, high quality and reliability. All of our products comply with EC regulations regarding audio equipment for continuous use.
2. DESCRIPTION
R88 is a wall-mounted remote control to be combined with a MATRIX88 unit in the audio zone to which it is assigned. R88
controls the volume and the remote selection of 8 music programs, plus the OFF position and the Local Channel.
R88L can also be connected with a Line Input and a Microphone Input in the zone to which it is assigned. Each of these inputs
features an independent level control.
The remote control panel features a LED display that shows which source is selected. The arrows scroll up and down the audio input
channels and the 8 labels can be customized by the user to identify the sources. A UTP CAT5 cable provides power to the panel
from the matrix if the cable run between the two is no more than 50 m. Whenever the cable length is longer than 50 m, an additional
+ 24 V DC power supply will be needed.
A wall-mounting metal box for R88L is available.
Product complies with CE regulations
3. FRONT AND BACK PANEL

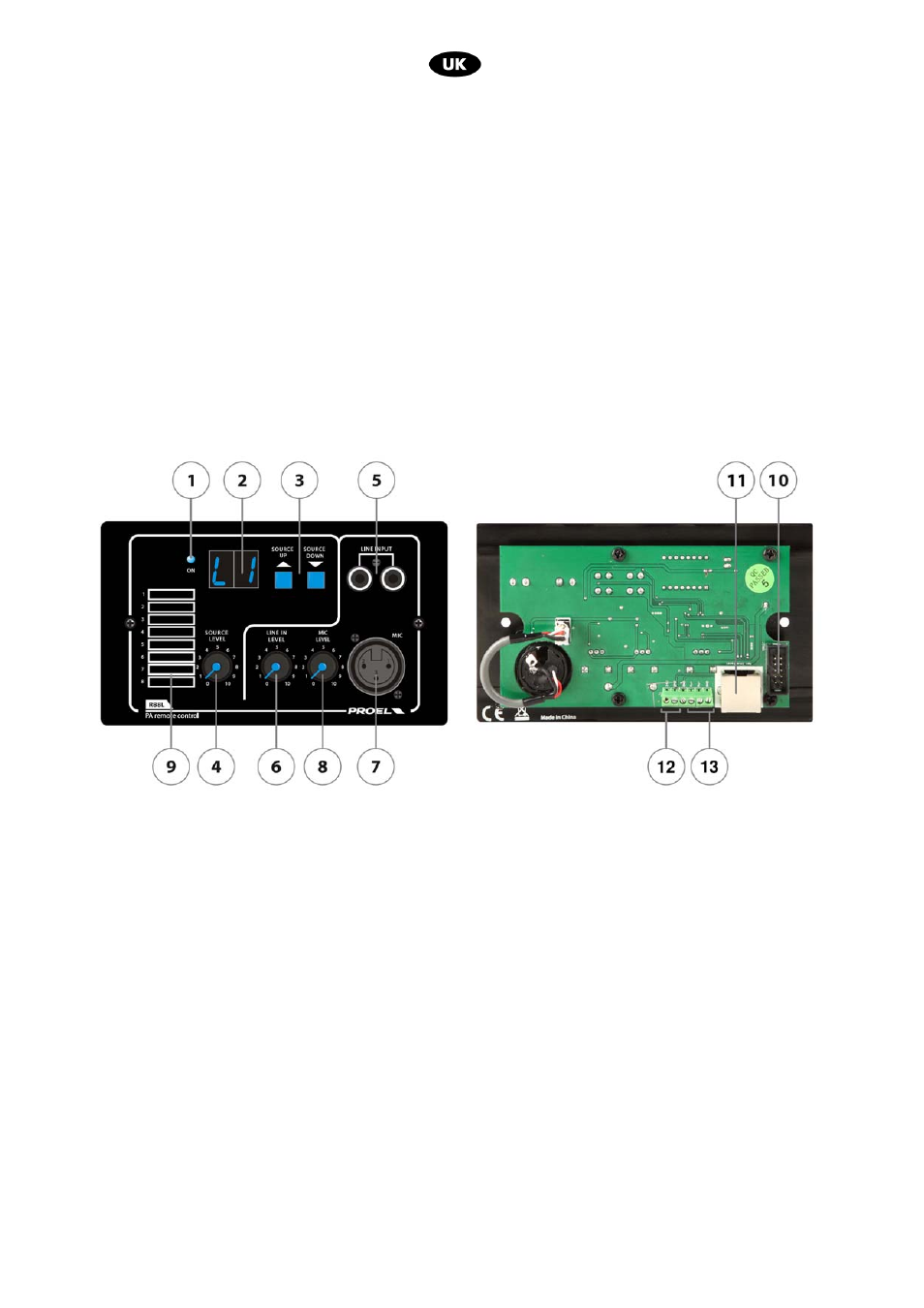

fig.1
1. ON/OFF Indicator
The LED indicator lights up when the unit is ON
2. Source Channel Display
It displays source channels from 01 to 08, Local Input L and the OFF position (no audio source selected)
3. SOURCE UP & SOURCE DOWN
These two buttons scroll up or down the audio source input channels 01 to 08, to the local input to the OFF position
4. SOURCE LEVEL
This ten-position control adjusts the output volume of the selected source
5. LINE INPUT
Local Line Input with double RCA connector.
To activate the Local Channel Input select the L Channel on the Display. Connect sources such as CD players, MP3
players, tuners, etc
6. LINE IN LEVEL
Ten-position level control of the Local Line Input Volume
7. MIC
Local Microphone Input with XLR connector.
To activate this input select the L Channel on the display.
Connect only dynamic microphones to this input
