6
LINE IN
Jack (bilanciato) LINE IN
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
MIC INPUT
XLR bilanciato maschio MIC INPUT
Balanced male XLR
ground
hot
cold
INPUT B, REC OUTPUT
RCA (sbilanciato) INPUT B, REC OUTPUT
RCA (unbalanced)
ground
hot
LINE IN, PRE OUT
Jack (sbilanciato) LINE IN, PRE OUT
Jack (unbalanced)
USCITA ALTOPARLANTI SPEAKER OUTPUT
note: use the power cable supplied
nota: usare il cavo di potenza fornito
ground
tip - hot
*nota: connettere insieme 2 e 3
per cavi da bilanciato a sbilanciato
*note: connect both 2 and 3 to
make cable from balanced to unbalanced

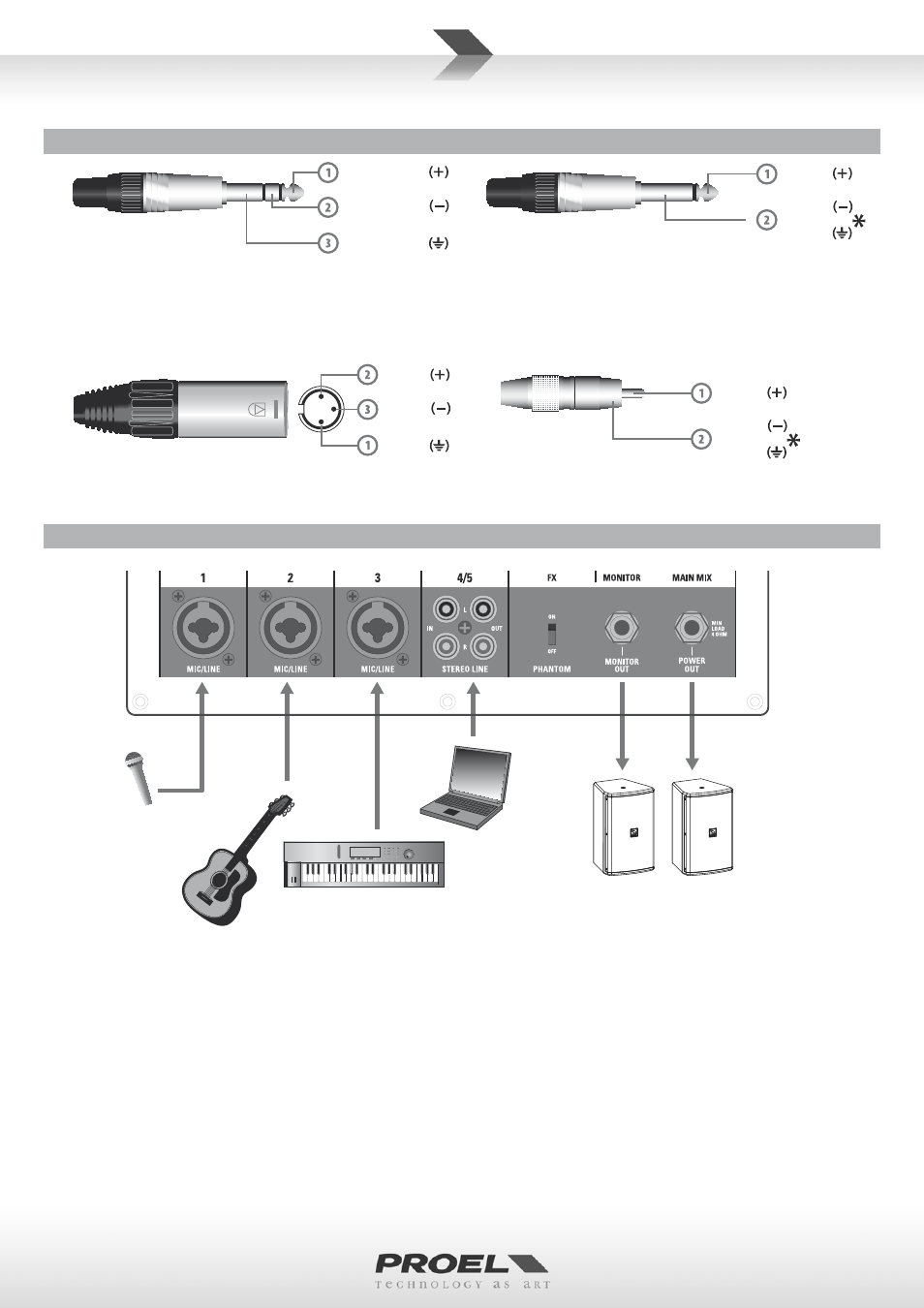

CONNECTIONS (FIG.3) CONNESSIONI (FIG.3)
CONFIGURATION EXAMPLE (FIG.4) ESEMPIO CONFIGURAZIONE (FIG.4)
KEYBOARD
GUITAR
VOCAL MIC
PERSONAL
COMPUTER
LT6A or other
active speaker
LT6P or other
passive speaker
(75W applicable power and
4 ohm minimum impedance)
