6
INTRODUCTION
Thank you for choosing this PROEL product and for your trust in our brand, synonymous of professionalism,
accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in
professional applications.
DESCRIPTION
PROEL FREE systems gives you the freedom to perform your music or play your sound anywhere without
worrying about where to plug the power cord, how to connect your MP3 player or how to set your
microphone. FREE8LT is battery powered combo sound systems with a full set of features and the sound you
don’t expect from this kind of products. It includes a versatile MP3 player with USB port, SD slot and
BLUETOOTH connection, featuring a large LCD and remote control. FREE8LT features a rugged MDF cabinet
with black PVC finishing and includes a built-in retractable handle and roller wheels, allowing the system to
be taken everywhere. It is also fitted with an adapter for standard speaker stand. With its 2-way
configuration featuring a high-efficiency 3” tweeter, FREE8LT is the perfect combo system for mobile
musicians, vocal P.A. and a wide range of indoor or outdoor events. It provides maximum portability, quality
sound and good coverage in an extremely versatile and affordable package. The rechargeable 12V battery
provides up to 2-3 hours of mains free continuous operation.

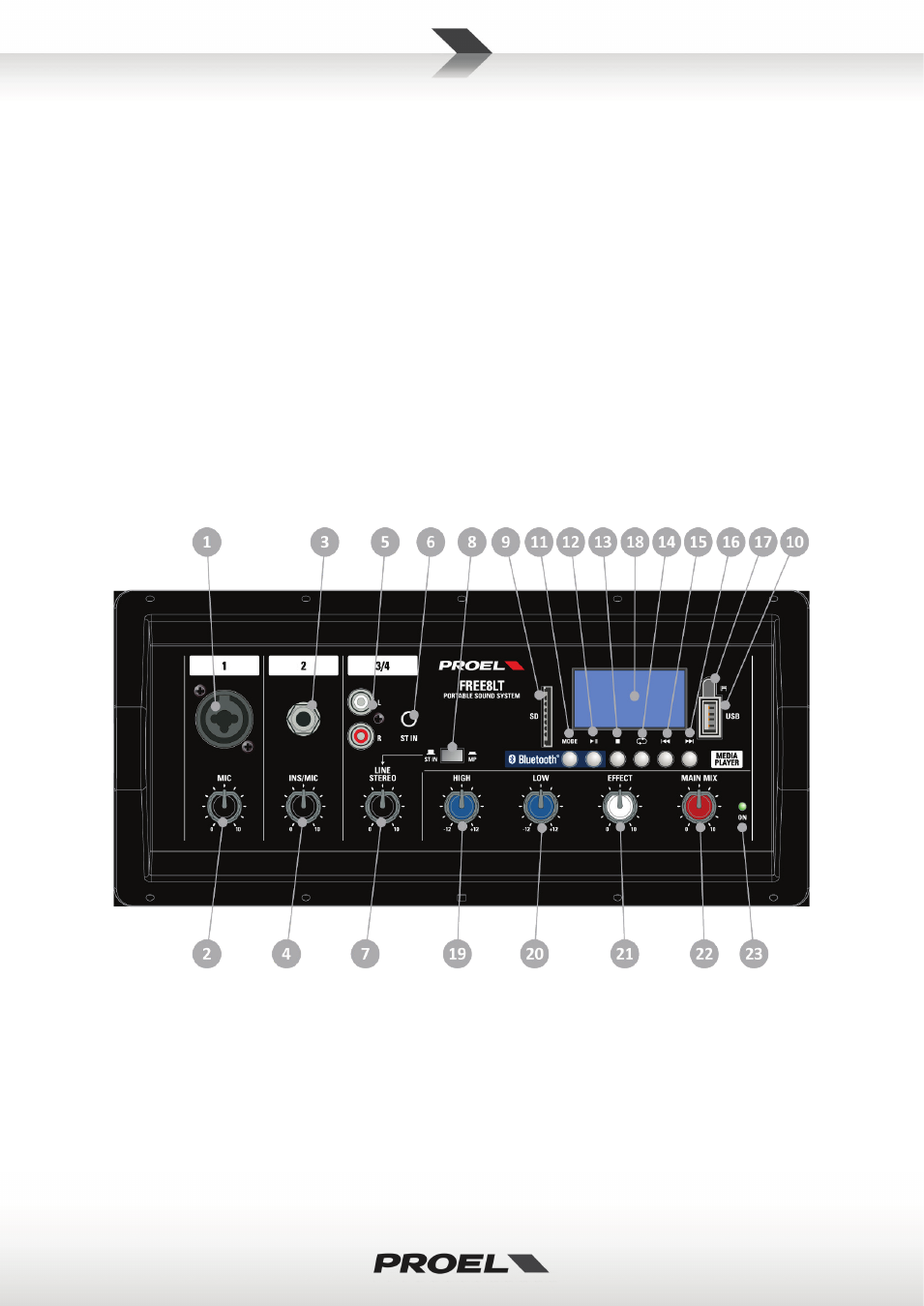

MAIN PANEL OPERATIONS
1. MIC 1 IN
This is a female combo connector that accepts a XLR or a JACK plug from any dynamic balanced or
unbalanced microphone. The XLR input is wired as follows:
Pin 1 = shield or ground
Pin 2 = + positive or "hot"
Pin 3 = - negative or "cold"
The JACK input is wired as follows:
Tip = + positive or "hot"
Sleeve = shield or ground
