4

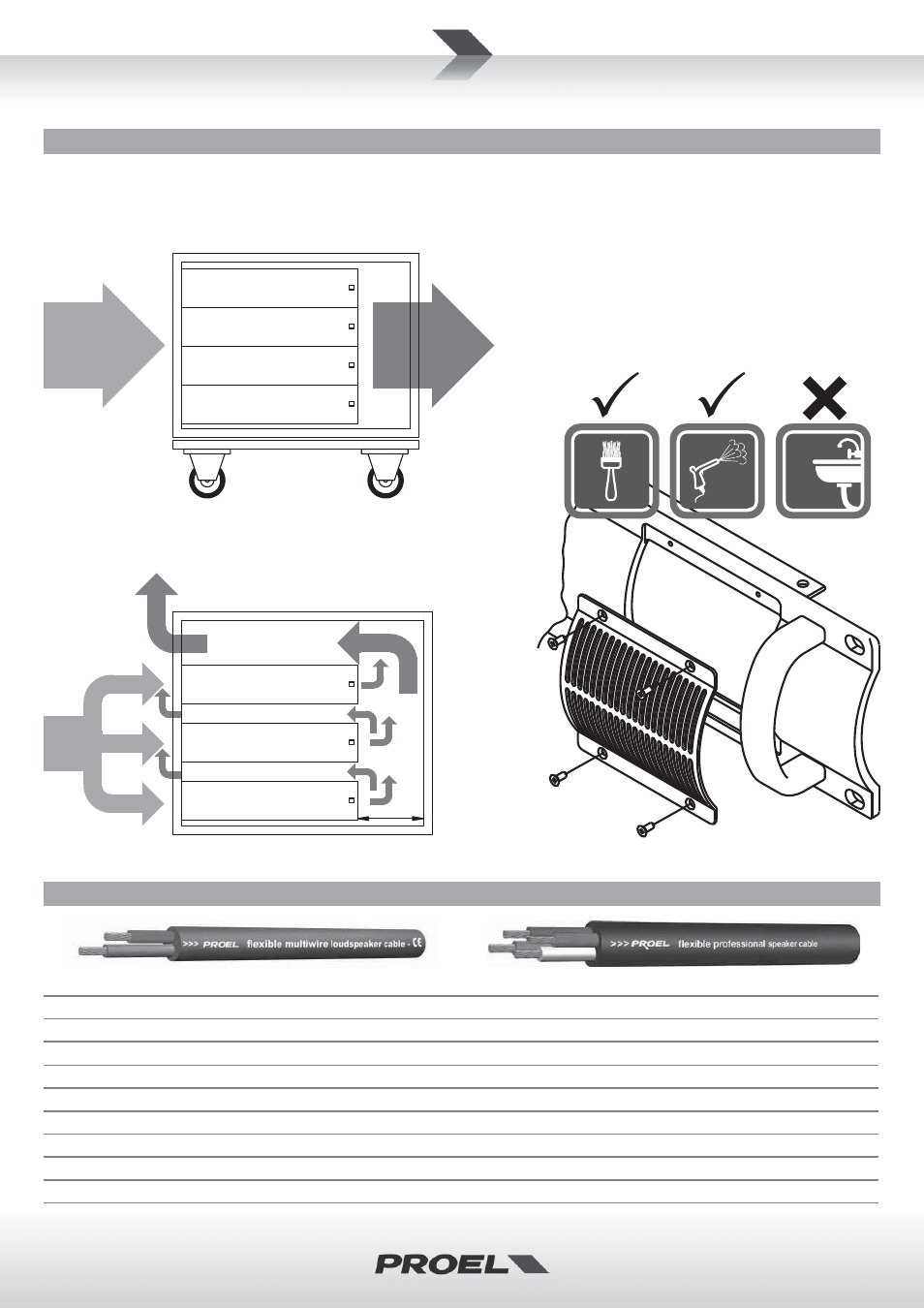

SETUP AND RACK MOUNTING (FIG. 1 / 2)
INSTALLAZIONE A RACK (FIG. 1 / 2)
COLD AIR
FRONTALE
8U OPEN RACK
10U closed RACK
RACK aperto 8U
RACK chiuso 10U
POSTERIORE
FRONT
REAR
FRONTALE
POSTERIORE (chiuso)
FRONT
REAR (closed)
ARIA FREDDA
COLD AIR
ARIA FREDDA
HOT AIR
HOT AIR
ARIA CALDA
ARIA CALDA
15 cm
6 inch
RECOMMENDED INSTALLATION
INSTALLAZIONE RACCOMANDATA
INSTALLATION WITH CLOSED BACK
INSTALLAZIONE CON RETRO CHIUSO
FIG.1
FIG.2
LOUDSPEAKER CABLE
CAVO ALTOPARLANTE
ENGLISH: Loudspeaker Line Losses (maximum permissible line lengths for 0.5dB losses, voltage or spl)
ITALIANO: Perdite di collegamento linee Altoparlanti (massima lunghezza possibile per perdite inferiori a 0.5dB, tensione o spl)
4 ohm load
8 ohm load
Wire sec on data
PROEL recommended cables
feet meter feet meter mm² AWG
2 wires
4 wires
2 wires Fire-resistant
75
25
150 50
4.0
12
HPC624
HPC644
HPC624FRS
50
17.5
100 35
2.0
14
HPC620
HPC640
HPC620FRS
30
10
60
20
1.5
16
HPC610
HPC610FRS
20
7.5
40
15
1.0
18
HPC600
this is a short extrac on of the wide assortment of cables available from PROEL, please visit our website at www.proelgroup.com
