Multi-Contact MA223 - Manuale

Advanced Contact Technology
www.multi-contact.com 1 / 8
PV-ADBP3/.../GWD PV-ADBP3/.../GWD
MC-K.../PV-ADBP3/.../GWD MC-K.../PV-ADSP3/.../GWD
MA223 (it_en)
Instruzioni per il montaggio MA223 (it_en)
Assembly instructions
Connettore femmina per montaggio a pannello
PV-ADBP3/.../GWD
Connettore maschio per montaggio a pannello
PV-ADSP3/.../GWD
Connettore femmina per montaggio a pannello
con cavor MC-K.../PV-ADBP3/.../GWD
Connettore maschio per montaggio a pannello
con cavo MC-K.../PV-ADSP3/.../GWD PV-Female panel receptacle PV-ADBP3/.../GWD
PV-Male panel receptacle PV-ADSP3/.../GWD
PV-Female panel receptacle with cable
MC-K.../PV-ADBP3/.../GWD
PV-Male panel receptacle with cable
MC-K.../PV-ADSP3/.../GWD
Indice
Istruzioni per la sicurezza ............................................................2
Utensili di montaggio ................................................................3
Cavo de collegamento ...............................................................3
Preparazione del cavo ................................................................4
Raccordi mediante crimpatura ..................................................4
Crimpatura .................................................................................4
— con pinza per crimpare PV-CZM-16100A ...............................4
Montaggio dei connettori a pannello ........................................5
Angolo di curvatura del cavo .....................................................6
Connessione ..............................................................................6
Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Connecting lead ........................................................................3
Cable preparation ......................................................................4
Crimp connections ....................................................................4
Crimping ....................................................................................4
— with crimping pliers PV-CZM-16100A ....................................4
Assembly of panel receptacles ..................................................5
Cable routing .............................................................................6
Engagement ..............................................................................6

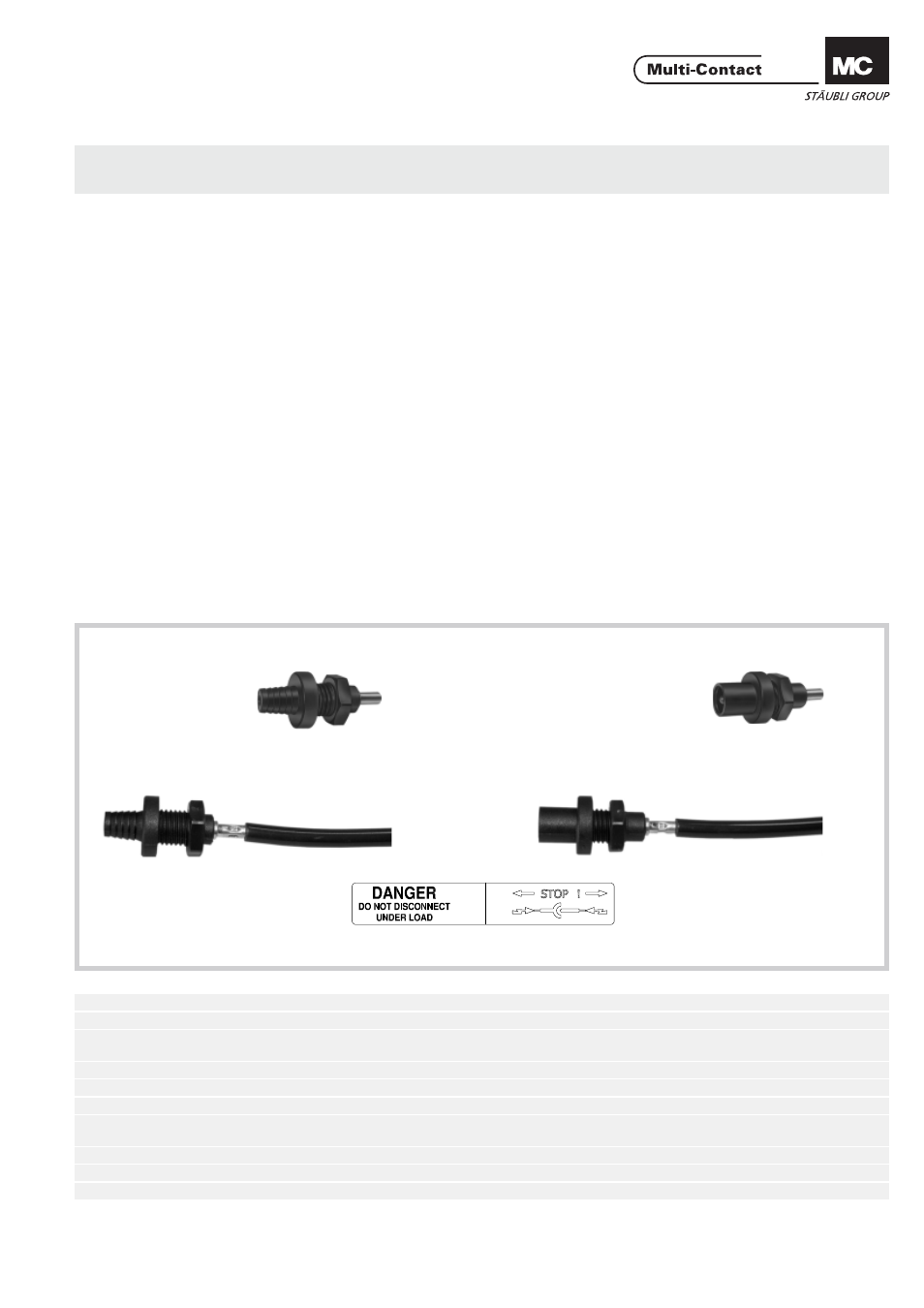

Connettore femmina per montaggio a pannello
Female panel receptacle Connettore maschio per montaggio a pannello
Male panel receptacle
con cavo / with cable con cavo / with cable
Etichetta adesiva
Sticker
Dati tecnici Technical data
Sistema di connettori Connector system Ø 3mm
Tensione misurata Rated voltage 1000V DC (IEC)
Corrente nominale Rated current
20A (2,5mm 2 , 4mm²)
30A (6mm²)
Tensione di prova Test voltage 6kV (50Hz, 1min.)
Intervallo di temperatura ambiente Ambient temperature range -40°C...+85°C (IEC)
Temperatura limite superiore Upper limiting temperature 105°C (IEC)
Classe di protezione, innestato
non innestato
Degree of protection, mated
unmated
IP65
IP2X
Cat. di sovratensione / Grado di imbrattamento Overvoltage category / Pollution degree CATIII / 2
Resistenza di contatto dei connettori a innesto Contact resistance of plug connectors 0,5mΩ
Classe di protezione Safety class II
