Connections (fig.3) connessioni (fig.3), Configuration example esempio configurazione – Proel MI5 Manuale d'uso
Pagina 7
7

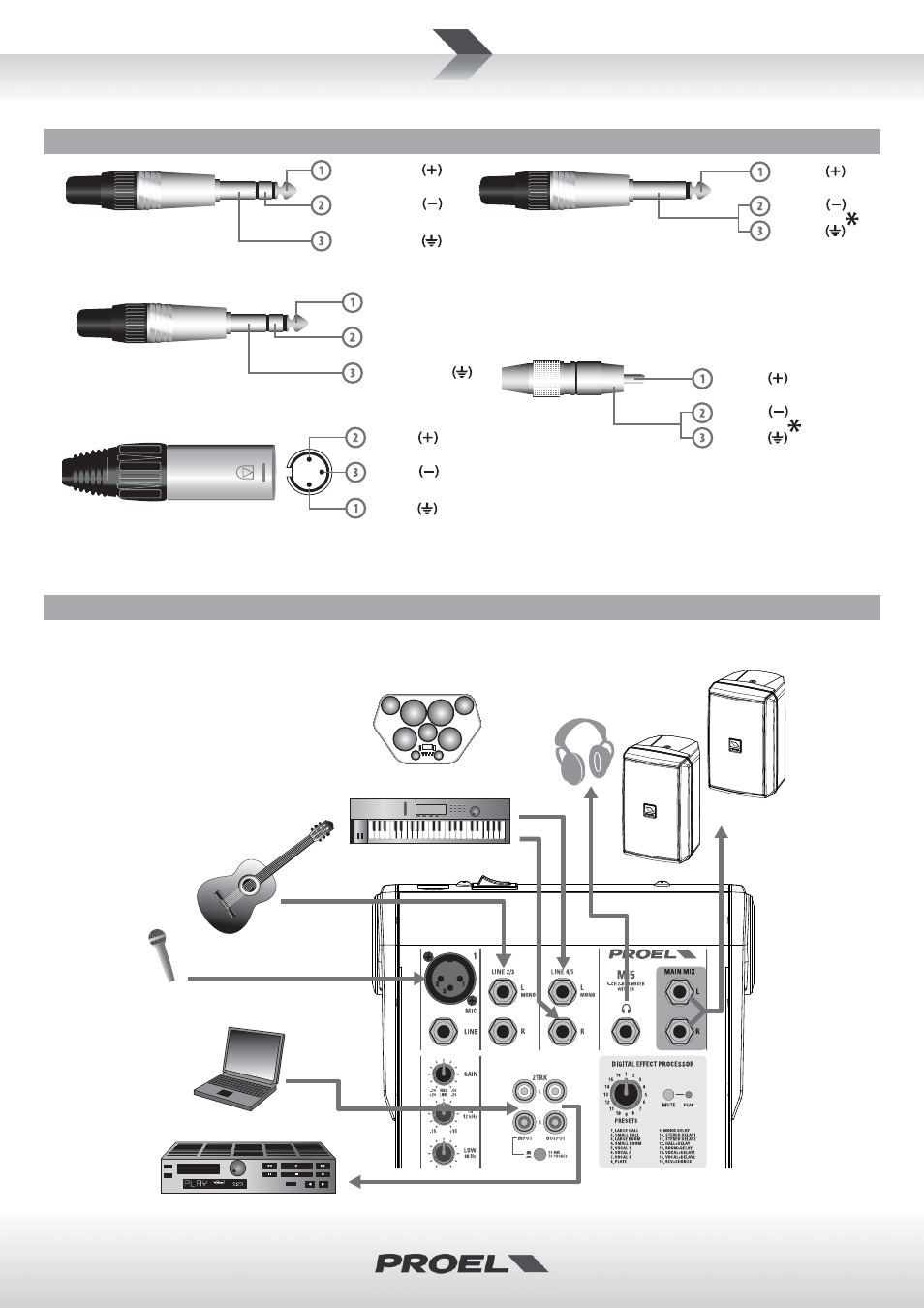

CONNECTIONS (FIG.3)
CONNESSIONI (FIG.3)
LINE IN, OUT vari
Jack (bilanciato)
LINE IN, various OUT
Jack (balanced)
sleeve - ground
Ɵp - hot
ring - cold
LINE IN, OUT vari
Jack (sbilanciato)
LINE IN, various OUT
Jack (unbalanced)
ground
Ɵp - hot
cold
*nota: conneƩere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
PHONES
Jack stereo
PHONES
Stereo Jack
Ɵp - leŌ
ring - right
sleeve - ground
2TRK IN, OUT
Jack (sbilanciato)
2TRK IN, OUT
Jack (unbalanced)
ground
hot
cold
*nota: conneƩere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground to
make cable from balanced to unbalanced
MIC INPUT
XLR bilanciato maschio
MIC INPUT
Balanced male XLR
ground
hot
cold
CONFIGURATION EXAMPLE
ESEMPIO CONFIGURAZIONE
VOCAL MIC
ACOUSTIC
GUITAR
MP3 / CD / DVD PLAYER - RECORDER
HEADPHONES
FLASH5A desktop monitors
or other AUDIO SYSTEM
PERSONAL COMPUTER WITH
AUDIO IN/OUT CAPABILITY
DRUM MACHINE
or KEYBOARD
