Thank you for choosing this Proel product and for trusting our brand, which strives to be synonymous with professionalism,
precision, high quality and reliability. All of our products comply with EC regulations regarding audio equipment for continuous use.
2. DESCRIPTION
LOC02 is a wall-mounted remote panel featuring two XLR microphone inputs to be combined with a MATRIX88 central unit. It
operates the connected microphones within the audio zone to which the control is assigned. The MUTE button mutes the music
program coming from the central unit (MATRIX88) to reproduce only the signals coming from the microphone inputs.
Volume and tone levels of each microphone input can be adjusted separately.
A UTP CAT5 cable provides power to the panel from the matrix if the cable run between the two is no more than 50 m. Whenever
the cable length is longer than 50 m, an additional + 24 V DC power supply will be needed.
A wall-mounting metal box for LOC02 is available.
This product is CE compliant.
3. FRONT AND BACK PANEL

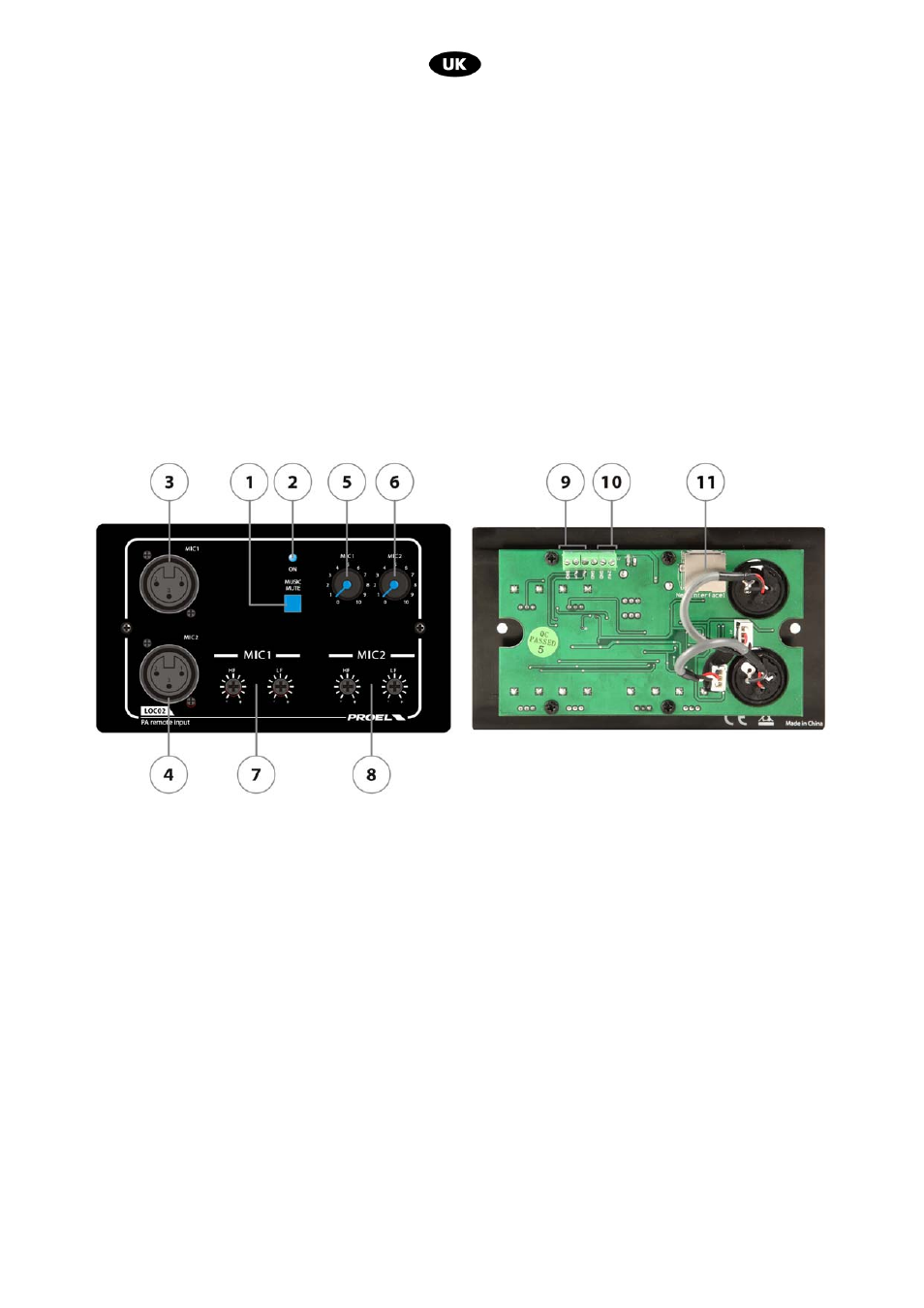

fig.1
1. MUSIC MUTE
This button mutes the music program coming from MATRIX88 and only the local microphone inputs will be reproduced
2. ON/OFF Indicator
The LED indicator lights up when the unit is ON
3. MIC 1
Local Microphone Input 1 with XLR connector.
This input should be connected only to dynamic microphones
4. MIC 2
Local Microphone Input 2 with XLR connector.
This input should be connected only to dynamic microphones
5. MIC 1 (Level)
Volume control for Local Microphone Input 1
6. MIC 2 (Level)
Volume control for Local Microphone Input 2
7. MIC 1 (Tone control)
High and Low tone control for microphone input 1
8. MIC 2 (Tone control)
High and Low tone control for microphone input 2
