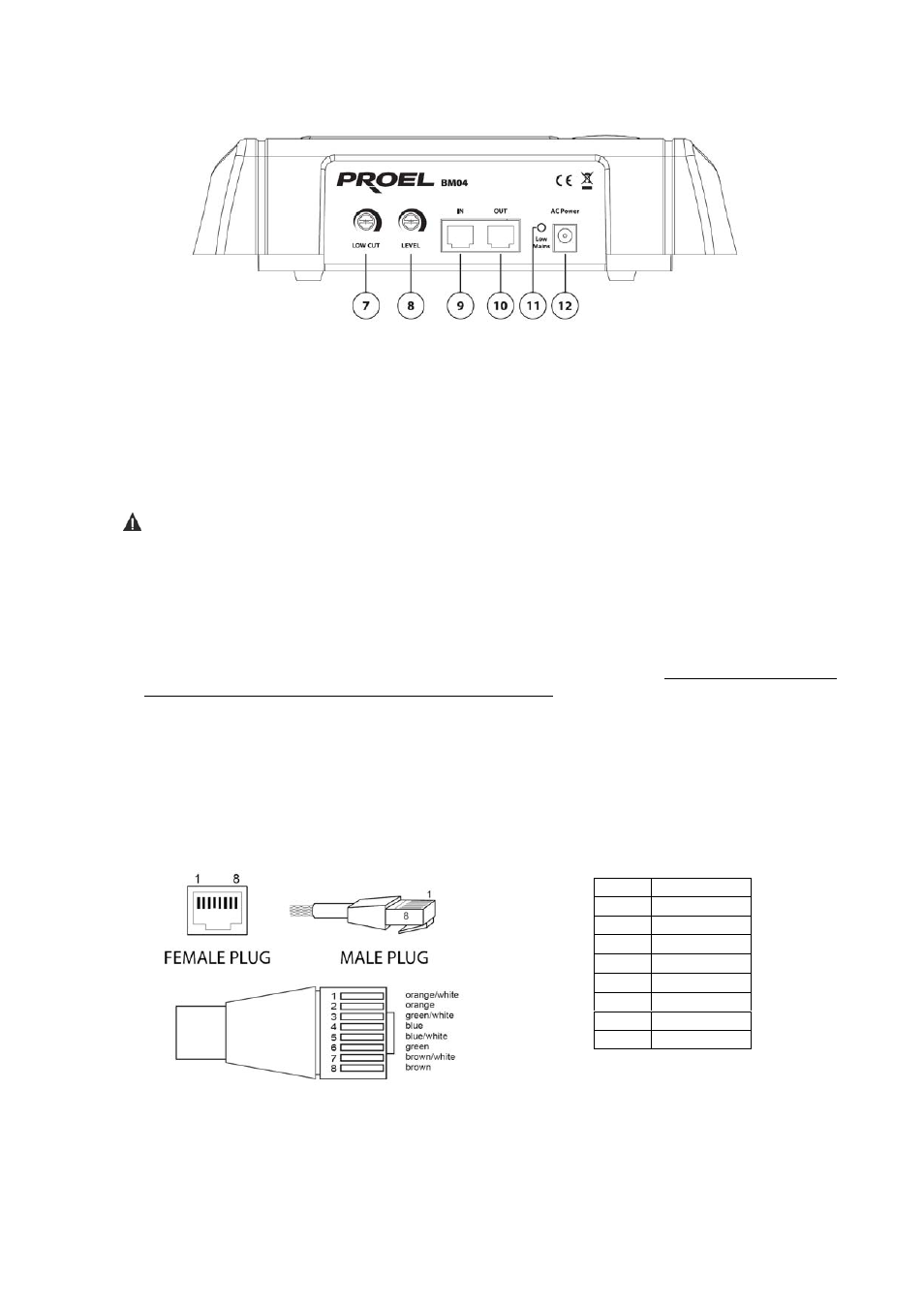

5. REAR PANEL
fig.2
7 Pass-high tone control
8 Output level control
9 CAT5 plug cable for LINE input
10 CAT5 LINE output
11 Led indicator when direct ZONE8 power supply purposes are not sufficient
12 Local plug for 12Vac power supply purposes
6. INSTALLATION AND POWER SUPPLY FEATURES
Warning
• Do not set the unit in ambient subject to vibration, humidity or dust.
• Contact authorized installer to avoid to damage the unit while installation steps.
• The microphone stand is anti sliding stem supports equipped for desk use purposes.
Alternatively the stands can be half desk flush mounted .
On rear microphone call station 2 RJ45 (IN/OUT) are available for the direct ZONE8 connections
throughout CAT5 UTP cable. On ZONE8 unit are present n° 6 buses for RJ45 input. On each of
these inputs only a maximum of 3 microphone stands can be cascade (Daisy-Chain connection
system) for a maximum total of 18 microphone call stations.
NB – ZONE8 has been designed to ensure a direct microphone call station power supply. But for
long flow (over 200/250 meters) the power supply levels falling makes necessary and inevitable to
apply to a local source for call microphone stations power supply purposes and schedule to use
The optional (to be purchased separately) BMPWS (230Vac/12Vac 50/60Hz – 500mA). Such
system status is highlighted when led indicator lights (fig.2-ref.11).
Details for microphone call station connections with UTP CAT5 cable and RJ45 connector
accordingly to standards
EIA/TIA – 568B:
Pin N° Assignment
1 Data “+”
2 Data “-“
3 +15V
4 +15V
5 +15V
6 GND
7 GND
8 GND
