Thank you for choosing one of Proel products, and for your confidence towards our brand, synonymous of
professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for the
permanent and continuous use in professional installation systems.
2. DESCRIPTION
Proel Digital microphone call stations BM08, BM04 and BM01 are designed for a complete microprocessor
control and only for use with ZONE8 Voice/Music Proel unit: digital panel for music background and
announcement in eight different zones.
These call stations are condenser electret microphone equipped to ensure a high sensibility level and a
large band frequency response.
The model BM16, BM08 and BM04 are keyboard equipped. BM08 and BM04 with respectively 8/4keys +
general call for respectively 8/4 different zones whilst BM01 is only one key equipped because designed
only for general call.
These microphone call stations are engineered for advanced Digital audio transmission and zones
selection purposes throughout CAT5UTP cabling and RS485 transmission technology
Note: the BM16 must be used with the 16 zones extension of the ZONE8 (by Z8SLAVE).
3. FUNCTIONS AND CONTROL
Main functions:
• Electret microphone flexible stem equipped .
• Body in plastic with anti scratch, shock resistant material and anti sliding support stems
• Tone and level output control purposes.
• Output audio signal without nor attenuation or alteration due to signal long flow because of digital
microphone signal transmission purposes.
• Designed for zone microphone call and general call.
• “Busy” lines status led indicator.
• Power supply purposes directly by ZONE8 unit. For long lengths an eventual external power source
to set locally can be necessary.

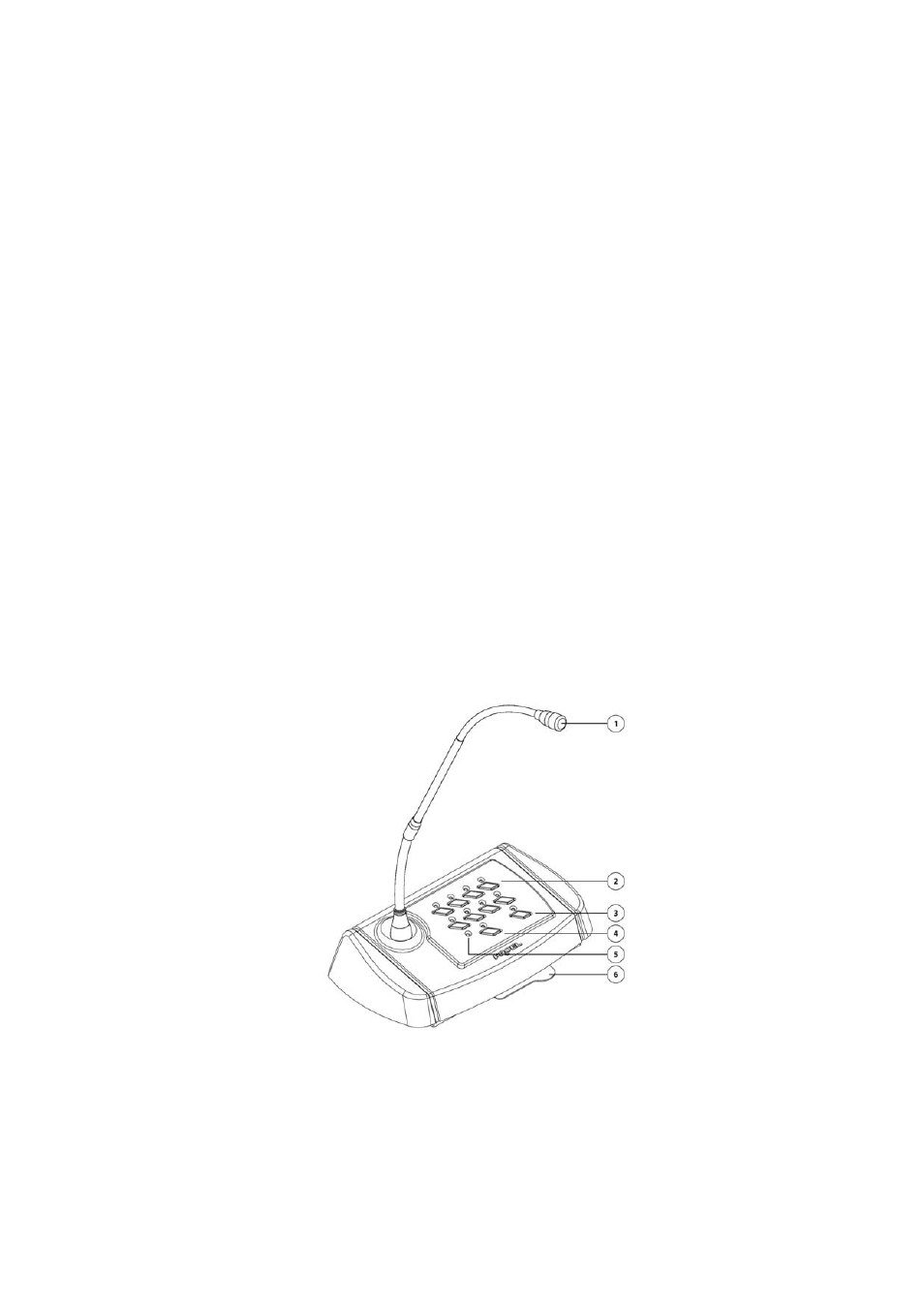

4. FRONT PANEL
fig. 1
1 Electret Microphone
2 Microphone activation key
3 Zones selection respective keys and led for activation status indication
4 General call key
5 Busy system status led indicator
6 Extractible Label for zones memo
