• 24V DC input terminals

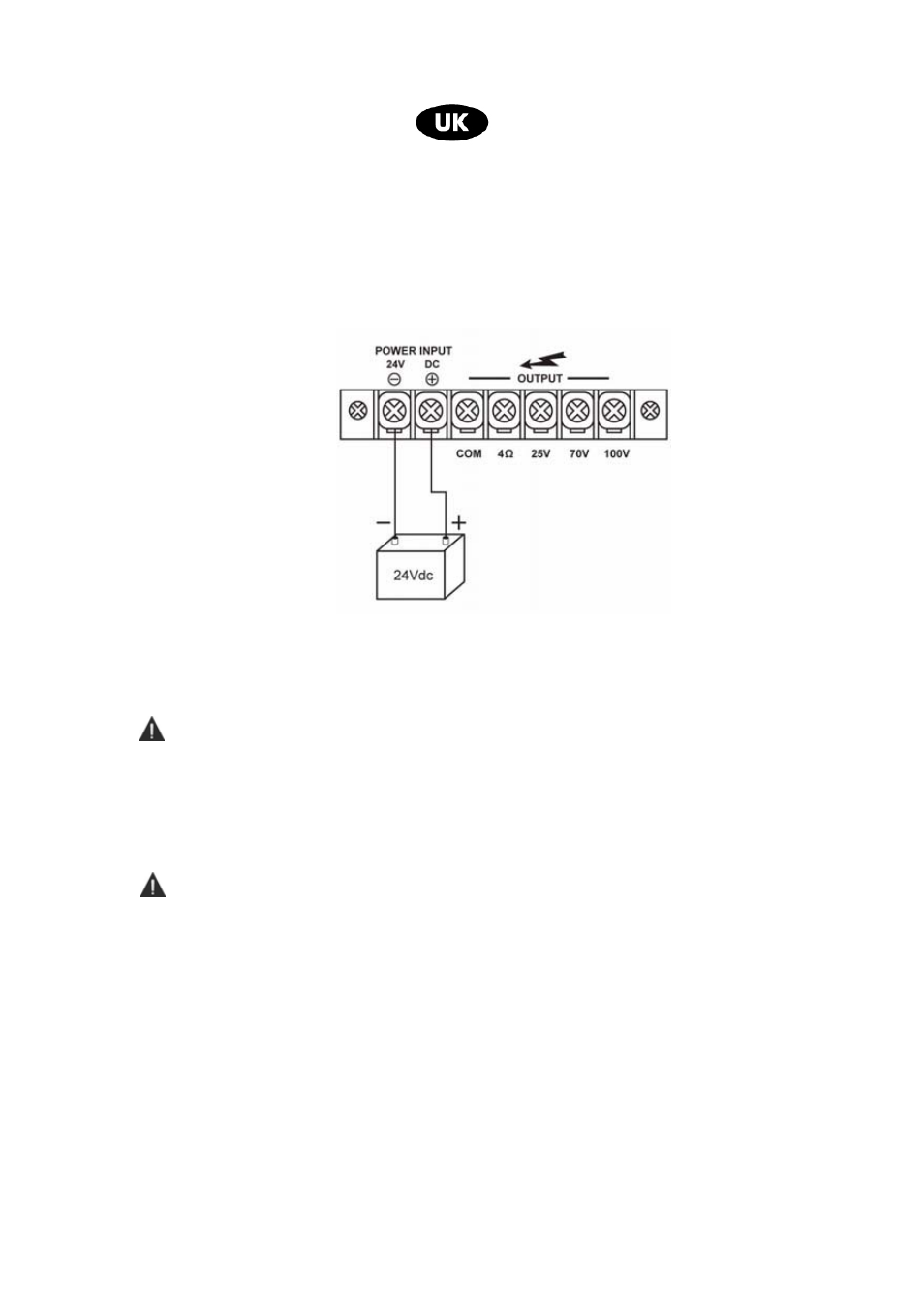

These two terminals allow the unit to be DC powered by an external
power source (i.e. 24V generator or battery). In case of AC power
fault or black out, the unit will be powered by 24 V DC, with automatic
and silent switchover to backup power.
• AC power IEC socket.
This IEC socket is intended to connect AC linecord to the AC outlet
(fig. 2 ref. 6)
.
Attention
Before connecting the AC linecord to the unit, please control that AC
power selector (fig. 2 ref. 1) matches the outlet AC power.
2. Output connections
Attention
To prevent the risk of electric shock, never touch amplifier outputs
when the amplifier is turned on.
• Speakers connection.
To access to the speaker connection terminals (fig. 2 ref. 8) remove
the protection cover unscrewing the screws.
This unit can be used both with constant impedance speakers (4Ω)
and with constant voltage speakers (25V, 70V, and 100V). Make
connections applying following instructions.
