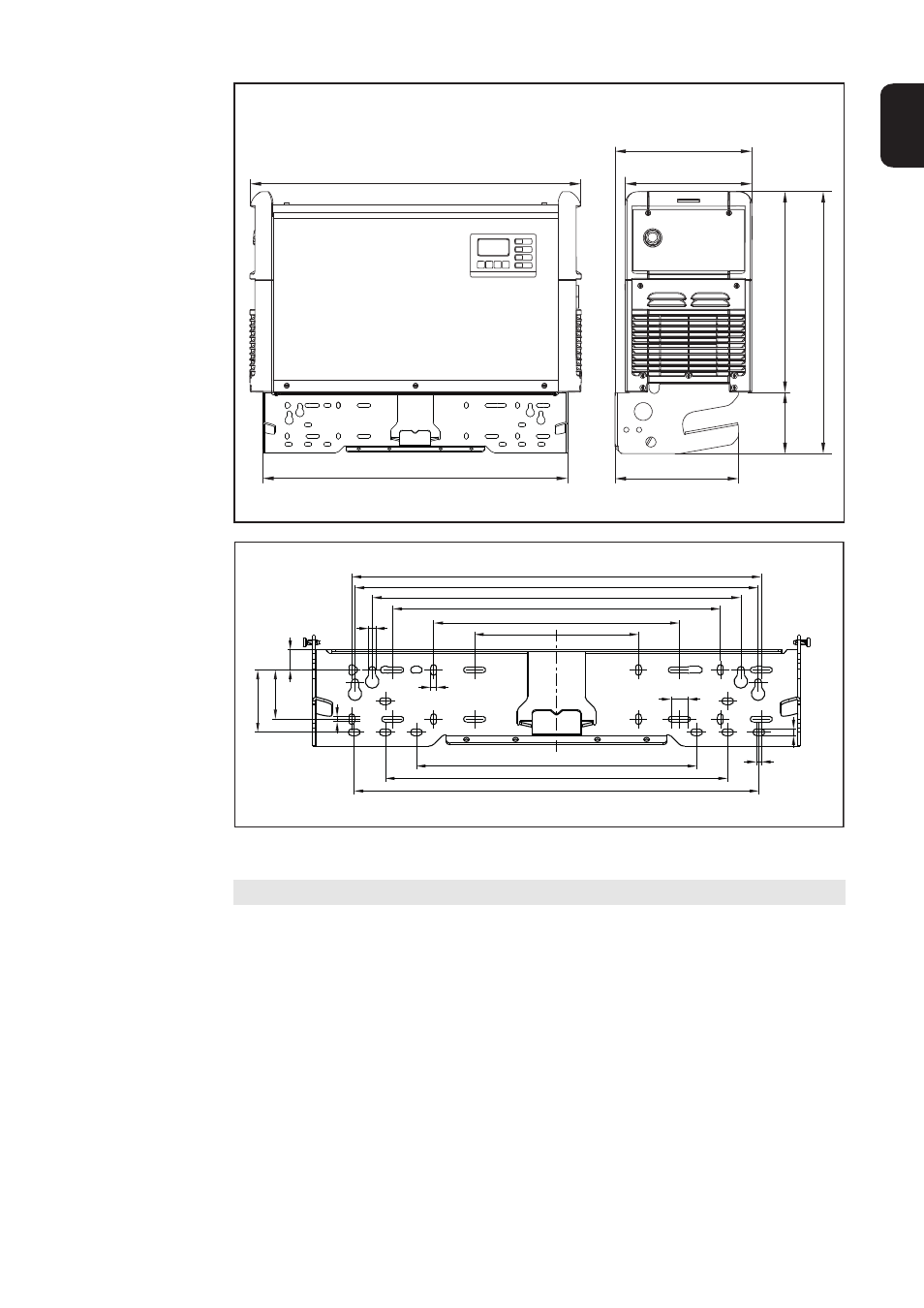

Schema di foratura
16 kW
585 mm (23.03 in.)
247 mm
(9.72 in.)
11
6
m
m
(4.57 in.)
392 mm (15.43 in.)
508 mm (20 in.)
647 mm (25.47 in.)
267 mm (10.51 in.)
241 mm (9.49 in.)
342 mm (13.46 in.)
418 mm (16.46 in.)
494 mm (19.45 in.)
500 mm (19.69 in.)
492 mm (19.37 in.)
450 mm (17.72 in.)
400 mm (15.75 in.)
300 mm (11.81 in.)
200 mm (7.87 in.)
20 mm (.79 in.)
8.3 mm
(.79 in.)
6 mm
(.24 in.)
7 mm (.28 in.)
8.5 mm
(.33 in.)
6 mm
(.24 in.)
25 mm (.98 in.)
76 mm (2.99 in.)
60 mm
(2.36 in.)
Peso del supporto da parete:
8 kW
2,7 kg (5.95 lb.)
16 kW 3,15 kg (6.49 lb.)
