Rev. 1.04
- 10 -
SRP-350II

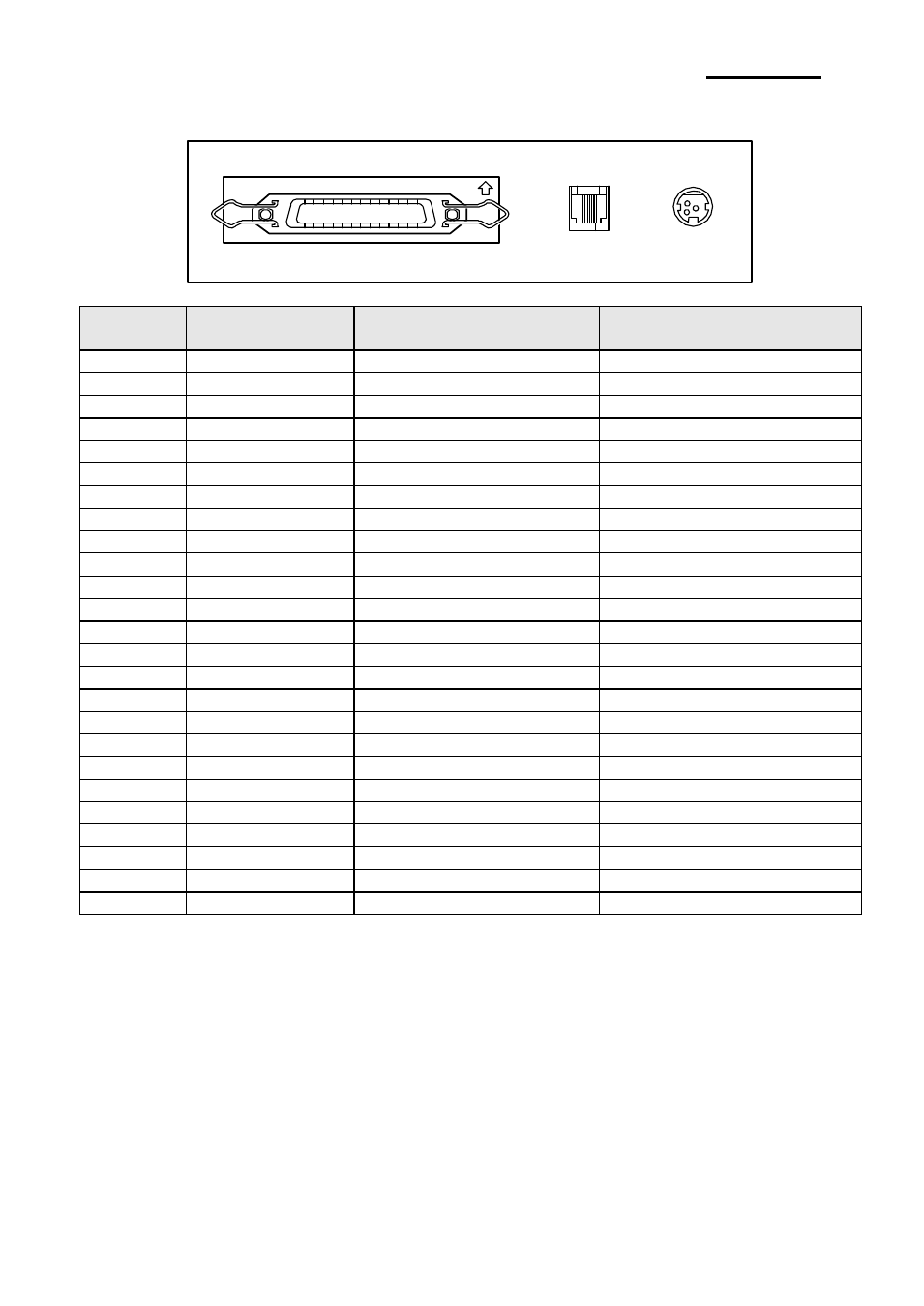

1-2-2 Interfaccia parallela (IEEE1284)
Numero
del pin
Sorgente
Modalità di compatibilità
Modalità mezzo byte
1
Host
nStrobe
HostClk
2
Host / Printer
Data 0 (LSB)
-
3
Host / Printer
Data 1
-
4
Host / Printer
Data 2
-
5
Host / Printer
Data 3
-
6
Host / Printer
Data 4
-
7
Host / Printer
Data 5
-
8
Host / Printer
Data 6
-
9
Host / Printer
Data 7 (MSB)
-
10
Printer
nAck
PtrClk
11
Printer
Busy
PtrBusy /Data3,7
12
Printer
Perror
AckDataReq/Data2,6
13
Printer
Select
Xflag /Data1,5
14
Host
nAutoFd
HostBusy
15
NC
NC
16
GND
GND
17
FG
FG
18
Printer
Logic-H
Logic-H
19~30
GND
GND
31
Host
nInit
nInit
32
Printer
nFault
nDataAvail /Data0,4
33
GND
ND
34
Printer
DK_Status
ND
35
Printer
+5V
ND
36
Host
nSelectIn
1284-Active
TIPO IFG-P
Connettore
dell’espulsione
del cassetto
Connettore
dell’alimentazione
Connettore dell’interfaccia
