4. REAR PANEL FUNCTIONS AND CONTROLS

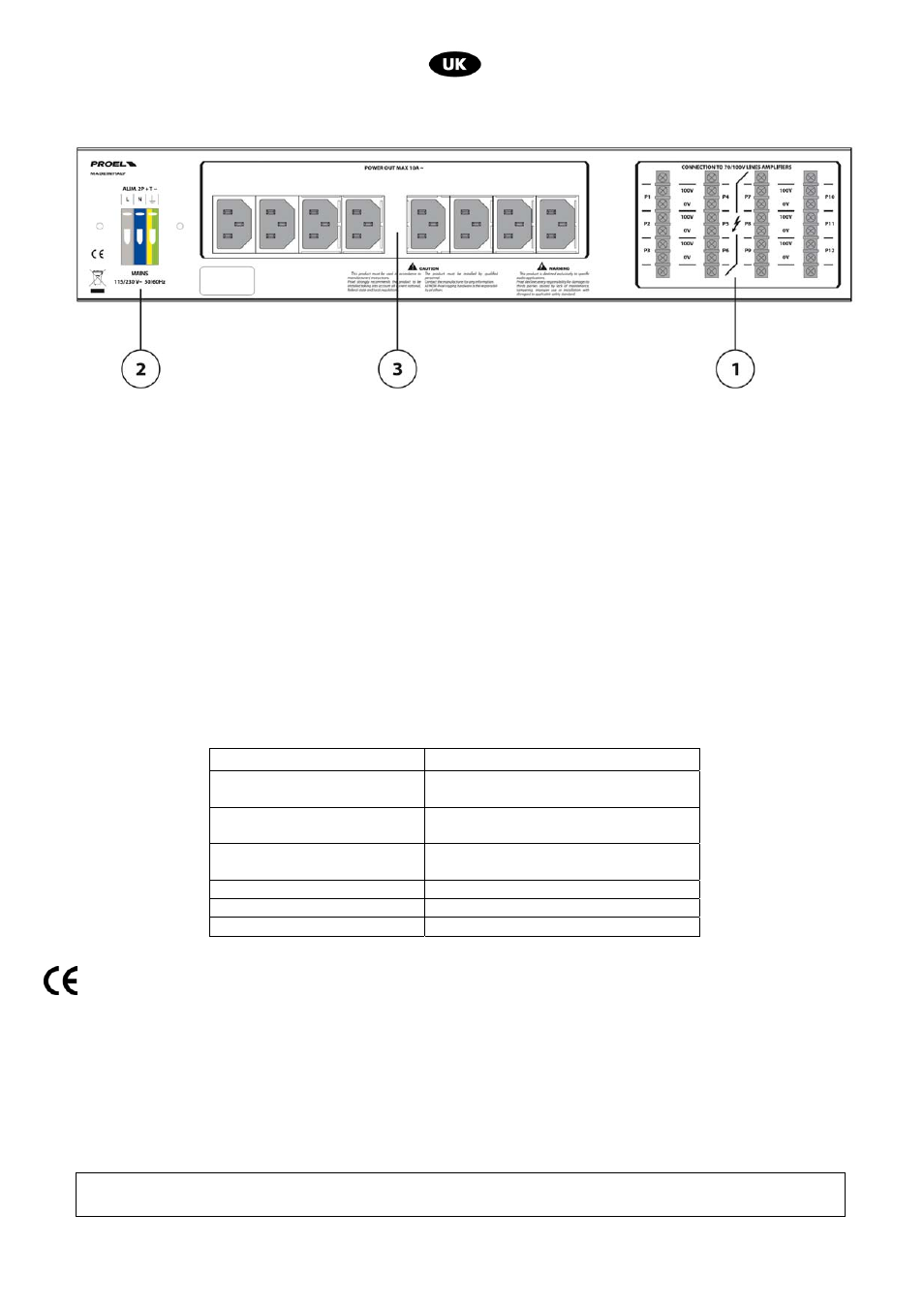

fig.2
1. N°12 output terminals
All these 12 terminals are used for 100V lines connections coming from power output of 12 power amplifiers
to be monitored. Suggested cable 2x1,5mm
2
(cod. HPC610FR)
2. Mains Power input connector (115/230VAC 50/60Hz).
Connect these terminals to the mains.
3. AC Power Output Connectors for connected units (115/230VAC 50/60Hz).
This output is subsequent to main Magneto-thermal switch (fig.1, rif.1) placed in front panel.
5. PACKAGE CONTENTS
• ACM12
• Instruction
Manual
6. TECHNICAL FEATURES
This product complies with Directive 89/336/EEC (Electromagnetic Compatibility)
and later changes 92/31/EEC and 93/68/EEC, according to the following standards:
EN 50082-1:1997, EN 55013:1990, EN 55020:1994
furthermore, it complies with Directive 73/23/EEC (Low Voltage)
and later changes 93/68/CEE, according to the following standard:
EN 60065:1998
Model ACM6
Main switch 16A Magneto-thermal switch
(115/230VAC 50/60Hz)
Multiple socket distribution 8 output AC power socket
(115/230VAC 50/60Hz)
Monitoring 12-position selector for 100V signal
with volume control and speaker
Dimensions (WxHxD) 483 x 88 x 170 mm- 2 rack units 19 ”
Mounting 19” standard rack only
Weight -
Proel SpA maintains a policy of constant research and development, therefore we reserve the right to apply improvements to existing equipment
without prior notice. REV. 01 09/13
