Thank you for choosing this PROEL speaker system. Our products are synonymous with professional competence,
accuracy and high-quality.
2. DESCRIPTION
The CS06EN speaker, designed to be ceiling-mounted, is equipped with a 6,5” wide-band loudspeaker. Its aluminium
cabinet and steel front grille make it ideal for use in locations where compliance to specific fire safety regulations is
required.
Note: The current EN version (compliant with BS5839/EN60849) is equipped with thermal fuse, ceramic terminal board and
fire resistant cables.
This unit complies with CE regulations.
3. INSTALLATION
1. Use anchoring screws to fix the metal bracket supplied on the ceiling (diagram 1, ref.1).
2. Make electric connections on the ceramic terminal board and set operating power as shown below.
Note: It is possible to select the unit's output power by changing the position of the connection on the
transformer.
3. Push the side plates of the bracket (diagram 1, ref. 2) and fix them inside the slots of the loudspeaker.
1
2
2

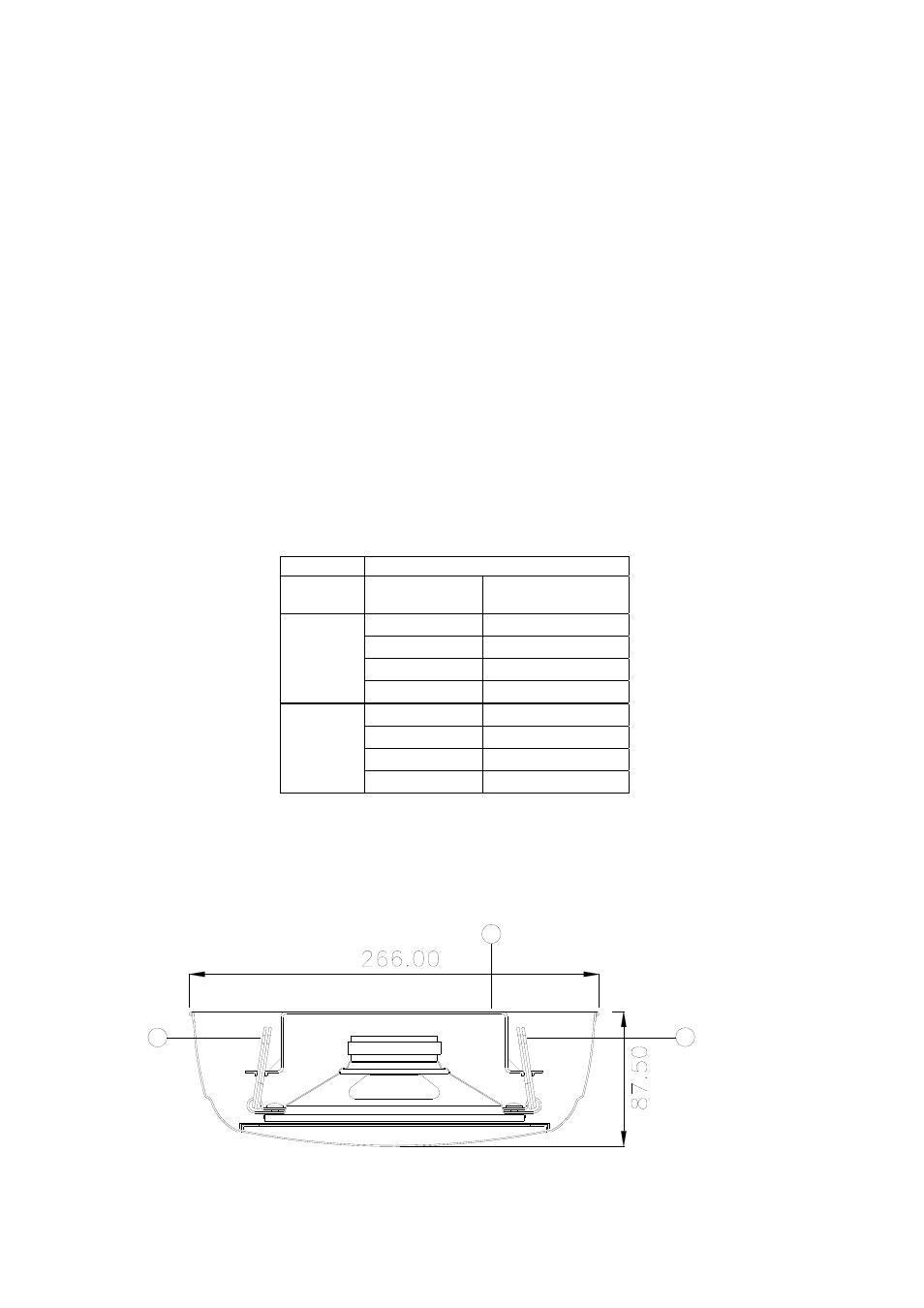

diagram 1
Model
CS06EN
Line
voltage
Impedance Output
power
13.3KΩ
0.75W
6.6KΩ
1.5W
3.3KΩ
3 W
100 V
1.66KΩ
6 W
13.3KΩ
0.37W
6.6KΩ
0.75W
3.3KΩ
1.5W
70 V
1.66KΩ
3W
