Installation

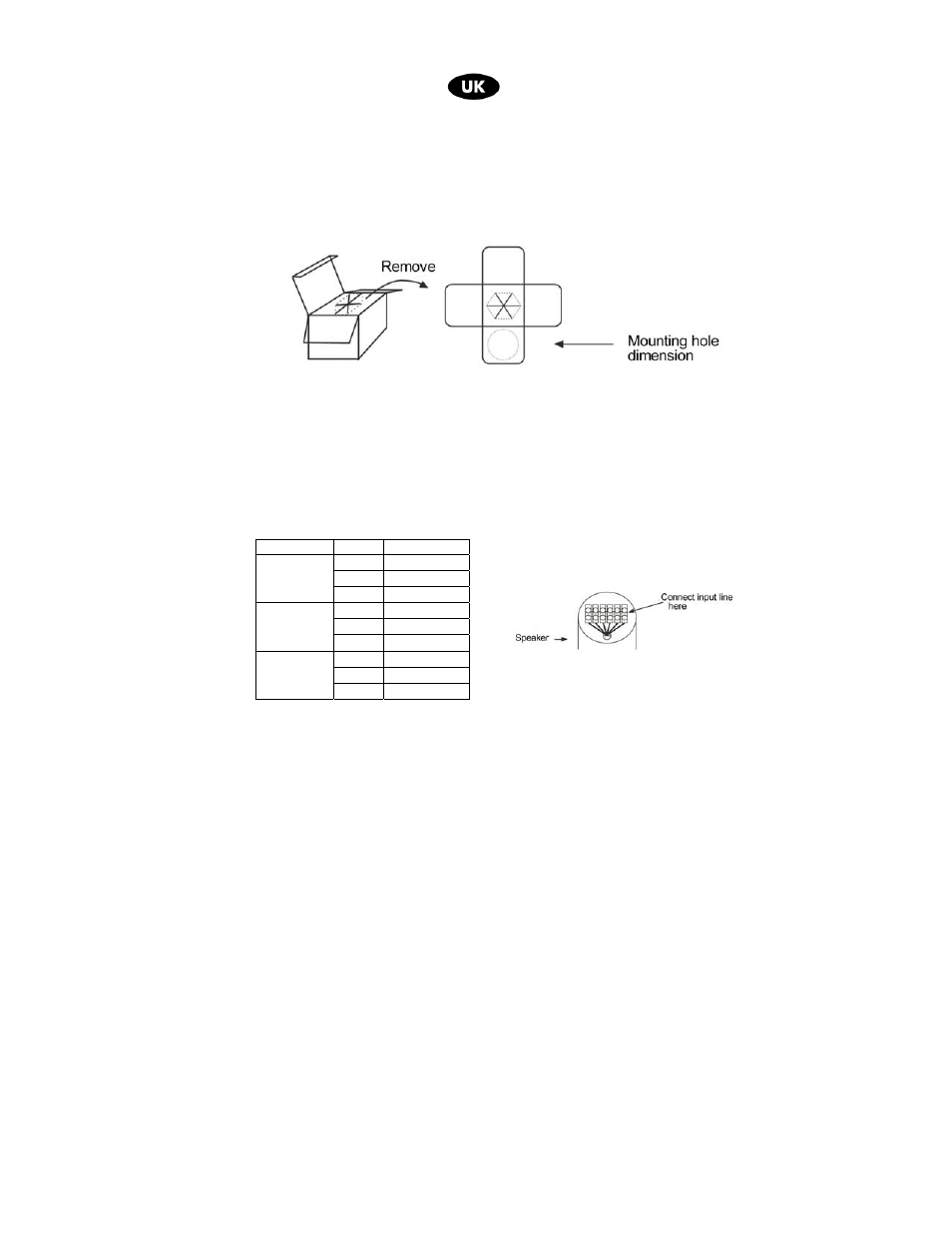

1. A hole should be made in the ceiling panel, in the place where the CS4T
will be installed. Use the cardboard disk provided on the box as template
for the hole.
2. The input voltage and the output power required can be selected by
connecting the input line to the unit properly. For a proper connection,
refer to the instructions shown on the unit or to the following table:
3. Once the electrical connection has been carried out, press in side spring
wings and insert the CS4T unit in the hole made previously, then release
the spring wings, which will firmly support the whole apparatus.
Line voltage Imp. Output power
5,7 K Ω 1,75 W
2,8 K Ω 3,5 W 100 V
1,4 K
Ω 7 W
2,8 K
Ω 1,75 W
1,4 K
Ω 3,5 W 70 V
700
Ω 7 W
1,4 K
Ω 1,75 W
700
Ω 3,5 W 50 V
357
Ω 7 W
