PART 2 | 9. SUSPENDED CONFIGURATIONS
TTL C4-A, TTP C4-A, TTW C4-A
TTx C4-A models can be suspended with the use of their specific flybar
FLY BAR FL-B H TT 4
�
To link the
LINK BAR FL-B LINK TT4
to the speakers, simply proceed like linking two speakers: raise the lateral bracket on one speaker and insert
it to the corresponding seat on the LINK BAR; then insert the lower lateral bracket of the LINK BAR into its seat on the lower speaker� Secure both
brackets by inserting the quick lock pins�The same operation must be done on both sides of the LINK BAR�
IMPORTANT NOTE:
RCF highly reccommends to chek on Easy Focus Software to verify if your configuration is appropriate
for your application.
IMPORTANT NOTE:
The following configurations are valid for TTL C4-A, TTP C4-A, TTW C4-A only.

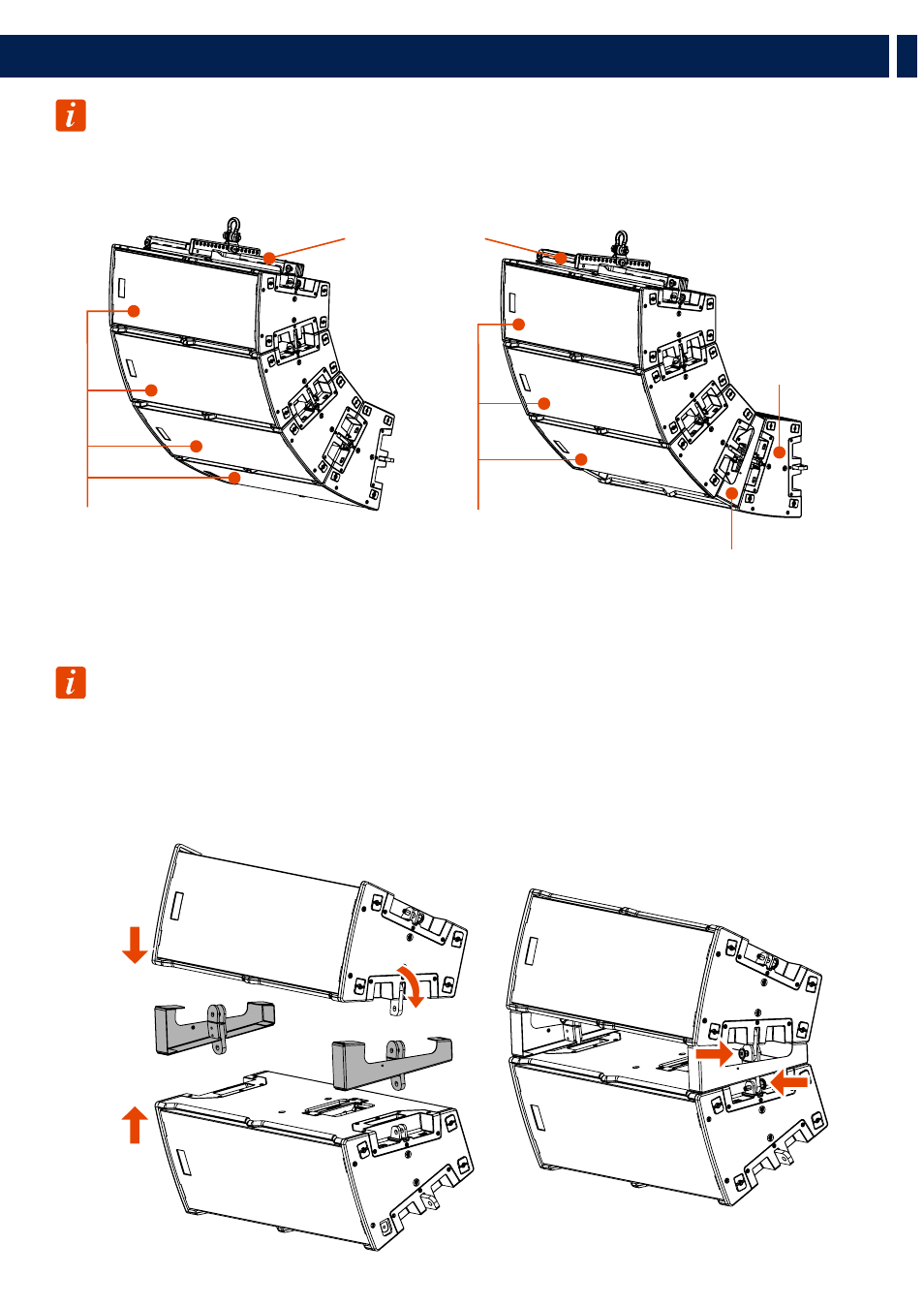

With the use one single flybar it is possible to
suspend up to 4 modules; each one of the can
either be a
TTL C4-A
or a
TTP C4-A
(TTW C4-A
not reccommended in this configuration)�
The specific accessory
LINK BAR FL-B LINK TT 4
must be placed between the third and the fourth
speaker only when a
TTW C4-A
is placed as last
speaker�
TTW C4-A
FLY BAR FL-B H TT 4
TTL C4-A
or
TTP C4-A
TTL C4-A
or
TTP C4-A
