Thank you for choosing this Proel product and for trusting our brand, which strives to be synonymous with
professionalism, precision, high quality and reliability. All of our products comply with EC regulations regarding audio
equipment for continuous use.
2. DESCRIPTION
R88 is a wall-mounted remote control to be combined with a MATRIX88 unit in the audio zone to which it is
assigned. R88 controls the volume and the remote selection of 8 music programs, plus the OFF position and the Local
Channel.
The remote control panel features a LED display that shows which source is selected. The arrows scroll up and
down the audio input channels and the 8 labels can be customized by the user to identify the sources. A UTP CAT5
cable provides power to the panel from the matrix if the cable run between the two is no more than 50 m. Whenever the
cable length is longer than 50 m, an additional + 24 V DC power supply will be needed.
A wall-mounting metal box for R88 is available.
Product complies with CE regulations
3. FRONT AND BACK PANEL

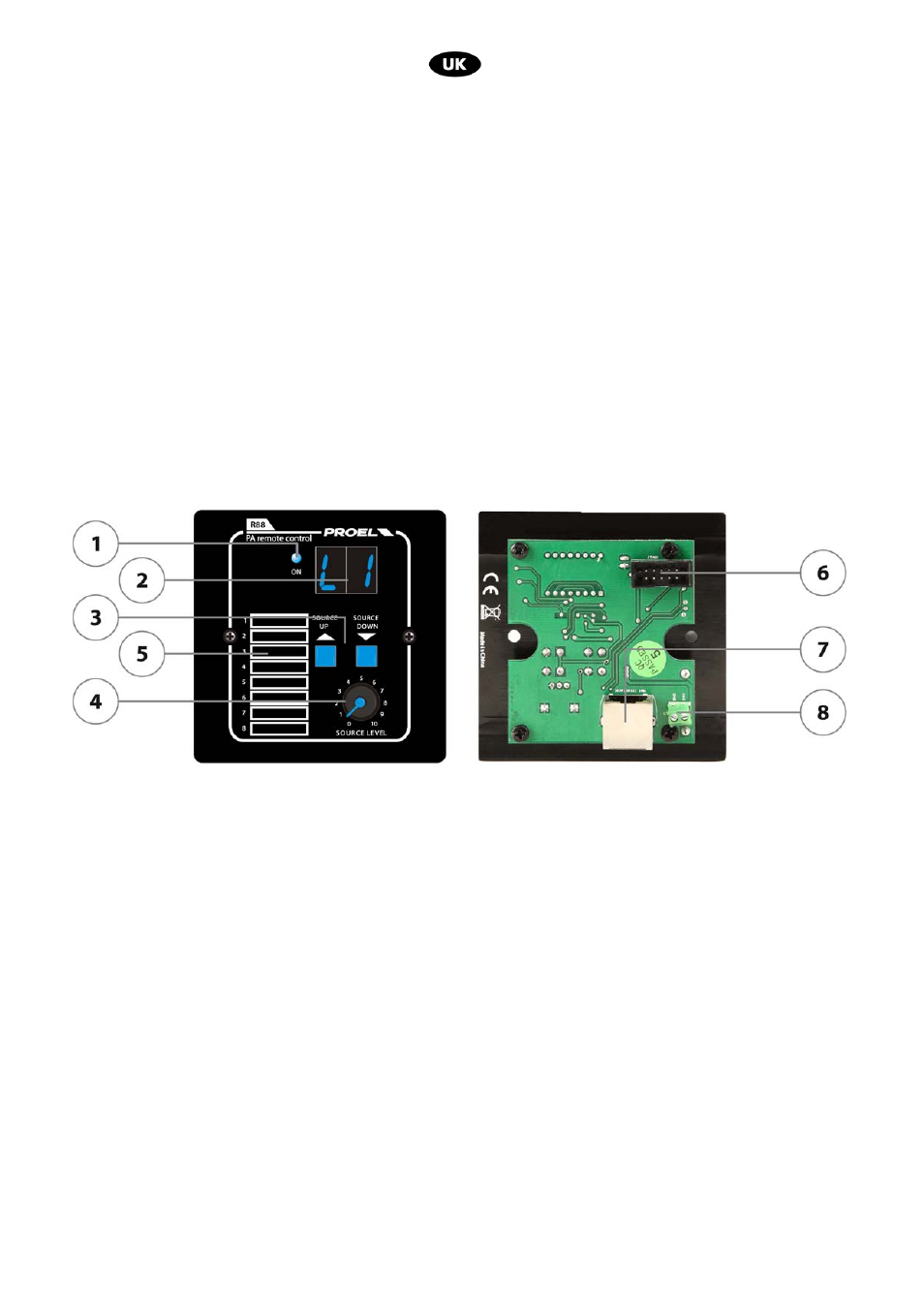

fig.1
1. ON/OFF Indicator
The LED indicator lights up when the unit is ON
2. Source Channel Display
It displays source channels from 01 to 08, Local Input L and the OFF position (no audio source selected)
3. SOURCE UP & SOURCE DOWN
These two buttons scroll up or down the audio source input channels 01 to 08, to the local input to the OFF
position
4. SOURCE LEVEL
This ten-position control adjusts the output volume of the selected source
5. Labels
The labels identifying the audio sources can be printed out by the user
6. JTAG Connector
Used for factory setup
7. RJ45 Communication Port
The RJ45 port is used to connect the control panel to MATRIX88, which also powers the panel if it is
connected to the Matrix by 50 m or less of CAT5 cable. Connect the MATRIX88 ZONE REMOTE CONTROL
to this port. Each remote control operates exclusively within the audio zone to which it is connected. For
example: if you connect ZONE REMOTE CONTROL 4 it will work only within Zone 4
