17

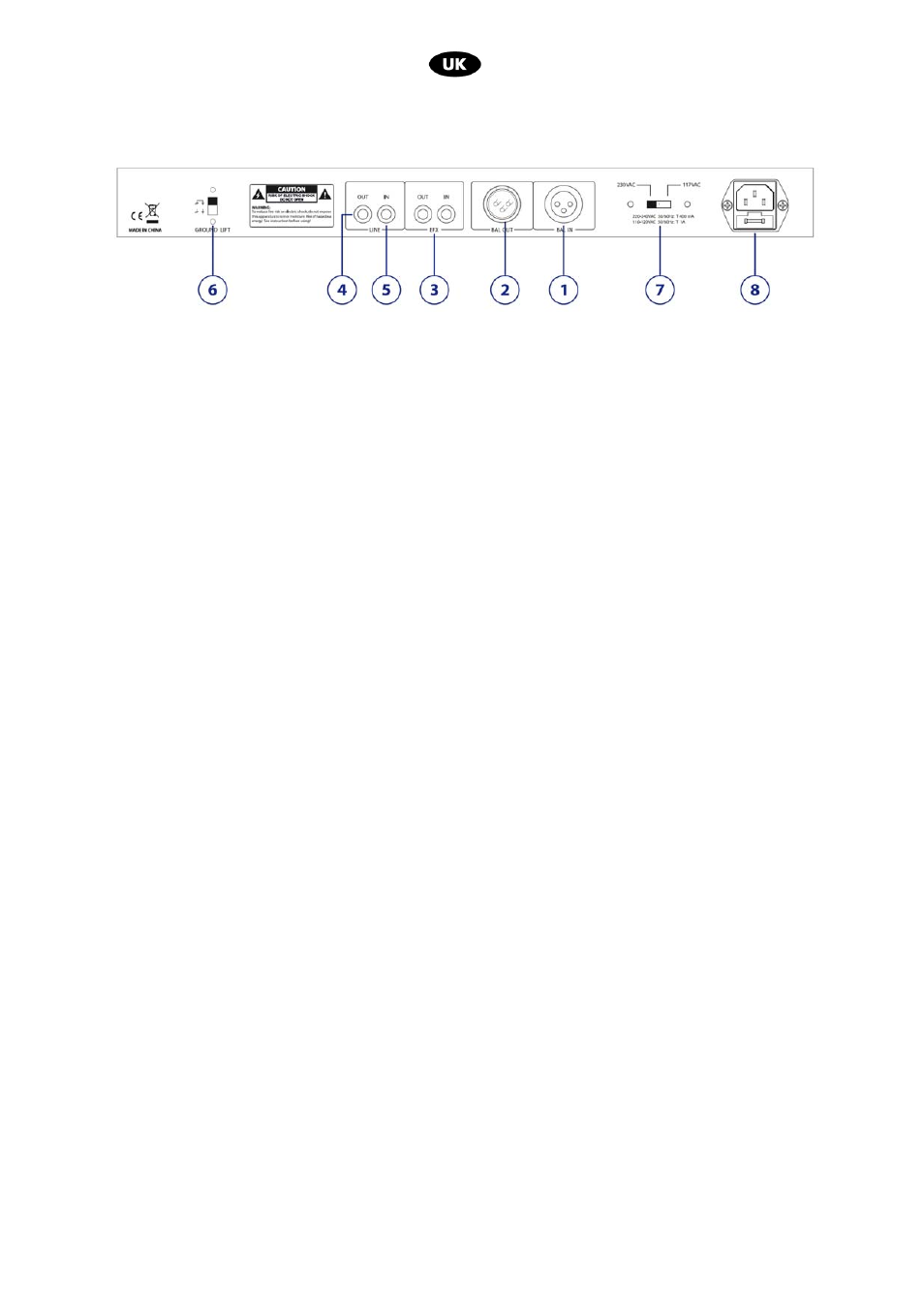

4. REAR PANEL FUNCTIONS AND CONTROLS
fig.2
1. BAL IN
Balanced line Input on XLR female connector.
2. BAL OUT
Balanced line Output on XLR male connector.
3. EFX
Input/output unbalanced for INSERT function. If you are using the conference system mod. CONFD, connect
“EFXOUT” of CONFD to the “EFXIN” of FSHIFT and the “EFXOUT” of FSHIFT to the “EFXIN” of CONFD. If
you are using a multi-channel amplifier, refer to the application diagram in the section "HOW TO USE THE
SYSTEM"
4. LINE INPUT
Unbalanced line input on RCA connector.
5. LINE OUTPUT
Unbalanced line output on RCA connectors
6. Ground Lift switch
This switch lift the ground of the balanced audio inputs from the earth-ground of the device. If you have HUM
noise problem on one or more loudspeaker try to change the position of these switches
7. REC OUT Power supply Selector 230/117Vca 50/60Hz.
8. MAINS INPUT
Use the provided power cable to connect this to a 230/117V AC 50/60 Hz outlet.
